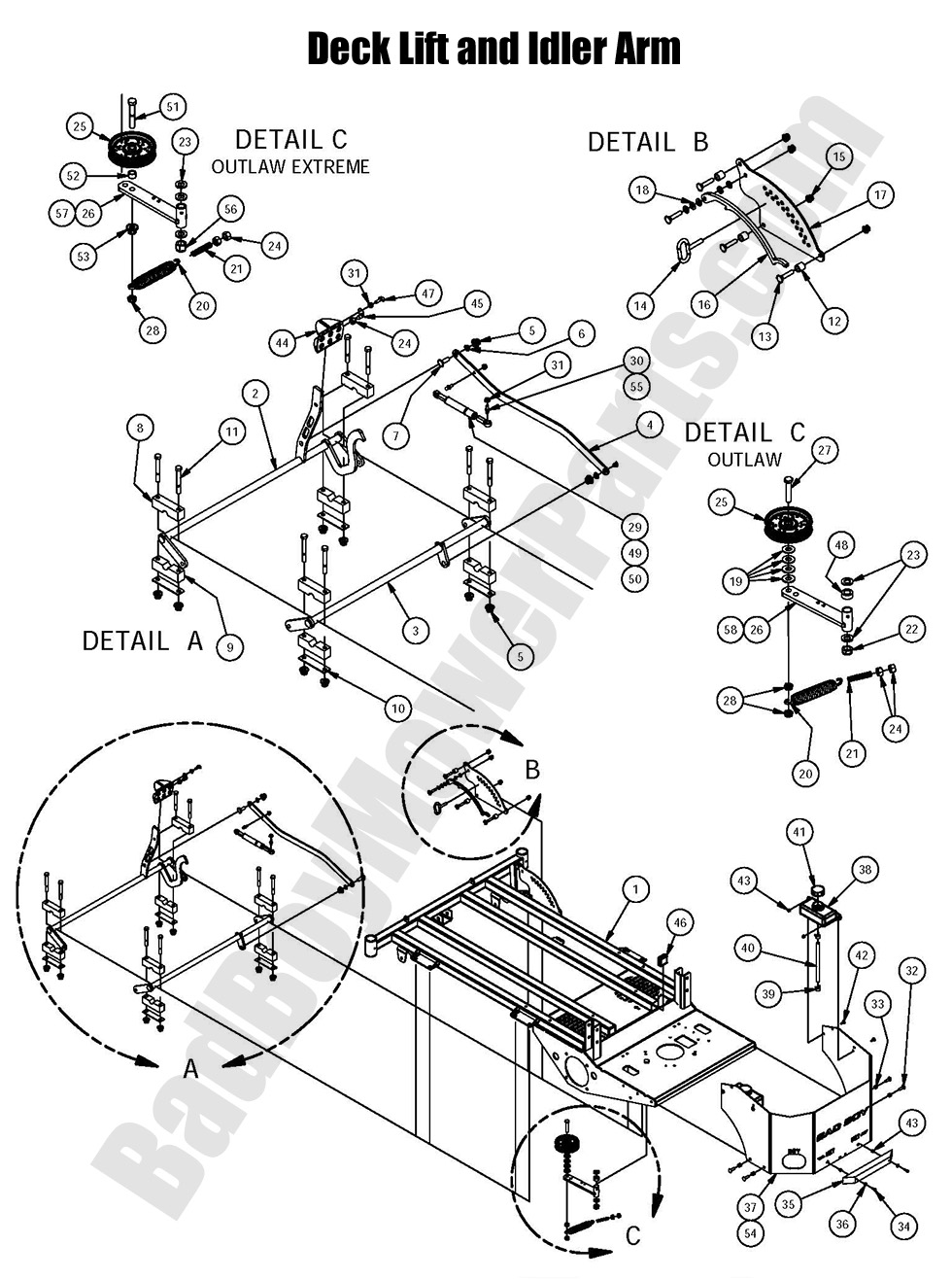

2016 Outlaw & Outlaw Extreme - Deck Lift & Idler Arm Assembly

2016 Outlaw & Outlaw Extreme - Deck Lift & Idler Arm Assembly

Optimize your mowing efficiency with the 2016 Outlaw & Outlaw Extreme Deck Lift & Idler Arm Assembly, a vital component that enables effortless deck adjustments for superior cutting performance. This assembly is precision engineered and built using robust materials to ensure reliable operation in all conditions. It delivers smooth lifting and lowering of the deck while maintaining perfect blade alignment and reducing strain on the drive system. Its innovative design simplifies installation and routine upkeep, saving time during service. Ideal for both commercial applications and home use, this assembly enhances mower versatility and overall reliability. For detailed part diagrams, trusted component options, and clear installation guidance, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for further technical specifications and a complete range of genuine parts that keep your mower running flawlessly. Ensure optimum performance always.

Bad Boy Mower Parts Lookup

2016 Outlaw & Outlaw Extreme - Deck Lift & Idler Arm Assembly
  Position Number SKU Product Title Price
1 070-5370-00 070-5370-00 - 2015-2016 Outlaw/Outlaw Extreme Frame
$1299.99
2 028-6030-00 028-6030-00 - Actuator Bar (Front) (See Models Used On For Detail)
$189.99
3 028-6040-00 028-6040-00 - Actuator Bar (Rear) (See Models Used On For Detail)
$175.99
4 028-6050-00 028-6050-00 - Outlaw Deck Linkage Rod
$28.39
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 032-3000-00 032-3000-00 - Actuator Bar Bushing
$2.99
7 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
8 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
9 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
10A 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
10 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
11 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
12 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
13 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
14 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
15 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
16 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
17 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
18 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
19 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
20 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
21 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
22 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
23 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
24 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
25 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
26 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
27 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
28 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
29 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
30 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
31 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
32 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
33 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
34 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
35 029-7037-00 029-7037-00 - 14" Bumper
$42.79
36 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
37 026-2180-00 026-2180-00 - Outlaw/XP Rear Plate (See Models Used On For Details)
$209.99
38 067-8085-00 067-8085-00 - Expansion Tank for Outlaw (See Models Used On For Details)
$31.22
39 072-8074-00 072-8074-00 - 5/8" Wire Clamp - Outlaw & Rebel
$4.81
40 051-9000-00 051-9000-00 - 5/8 Braided Hose Priced per Foot
$4.81
41 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
42 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
43 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
44 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
45 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
46 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
47 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
48 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
49 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
50 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
51 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
52 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
54 026-2190-00 026-2190-00 - Outlaw/XP Rear Cover 36 Hp Vanguard (See Models Used On For Details)
$209.99
55 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
56 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
57 039-6945-03 039-6945-03 - Pump Idler Assembly
$53.45
58 039-6945-04 039-6945-04 - Pump Idler Assy-Base Outlaw
$53.45
