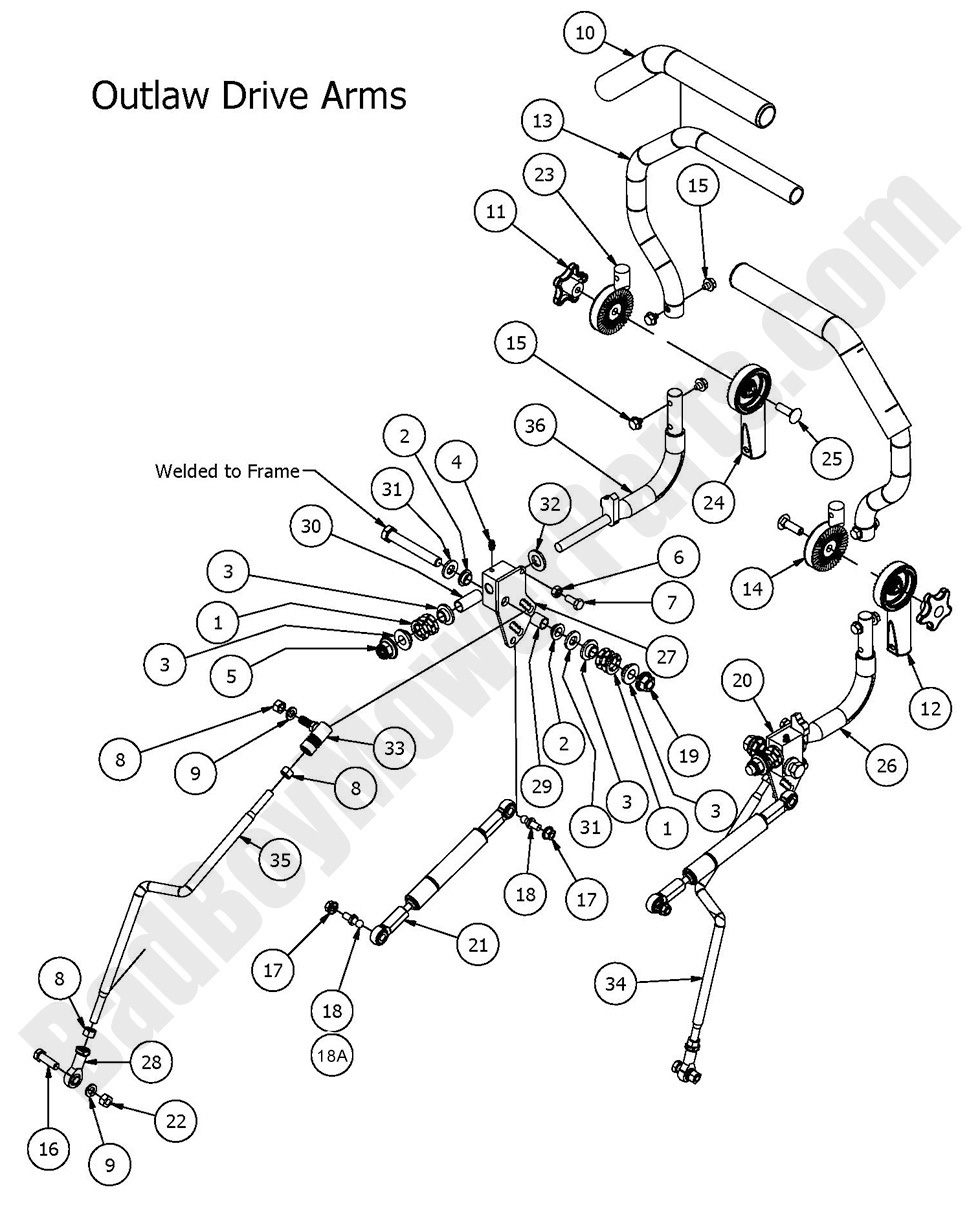

2016 Outlaw & Outlaw Extreme - Drive Arm Assembly

2016 Outlaw & Outlaw Extreme - Drive Arm Assembly

Enhance your mower’s maneuverability with the 2016 Outlaw & Outlaw Extreme Drive Arm Assembly, a precision‐engineered component that transfers power efficiently to ensure smooth directional control. This drive arm is constructed from high‐quality materials and designed for durability in demanding conditions. It provides robust support and precise movement between the engine and wheels, contributing to reliable traction and responsive handling. Ideal for both heavy‐duty commercial mowers and residential lawn care, this assembly reduces wear and tear while optimizing overall performance. Its innovative design simplifies installation and maintenance, saving valuable time during service. For accurate part diagrams, dependable component options, and professional installation tips, please consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available through our trusted online resource. Visit BadBoyMowerParts.com for additional product details and expert guidance to keep your mower operating at peak efficiency every time. Boost performance with unmatched precision.

Bad Boy Mower Parts Lookup

2016 Outlaw & Outlaw Extreme - Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
7 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
8 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
11 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
12 031-9015-70 031-9015-70 - Right Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
13 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
14 031-9016-70 031-9016-70 - Right Upper Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
15 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
16 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
17 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
18A 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
18 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
19 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
20 027-8901-00 027-8901-00 - 2013-2015 ZT/CZT, 2013-2016 Outlaw, 2016 Maverick Drive Lever Housing (Right)
$14.19
21 087-3000-00 087-3000-00 - Steering Damper (obsolete)
use part #087-0001-00
$62.40
22 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
23 031-9017-70 031-9017-70 - Left Upper Steering Arm Adjuster-Black (See Models Used On For Details)
$53.24
24 031-9014-70 031-9014-70 - Left Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
25 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
26 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
27 027-8900-00 027-8900-00 - Drive Lever Housing (Left)2013 cZT, ZT, (obsolete)
use part #031-0017-98
$31.23
28 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
29 032-1010-00 032-1010-00 - Drive Arm Block Sleeve Short -
$5.82
30 032-1020-00 032-1020-00 - Drive Arm Block Sleeve - Long (See Models Used On For Details)
$6.56
31 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
32 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
33 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
34 035-0075-00 035-0075-00 - 2015-2018 Outlaw/Outlaw Extreme Right Push Rod
$26.70
35 035-0050-00 035-0050-00 - 2015-2018 Outlaw/Outlaw Extreme Left Push Rod
$35.43
36 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
