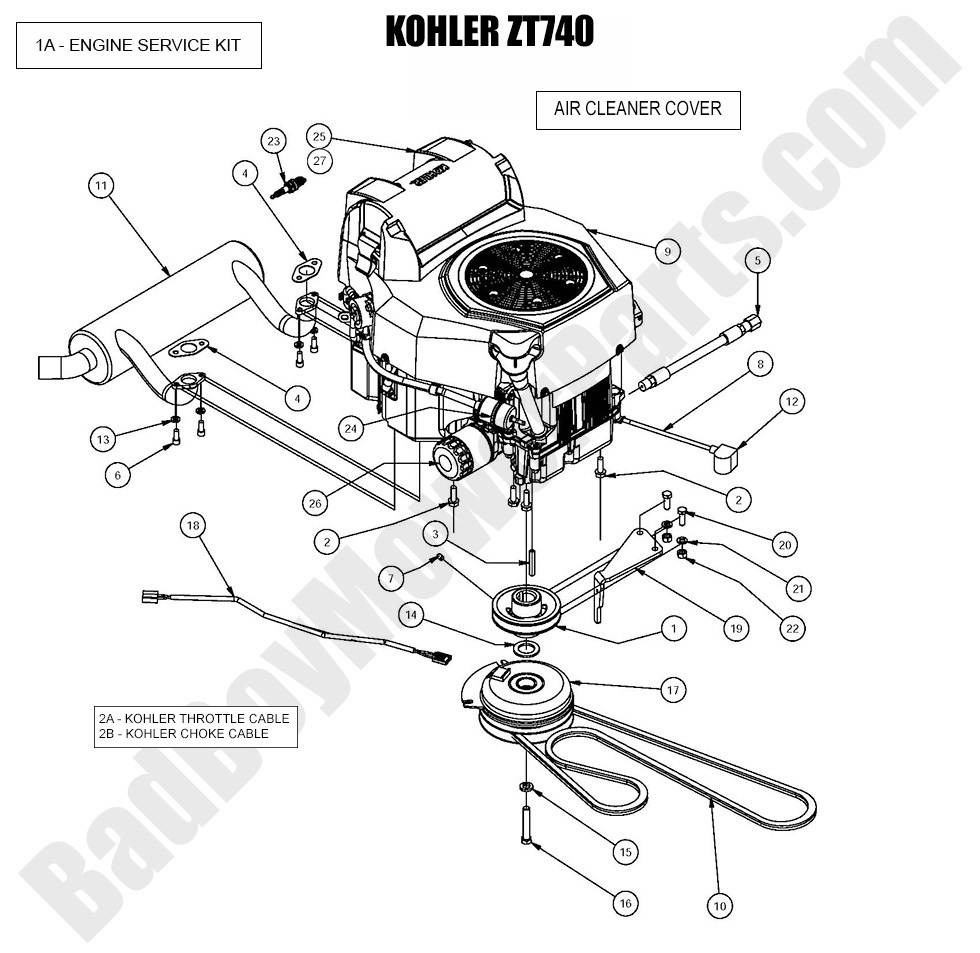

2016 Outlaw & Outlaw Extreme - Engine - Kohler ZT740

2016 Outlaw & Outlaw Extreme - Engine - Kohler ZT740

You have selected the Engine - Kohler 747cc diagram for your 2016 Bad Boy Outlaw & Outlaw Extreme. BadBoyMowerParts.com has the diagrams you need for the 2016 Outlaw & Outlaw Extreme models. Find all of your Bad Boy parts for your 2016 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Outlaw & Outlaw Extreme Engine - Kohler 747cc . If you are not able to find the Bad Boy parts for your 2016 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Outlaw & Outlaw Extreme - Engine - Kohler ZT740
  Position Number SKU Product Title Price
1A 063-2000-07 063-2000-07 - Kohler Confidant (ZT740) Engine Service Kit
$102.57
1 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
3 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
4 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
5 015-5401-00 015-5401-00 - Kohler/Briggs Oil Drain Valve
$35.48
6 018-8067-00 018-8067-00 - 5/16-18 X 3/4 SOCKET C/S
$2.99
7 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
8 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
9 015-2030-00 015-2030-00 - 25hp Kohler-2014 CZT, Oulaw ZT740-3017
$2994.93
10 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
11 015-0065-00 015-0065-00 - 2014-2018 Kohler Outlaw Muffler 747cc
$184.56
12 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
13 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
14 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
15 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
16 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
17 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
18 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
19 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
20 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
22 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
23 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$10.99
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25.1 015-9080-00 015-9080-00 - Air Cleaner Cover Confidant Only
$85.59
25 063-5005-00 063-5005-00 - 25hp Kohler CZT/Outlaw Air Filte
$32.09
26 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$23.53
27 063-5006-00 063-5006-00 - 25hp Kohler CZT/Out Precleaner
$9.47
