2016 Outlaw & Outlaw Extreme - Engine - Kohler ECV860 EFI

2016 Outlaw & Outlaw Extreme - Engine - Kohler ECV860 EFI

You have selected the Engine - Kohler EFI 824cc diagram for your Bad Boy Outlaw & Outlaw Extreme. BadBoyMowerParts.com has the diagrams you need for the 2016 Outlaw & Outlaw Extreme models. Find all of your Bad Boy parts for your 2016 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Outlaw & Outlaw Extreme Engine - Kohler EFI 824cc . If you are not able to find the Bad Boy parts for your 2016 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

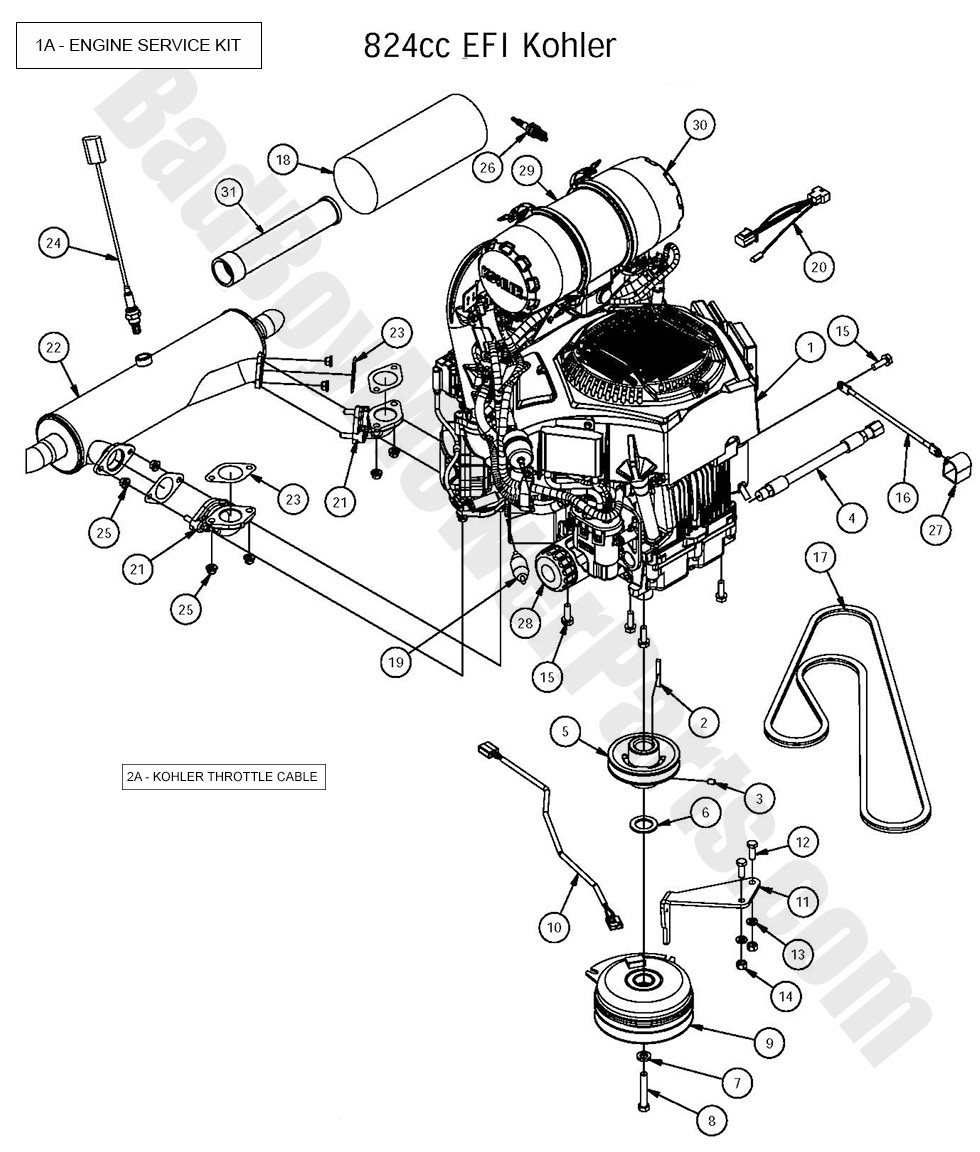

2016 Outlaw & Outlaw Extreme - Engine - Kohler ECV860 EFI
  Position Number SKU Product Title Price
1A 063-2000-18 063-2000-18 - Engine Service Kit For ECV860 & ECV880
$138.99
1 015-0824-00 015-0824-00 - 824cc Kohler-PS-ECV-860-3013
$3850.93
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
3 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
4 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
5 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
6 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
7 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
8 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
9 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
10 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
11 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
12 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
13 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
16 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
17 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
18 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
19 063-5001-00 063-5001-00 - 25/26 HP Koh Fuel Filter
$19.25
20 086-9003-00 086-9003-00 - Harness Adaptor-Kohler 824 EFI
$32.09
21 031-9040-00 031-9040-00 - Cast 90 Elbow
$42.79
22 015-0825-00 015-0825-00 - Exhaust-824cc PS-ECV-860 EFI Kohler
$139.09
23 015-9500-00 015-9500-00 - Exhaust Gasket for 824 EFI Kohler
$10.99
24 015-4100-00 015-4100-00 - O2 Sensor for 824EFI Kohler
$212.96
26 015-8002-00 015-8002-00 - Spark Plug for Kohler ECV860 & ECV880
$14.97
27 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
28 063-5400-00 063-5400-00 - Oil Filter (Long) for Kohler Engines
$20.32
29 015-2720-00 015-2720-00 - 29HP Kohler Air Canister Ass
$267.49
30 015-2704-00 015-2704-00 - 30 Kohler End Cap - New Style
$32.09
31 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
