You have selected the Engine - Vanguard 810cc diagram for your 2016 Bad Boy Outlaw & Outlaw Extreme. BadBoyMowerParts.com has the diagrams you need for the 2016 Outlaw & Outlaw Extreme models. Find all of your Bad Boy parts for your 2016 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Outlaw & Outlaw Extreme Engine - Vanguard 810cc . If you are not able to find the Bad Boy parts for your 2016 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

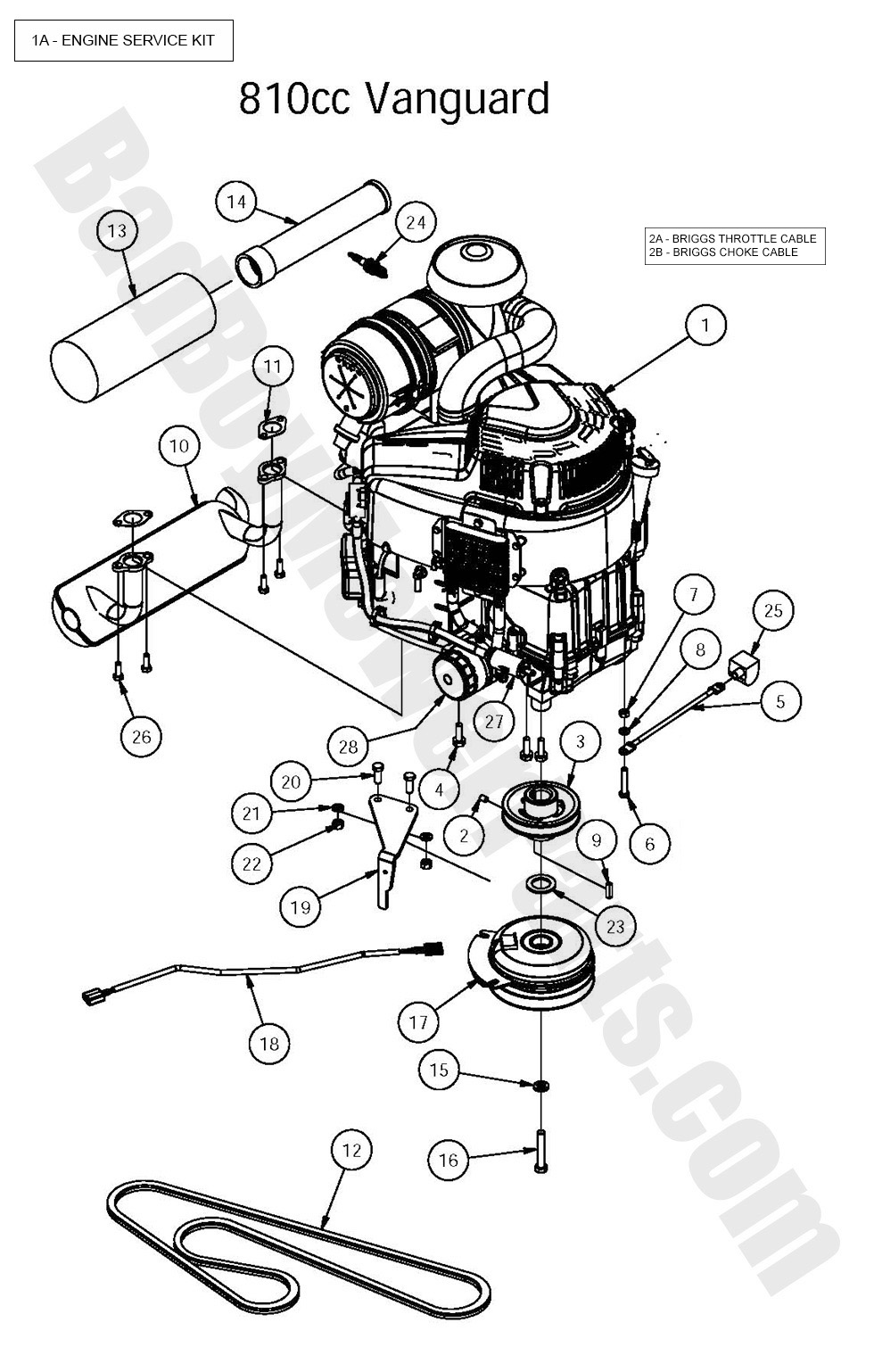

2016 Outlaw & Outlaw Extreme - Engine - Vanguard 810
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1 015-0810-00 015-0810-00 - 810cc Vanguard Engine 26hp
$2134.65
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
4 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
5 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
6 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
10 015-0027-00 015-0027-00 - Exhaust Briggs 26/27/30hp (See Models Used On For Detail)
$212.96
11 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
12 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
13 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
14 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
15 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
16 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
17 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
18 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
19 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
20 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
22 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
23 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
24 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$10.99
25 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
26 018-0017-00 018-0017-00 - Torx Bolt-Exhaust-23hp Vanguar
$5.82
27 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
28 063-8018-00 063-8018-00 - Oil Filter
$21.39
