2016 Outlaw & Outlaw Extreme - Engine - Vanguard 993

2016 Outlaw & Outlaw Extreme - Engine - Vanguard 993

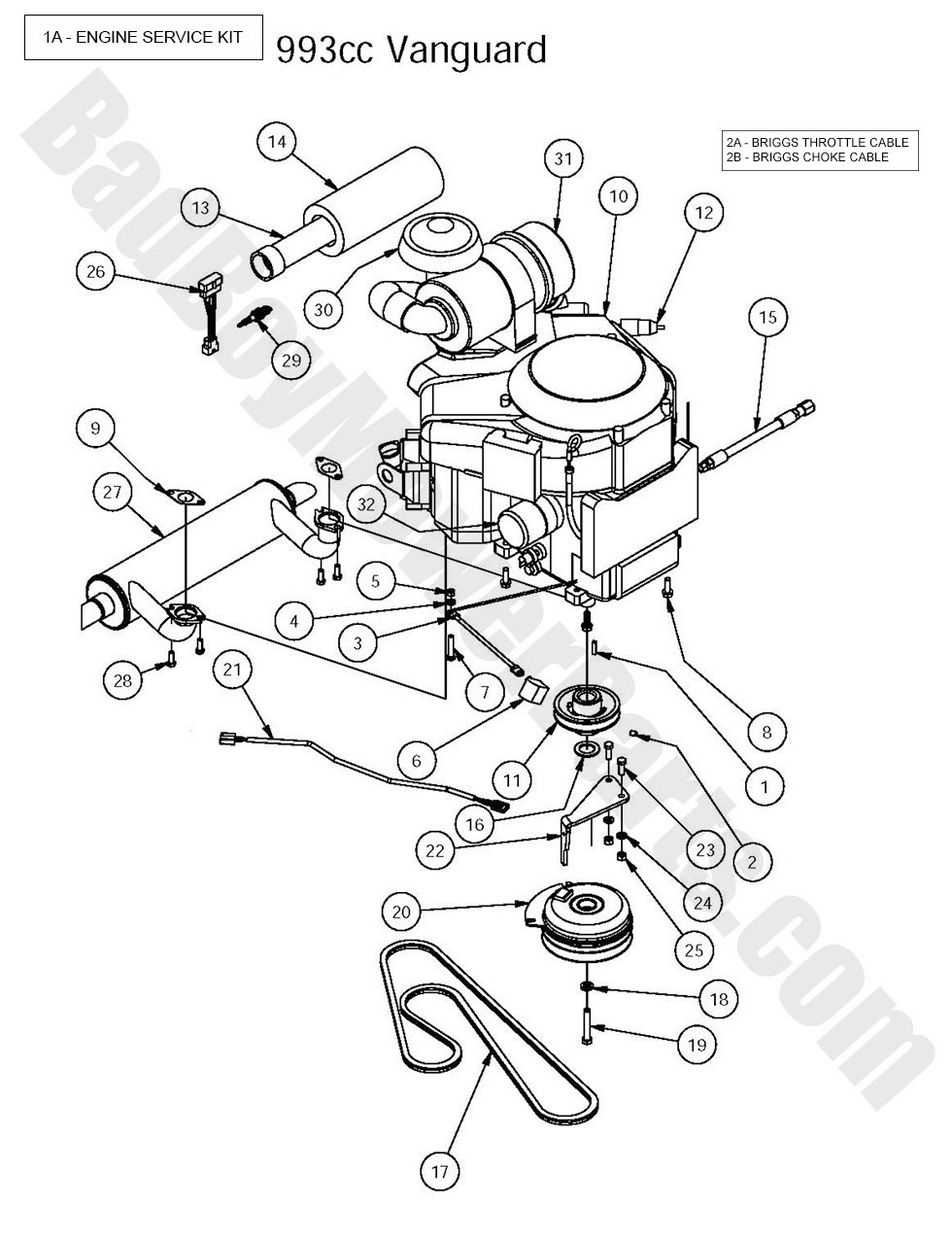

You have selected the Engine - Vanguard 993cc diagram for your 2016 Bad Boy Outlaw & Outlaw Extreme. BadBoyMowerParts.com has the diagrams you need for the 2016 Outlaw & Outlaw Extreme models. Find all of your Bad Boy parts for your 2016 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Outlaw & Outlaw Extreme Engine - Vanguard 993cc . If you are not able to find the Bad Boy parts for your 2016 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Outlaw & Outlaw Extreme - Engine - Vanguard 993
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
3 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
4 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
6 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 015-0025-00 015-0025-00 - Exhaust Gasket for Vanguard (obsolete)
use part #015-2708-00
$16.04
10 015-3600-00 015-3600-00 - 36hp Briggs Vanguard Engine
$4686.00
11 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
12 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
13 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
14 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
15 051-5402-00 051-5402-00 - 14mm Oil Drain Hose-36hp Vanguard
$31.22
16 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
17 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
18 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
19 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
20 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
21 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
22 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
23 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
25 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
26 086-9001-00 086-9001-00 - Harness Adaptor-36 Vanguard
$35.30
27 015-0049-00 015-0049-00 - Exhaust-36hp Vanguard
$170.24
28 018-0017-00 018-0017-00 - Torx Bolt-Exhaust-23hp Vanguar
$5.82
29 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$10.99
30 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49
31 015-2705-00 015-2705-00 - 30KO pre-2010/26KA complete canis.
$288.89
32 063-8018-00 063-8018-00 - Oil Filter
$21.39
