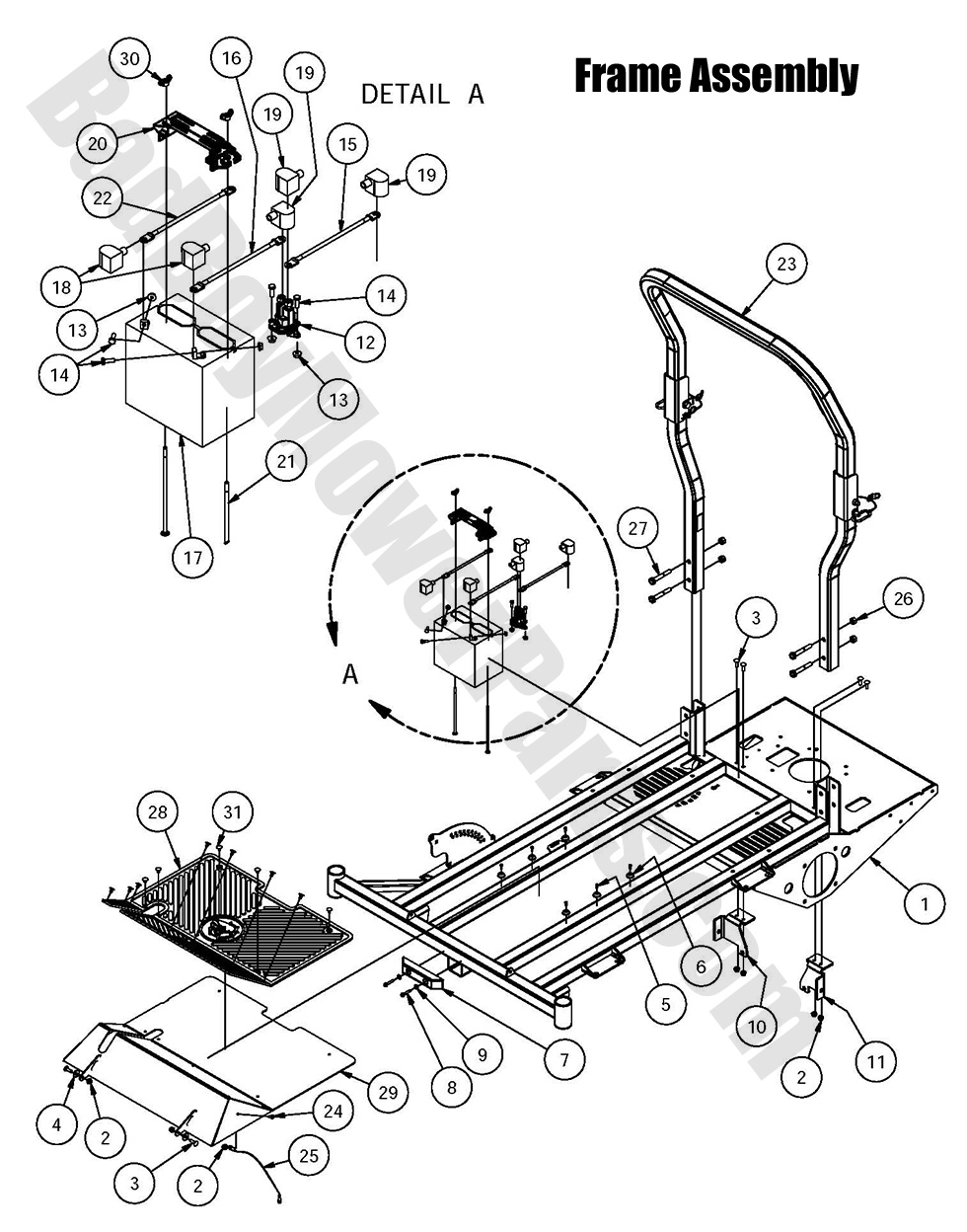

2016 Outlaw & Outlaw Extreme - Frame Assembly

2016 Outlaw & Outlaw Extreme - Frame Assembly

You have selected the Frame Assembly diagram for your 2016 Bad Boy Outlaw & Outlaw Extreme. BadBoyMowerParts.com has the diagrams you need for the 2016 Outlaw & Outlaw Extreme models. Find all of your Bad Boy parts for your 2016 Outlaw & Outlaw Extreme parts here. We are your Bad Boy mower parts source. The Bad Boy parts diagram below is for the 2016 Outlaw & Outlaw Extreme Frame Assembly . If you are not able to find the Bad Boy parts for your 2016 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Outlaw & Outlaw Extreme - Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84

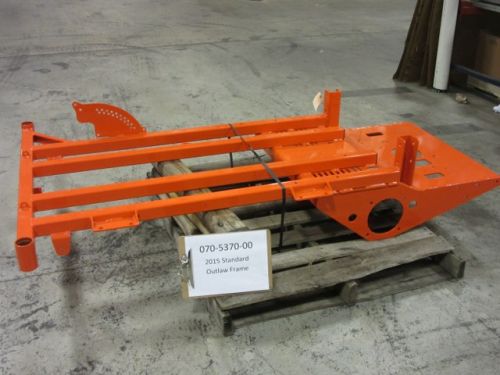

1 070-5370-00 070-5370-00 - 2015-2016 Outlaw/Outlaw Extreme Frame
$1390.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
5 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
6 029-4010-00 029-4010-00 - Button Bumper
$2.99
7 029-7038-00 029-7038-00 - 8 Bumper
$28.32
8 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
9 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99

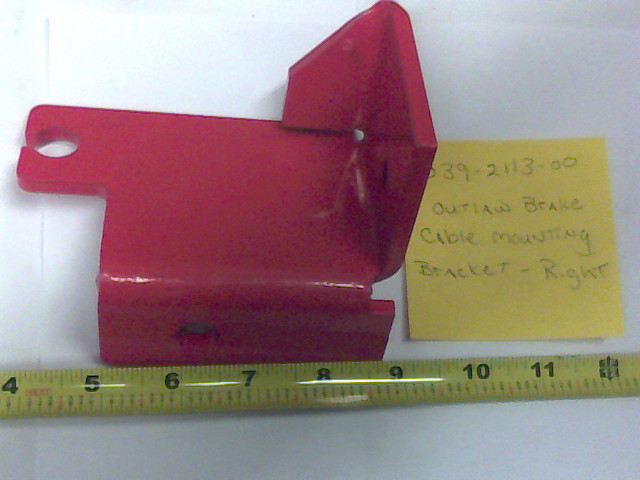

10 039-2113-00 039-2113-00 - Outlaw Brake Cable Mount Bracket (Right)
$16.04

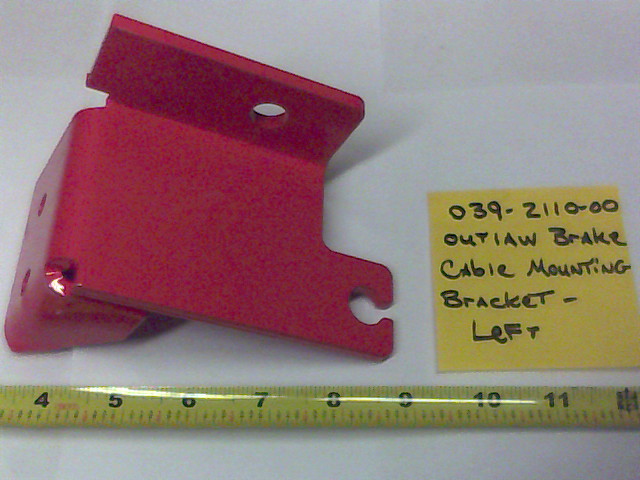

11 039-2110-00 039-2110-00 - Outlaw Brake Cable Mounting Bracket (left)
$16.04
12 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
13 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
14 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99

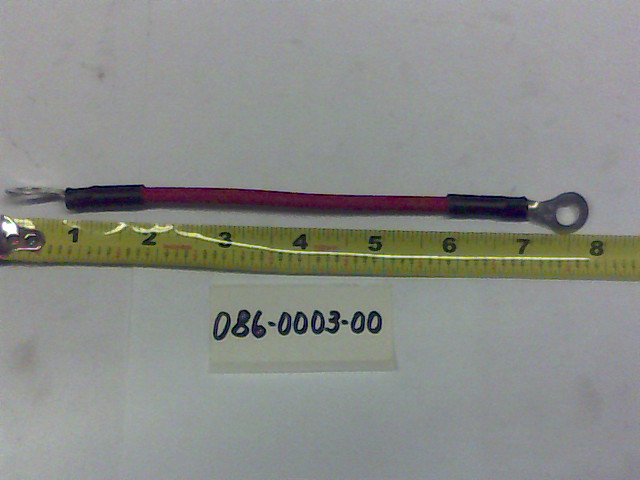

15 086-0003-00 086-0003-00 - Alternator to Starter Cable
$7.79
16 064-5301-00 064-5301-00 - 12 Red Battery Cable
$17.16
18 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
19 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
20 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
21 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
22 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
23 089-0002-00 089-0002-00 - 2x2 Folding ROPS, Fits 2011 Pup & Lightning, 2010-2018 Outlaw & OutlawXP
$852.52

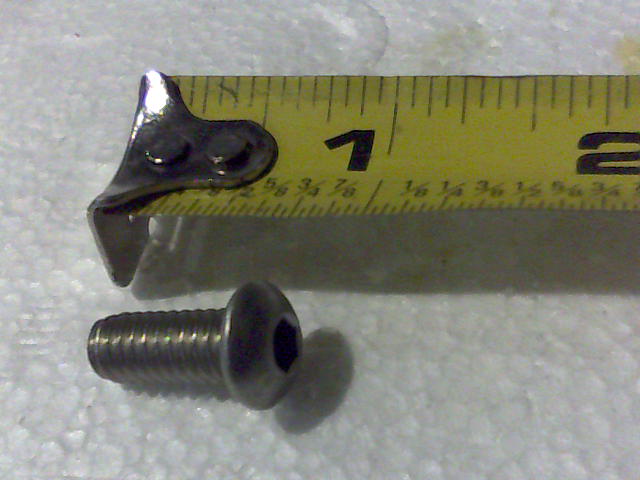

24 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
25 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
26 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
27 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-Grade 5
$2.99

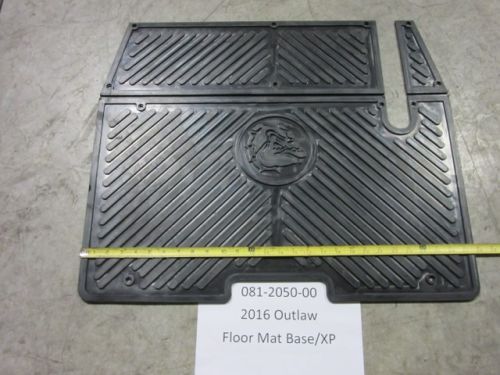

28 081-2050-00 081-2050-00 - 2016-2018 Outlaw/Outlaw XP Floor Mat
$47.03
29 079-3130-00 079-3130-00 - Outlaw Floor Panel
$128.39
30 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99

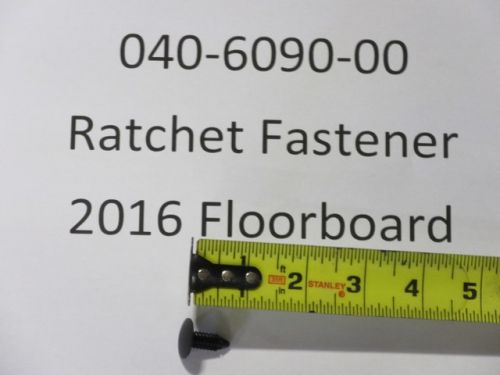

31 040-6090-00 040-6090-00 - Ratchet Fastener-2016 Floorboard (obsolete)
use part #040-6080-00
$2.99
