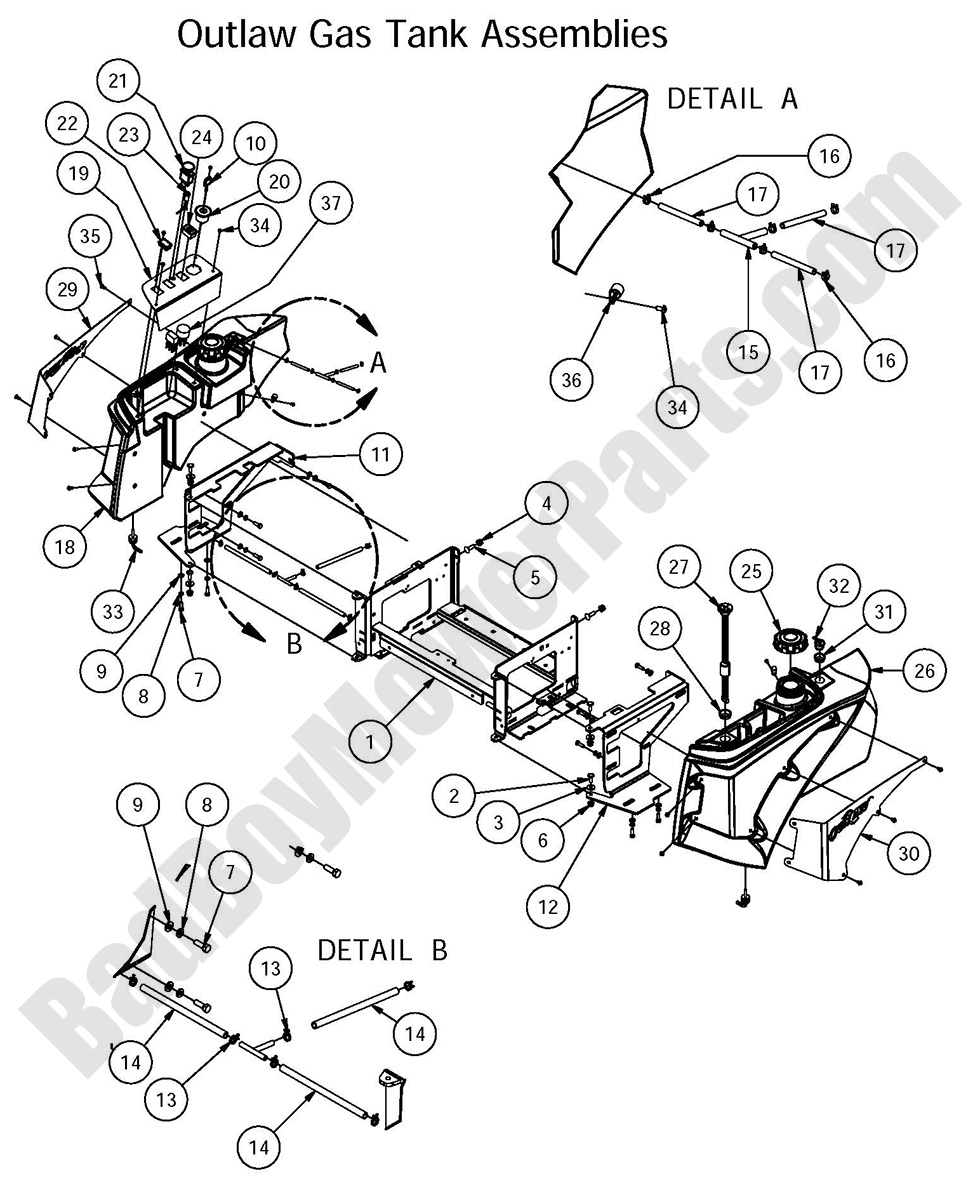

2016 Outlaw & Outlaw Extreme - Gas Tank Assembly

2016 Outlaw & Outlaw Extreme - Gas Tank Assembly

Optimize your mower’s fuel system with the 2016 Outlaw & Outlaw Extreme Gas Tank Assembly, a high‐quality component engineered for secure fuel storage and efficient delivery. Constructed from durable, corrosion‐resistant materials, this gas tank assembly is designed to withstand harsh operating conditions while ensuring consistent fuel flow to the engine. Its innovative design minimizes leakage risks and simplifies integration with your mower’s control systems, enhancing overall performance and reliability. Ideal for both commercial and residential applications, this assembly supports smooth engine operation and reduces maintenance requirements. Detailed installation instructions and maintenance tips are provided to ensure a proper, long‐lasting fit. For accurate part diagrams, dependable replacement components, and expert technical support, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for additional product information and technical insights that keep your fuel system performing optimally every day

Bad Boy Mower Parts Lookup

2016 Outlaw & Outlaw Extreme - Gas Tank Assembly
  Position Number SKU Product Title Price
1 080-5116-00 080-5116-00 - 2016 Outlaw Seat Bracket
$399.99
2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
3 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 042-9000-00 042-9000-00 - Ignition Key
$4.06
11 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
12 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
13 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
14 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
15 073-8068-00 073-8068-00 - Fuel Line T
$9.70
16 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
17 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
18 067-1180-50 067-1180-50 - 2015-2018 Outlaw/XP Right Fuel Tank
$259.99
19 079-3360-00 079-3360-00 - 2015-2018 Outlaw/XP Control Panel
$28.39
20 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
21 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
22 018-1040-00 018-1040-00 - Light Plug
$2.99
23 089-1000-00 089-1000-00 - Oil Light
$12.63
24 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
25 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
26 067-1190-50 067-1190-50 - 2015-2018 Outlaw/XP Left Fuel Tank
$329.99
27 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
28 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
29 079-3280-00 079-3280-00 - 2015-2018 Outlaw/XP Right Tank Panel (Metal)
$26.74
30 079-3281-00 079-3281-00 - 2015-2018 Outlaw/XP Left Tank Panel (Metal)
$26.74
32 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
33 067-6055-00 067-6055-00 - Fuel Tank Hose Nipple (See Models Used On For Detail)
$26.48
34 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
35 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
36 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
37 086-2050-00 086-2050-00 - Wiring Harness 23hp-27hp Briggs and Stratton, 2011-2018 Outlaw
$363.44
