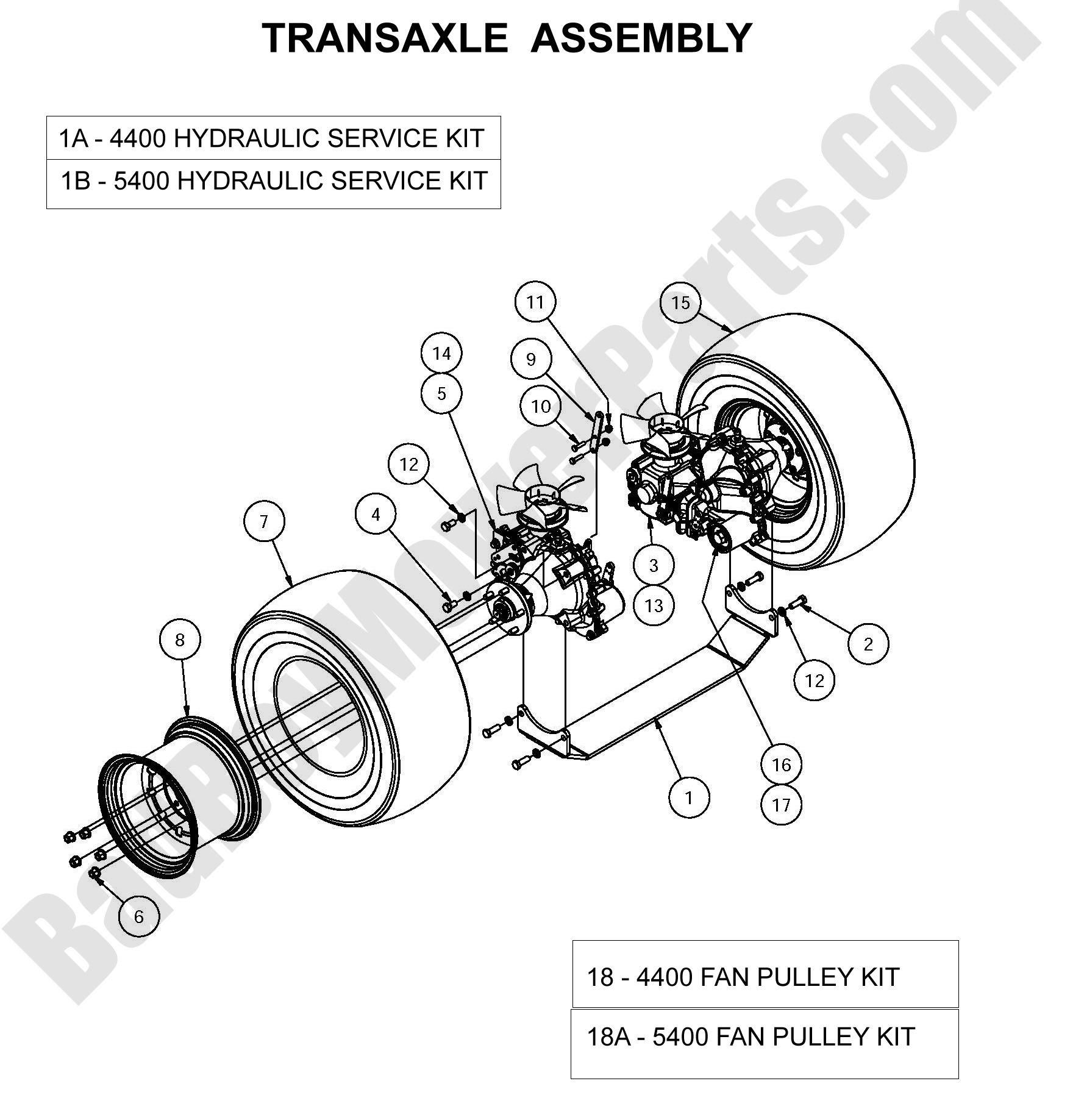

2016 Outlaw & Outlaw Extreme - Transaxle Assembly

2016 Outlaw & Outlaw Extreme - Transaxle Assembly

Optimize power transfer with the 2016 Outlaw & Outlaw Extreme Transaxle Assembly, a critical component engineered to deliver smooth and efficient power distribution from the engine to the wheels. This transaxle assembly is built with high‐quality materials and precision manufacturing techniques to ensure reliable performance under demanding conditions. Its advanced design minimizes energy loss while providing balanced traction and superior handling, making it ideal for both commercial and residential mowers. Rigorously tested for durability, this assembly offers enhanced drive performance and prolonged service life, reducing maintenance requirements and downtime. Detailed assembly instructions and technical documentation accompany this component to assist with installation and troubleshooting. For accurate part diagrams, genuine replacement components, and expert technical support, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for a selection that elevates your mower’s drive system to top performance.

Bad Boy Mower Parts Lookup

2016 Outlaw & Outlaw Extreme - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4050-00 085-4050-00 - Hydro-Gear ZT4400 Hydro Service Kit
$124.44
1B 085-4050-01 085-4050-01 - Hydro-Gear ZT5400 Hydro Service Kit
$159.92
1 203-0100-00 203-0100-00 - Outlaw Transaxle Cross Brace
$64.19
2 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
3 050-7000-00 050-7000-00 - 5400 Transaxle - Left (See Models Used On For Details)
$999.99
4 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
5 050-7001-00 050-7001-00 - 5400 Transaxle - Right (See Models Used On)
$999.99
6 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
7 022-5349-00 022-5349-00 - 24 x 12 - 12 Tire Pro Maxxis (One Tire Only)
$246.99
8 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
9 039-2135-00 039-2135-00 - Brake Adapter Bracket - 4400 Transaxle (See Models Used On)
$7.69
10 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
11 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
12 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
12 018-5007-00 018-5007-00 - 5/16-18 X 3/4 Button Head Sock et C/S 18-8 SS
$2.99
13 050-1000-00 050-1000-00 - 4400 Transaxle-Left
$909.99
14 050-1050-00 050-1050-00 - 4400 Transaxle - Right
$909.99
15 022-4050-00 022-4050-00 - Outlaw Black Assy 24x12-12 (See Models Used On For Details)
$291.99
16 063-1060-00 063-1060-00 - Hydro Filter for Outlaw ZT5400 Transaxles
$35.30
17 063-1070-00 063-1070-00 - Hydraulic Filter for ZT4400 Transaxle
$36.37
18A 050-2073-00 050-2073-00 - Fan/Pulley Kit For ZT-5400 Transaxle (See Models Used On For Details)
$119.62
18 050-1025-00 050-1025-00 - Fan/Pulley Kit For ZT-4400 Transaxle (See Models Used On For Details)
$109.46
