2016 Outlaw XP - 54" Deck Assembly

2016 Outlaw XP - 54" Deck Assembly

Introducing the 2016 Outlaw XP 54" Deck Assembly, a precision-engineered component designed to deliver exceptional cutting performance and long-lasting durability. This deck assembly is built with high-quality materials and advanced engineering to ensure uniform blade contact and a consistently clean cut across the entire 54-inch width. Its robust design minimizes vibration and enhances stability, enabling efficient grass collection and smooth operation even in challenging mowing conditions. Ideal for commercial landscaping as well as residential maintenance, this assembly undergoes rigorous testing to meet strict performance standards. Comprehensive installation instructions and detailed maintenance guidelines accompany the part, ensuring a secure fit and prolonged service life. For accurate schematics, verified parts, and installation expertise, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com to access technical support and ensure your mower achieves optimal results with every cut.

Bad Boy Mower Parts Lookup

2016 Outlaw XP - 54" Deck Assembly
  Position Number SKU Product Title Price

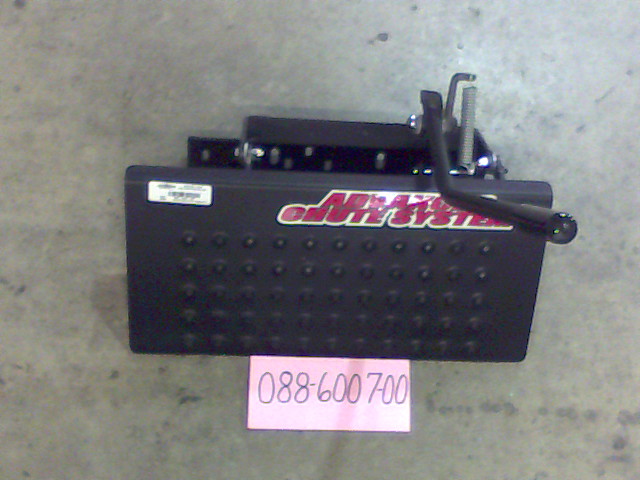

1A 088-6007-00 088-6007-00 - Advanced Chute System for 2010-2018 54" Outlaw Models
$249.00

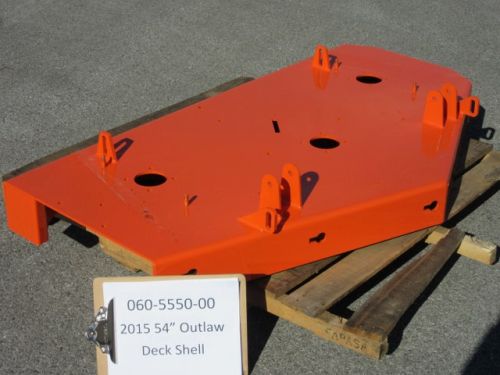

1 060-5550-00 060-5550-00 - 2015-2018 54" Outlaw DeckShell/Hangs with Brackets
$1099.99
2 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
6 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
7 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
8 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
15 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
20 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
21 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
22 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
23.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
23 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
24 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
25 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
26 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
27 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
28 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
29 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
30A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
30 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
31 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
32 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39

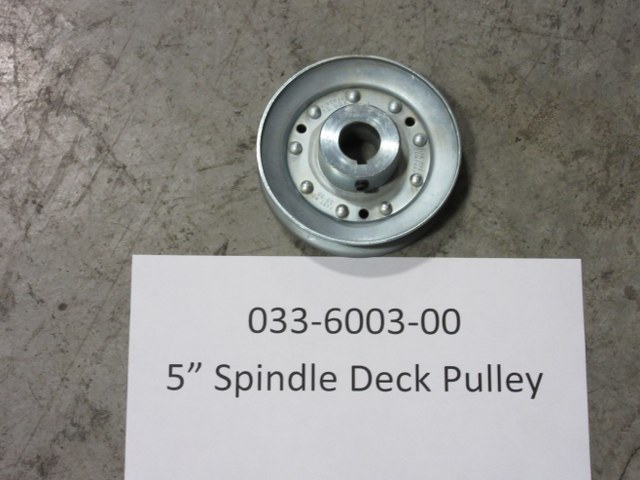

33 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
34 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
35.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99

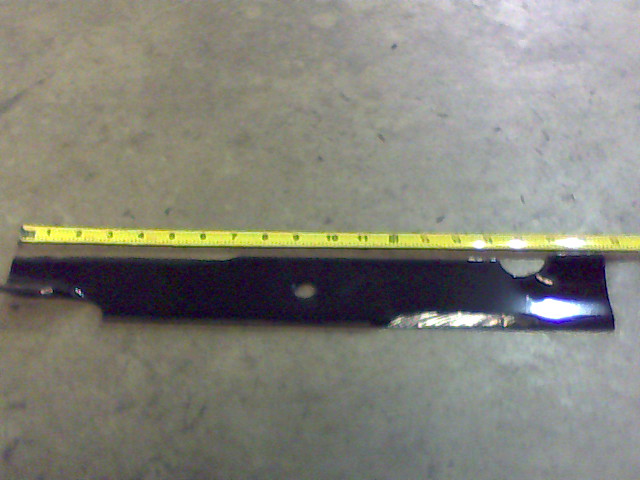

35 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99

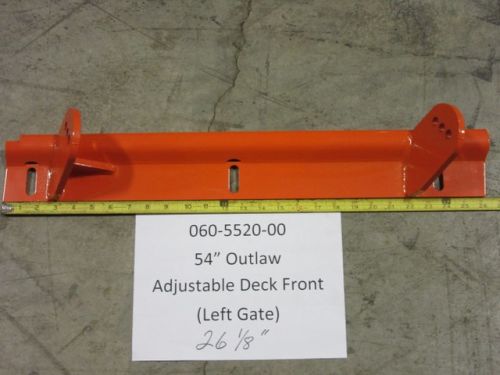

36 060-5520-00 060-5520-00 - Adjustable Deck Front Left (See Models Used On For Details)
$85.99

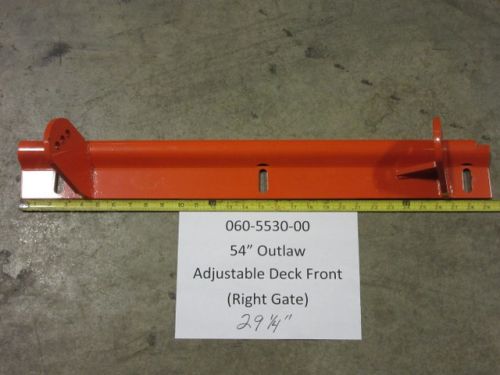

37 060-5530-00 060-5530-00 - Adjustable Deck Front Right (See Models Used On For Details)
$85.99
38 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
39 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
40 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
41 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
42 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
43 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
44.1 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
44 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
45 037-4000-50 037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete)
use part #037-4000-00
$291.91
46 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
47 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
48 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
49 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
50 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
51 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
52 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
53 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
54 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
55 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
56 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
57 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
58 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
59 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
60 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
61 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24

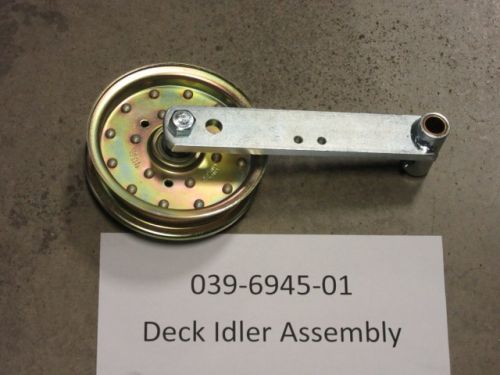

62 039-6945-01 039-6945-01 - Deck Idler Assembly
$40.65
63 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
