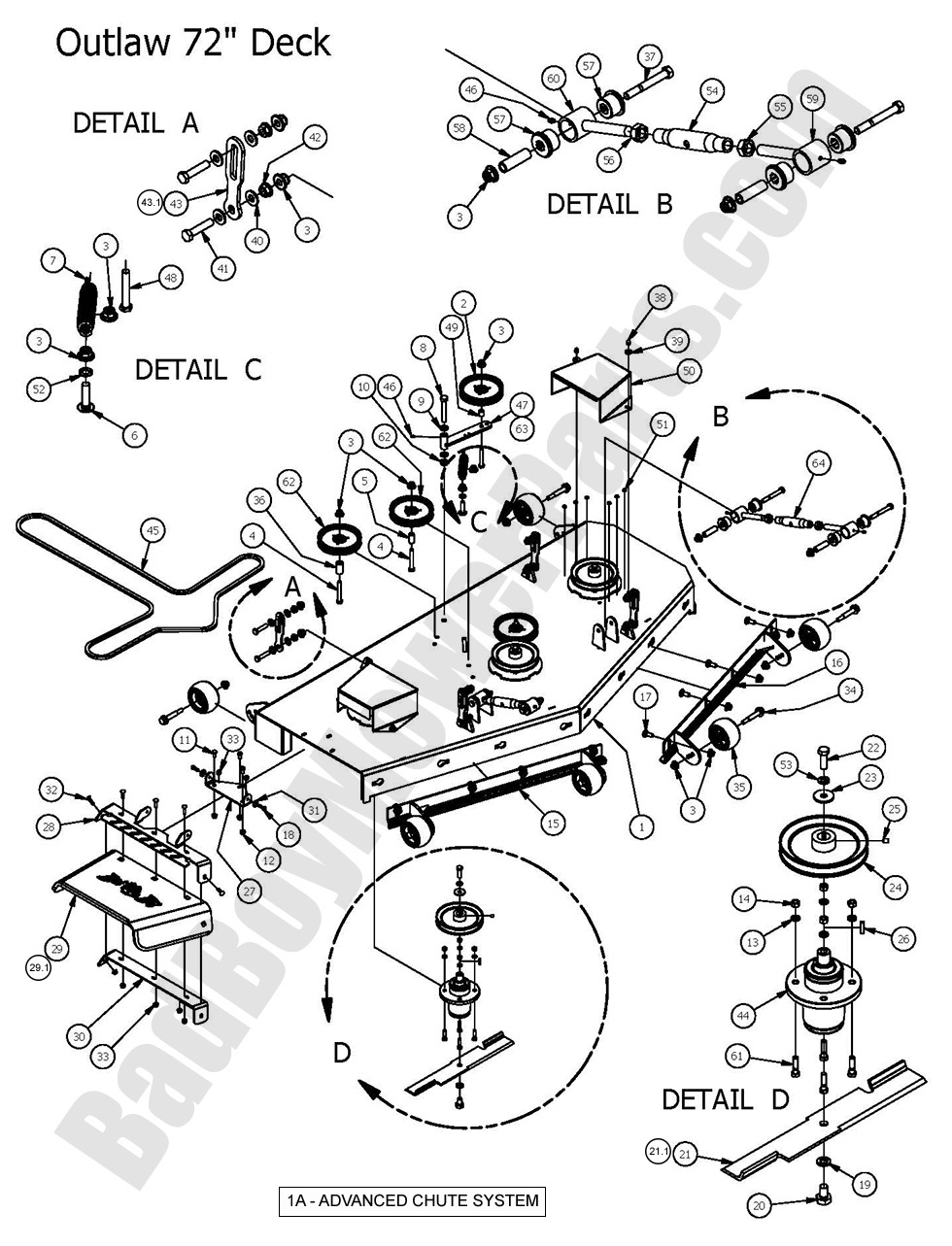

2016 Outlaw XP - 72" Deck Assembly

2016 Outlaw XP - 72" Deck Assembly

Introducing the 2016 Outlaw XP 72" Deck Assembly, an advanced cutting system engineered for expansive mowing performance and exceptional durability. Designed with precision, this deck assembly features high-quality construction and innovative design to deliver a uniform, clean cut over a 72-inch width. Its reinforced build minimizes vibration and optimizes stability, ensuring efficient grass collection and smooth operation even in the most demanding conditions. Ideal for large-scale commercial applications as well as residential upkeep, this assembly meets rigorous industry standards and enhances overall mower performance. Detailed installation guidelines and maintenance recommendations accompany the assembly to guarantee secure integration and prolonged service life. For accurate schematics, certified parts, and expert advice on installation, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com to secure necessary components and technical support, ensuring your mower delivers optimal cutting results every time.

Bad Boy Mower Parts Lookup

2016 Outlaw XP - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 060-7250-00 060-7250-00 - 2015-2018 72" Outlaw/XP Deck Shell
$1199.99
2 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
5 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
6 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
7 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
8 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
11 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
12 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
13 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 060-7211-00 060-7211-00 - 72" Deck Adjustable Front (Right Gate) (See Models Used On For Detail)
$103.99
16 060-7210-00 060-7210-00 - 72" Deck Adjustable Front (Left Gate) (See Models Used On For Detail)
$103.99
17 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
18 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
19 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
20 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
21.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
21 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
22 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
25 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
26 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
27 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
28 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
29.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
29 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
30 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
31 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
32 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
33 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
34 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
35A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
35 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
36 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
37 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
38 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
39 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
40 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
41 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
42 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
43.1 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
43 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
44 037-4000-50 037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete)
use part #037-4000-00
$291.91
45 041-0202-00 041-0202-00 - B202 Deck Belt for 72" (See Models Used On for Details)
$109.40
46 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
47 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
48 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
49 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
50 014-7204-00 014-7204-00 - 72" Spindle Cover (See Models Used On For Details)
$42.58
51 058-6000-00 058-6000-00 - Black, Round Stick-On Rubber
$2.99
52 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
53 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
54 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
55 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
56 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
57 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
58 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
59 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
60 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
61 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
62 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
63 039-6945-01 039-6945-01 - Deck Idler Assembly
$40.65
64 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
