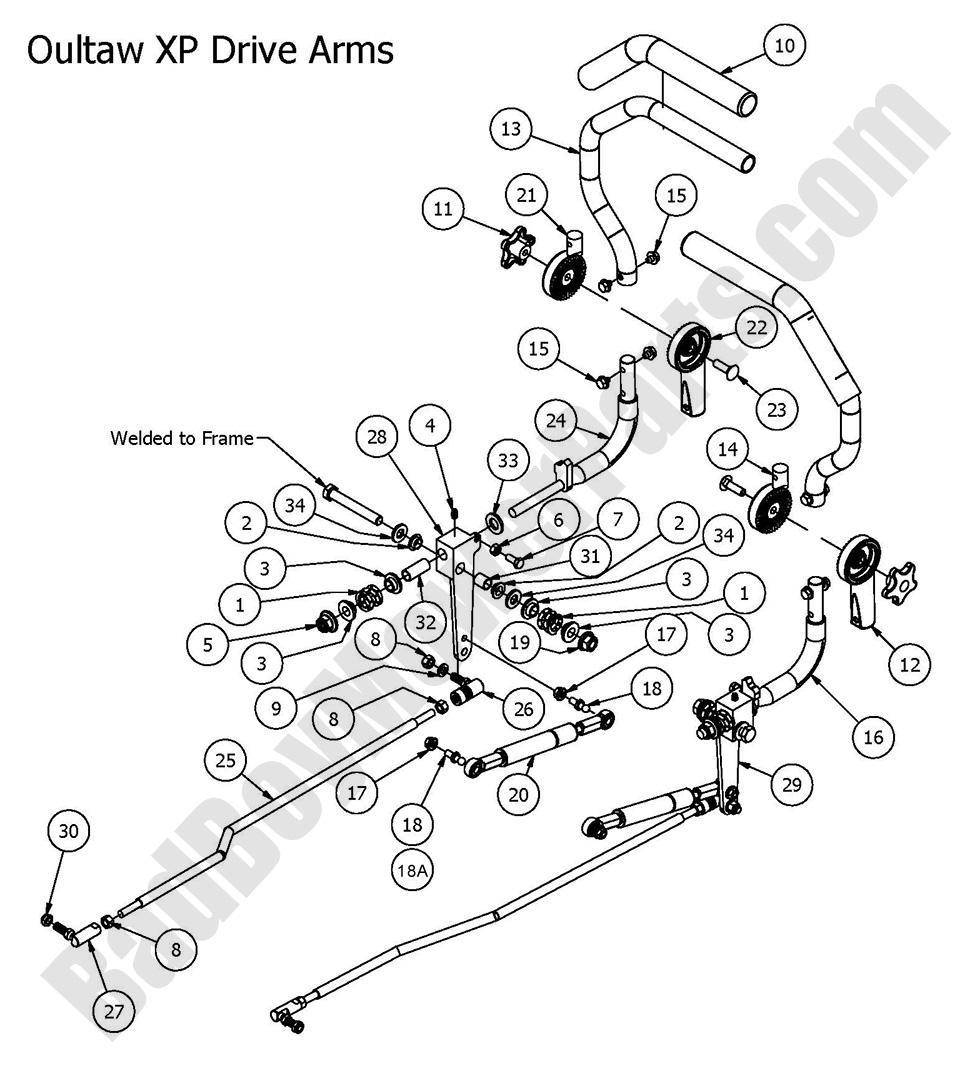

2016 Outlaw XP - Drive Arm Assembly

2016 Outlaw XP - Drive Arm Assembly

Introducing the 2016 Outlaw XP Drive Arm Assembly, a critical component engineered to transmit power and ensure precise control for your mower. Crafted with robust materials and innovative design, this drive arm assembly delivers smooth, responsive performance even under rigorous conditions. It facilitates efficient power transfer between the engine and wheels, enhancing maneuverability and overall operation. Designed for durability and ease of installation, this assembly minimizes wear and tear on critical components while supporting extended use in demanding environments. Ideal for both commercial and residential applications, the drive arm assembly is rigorously tested to meet high-performance standards. For detailed assembly diagrams, verified replacement parts, and professional installation guidance, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com to access expert technical support and resources that ensure your Outlaw XP operates with efficiency and reliability every time.

Bad Boy Mower Parts Lookup

2016 Outlaw XP - Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
7 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
8 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
11 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
12 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
13 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
14 031-9016-70 031-9016-70 - Right Upper Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
15 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
16 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
17 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
18A 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
18 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
19 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
20 087-3000-00 087-3000-00 - Steering Damper (obsolete)
use part #087-0001-00
$62.40
21 031-9017-70 031-9017-70 - Left Upper Steering Arm Adjuster-Black (See Models Used On For Details)
$53.24
22 031-9014-70 031-9014-70 - Left Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
23 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
24 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
25 035-5350-00 035-5350-00 - 2012-2018 Outlaw XP Steering Push Rod
$31.22
26 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
27 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
28 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
29 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
30 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
31 032-1010-00 032-1010-00 - Drive Arm Block Sleeve Short -
$5.82
32 032-1020-00 032-1020-00 - Drive Arm Block Sleeve - Long (See Models Used On For Details)
$6.56
33 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
34 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
