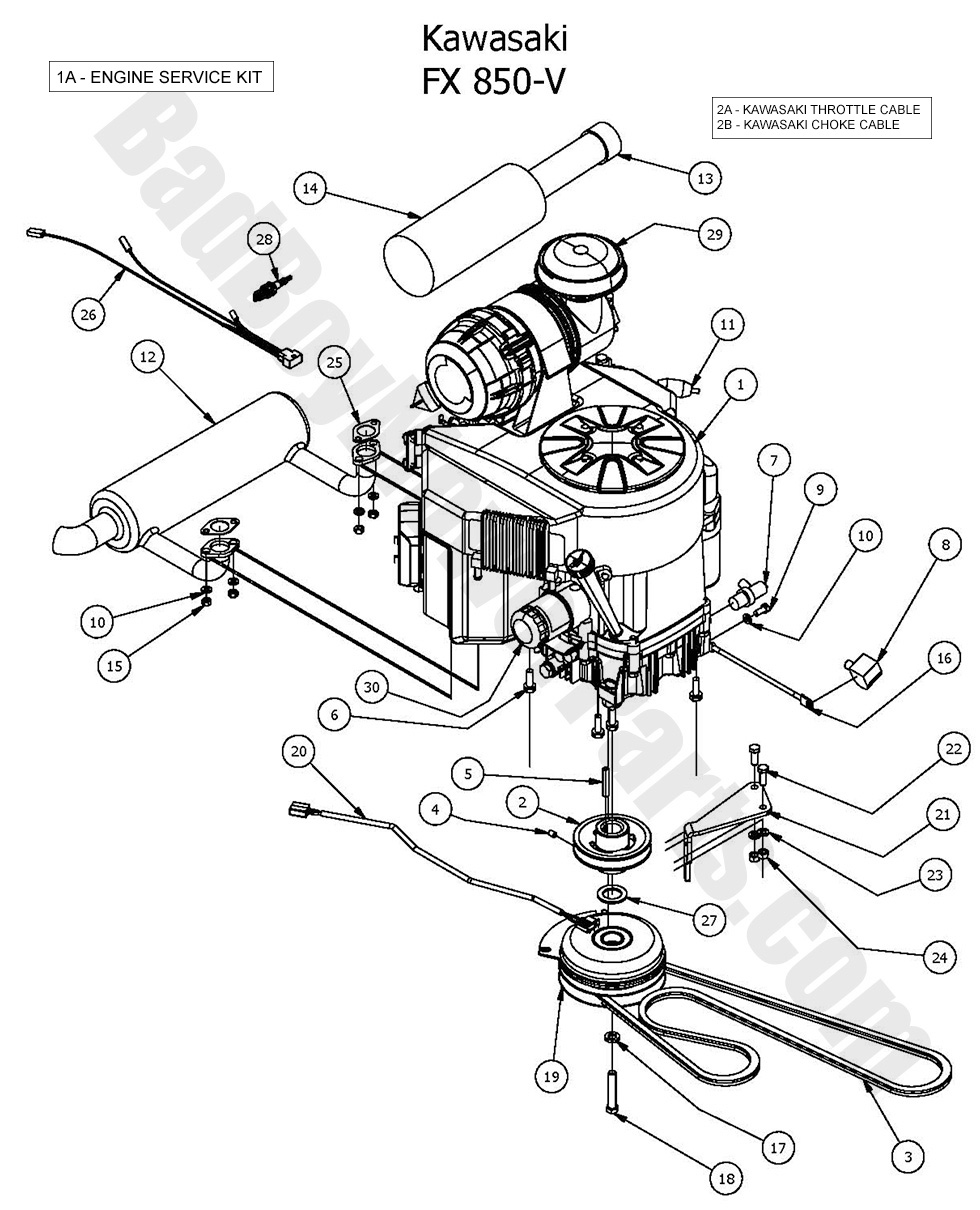

2016 Outlaw XP - Engine - Kawasaki FX850

2016 Outlaw XP - Engine - Kawasaki FX850

Introducing the 2016 Outlaw XP Engine - Kawasaki FX850, a powerful powerplant engineered for high performance and dependable operation. This engine is built with advanced technology and precision craftsmanship to deliver impressive torque and efficient fuel use for demanding mowing tasks. The FX850 is designed to provide smooth acceleration and reliable start-up, ensuring that your mower performs optimally in all conditions. Its robust construction and innovative cooling system contribute to extended engine life and consistent power output. Whether used for commercial landscaping or residential maintenance, this engine meets strict quality standards and is rigorously tested for durability. For detailed technical schematics, genuine replacement parts, and expert installation support, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com to access comprehensive technical documentation and ensure your Outlaw XP is equipped with reliable, high-performance power.

Bad Boy Mower Parts Lookup

2016 Outlaw XP - Engine - Kawasaki FX850
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
1 015-0031-00 015-0031-00 - Kaw Engine FX-850V-AS15R
$3395.00
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
3 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
4 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
5 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$42.58
8 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
9 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
12 015-0035-00 015-0035-00 - Exhaust for 31hp Kawasaki
$219.99
13 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
14 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
15 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
16 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
19 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
22 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
23 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
24 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
25 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
26 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
27 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
28 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
29 088-1071-00 088-1071-00 - 31 KAW Rain Cap for Canister (See Models Used On For Details)
$64.19
30 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
