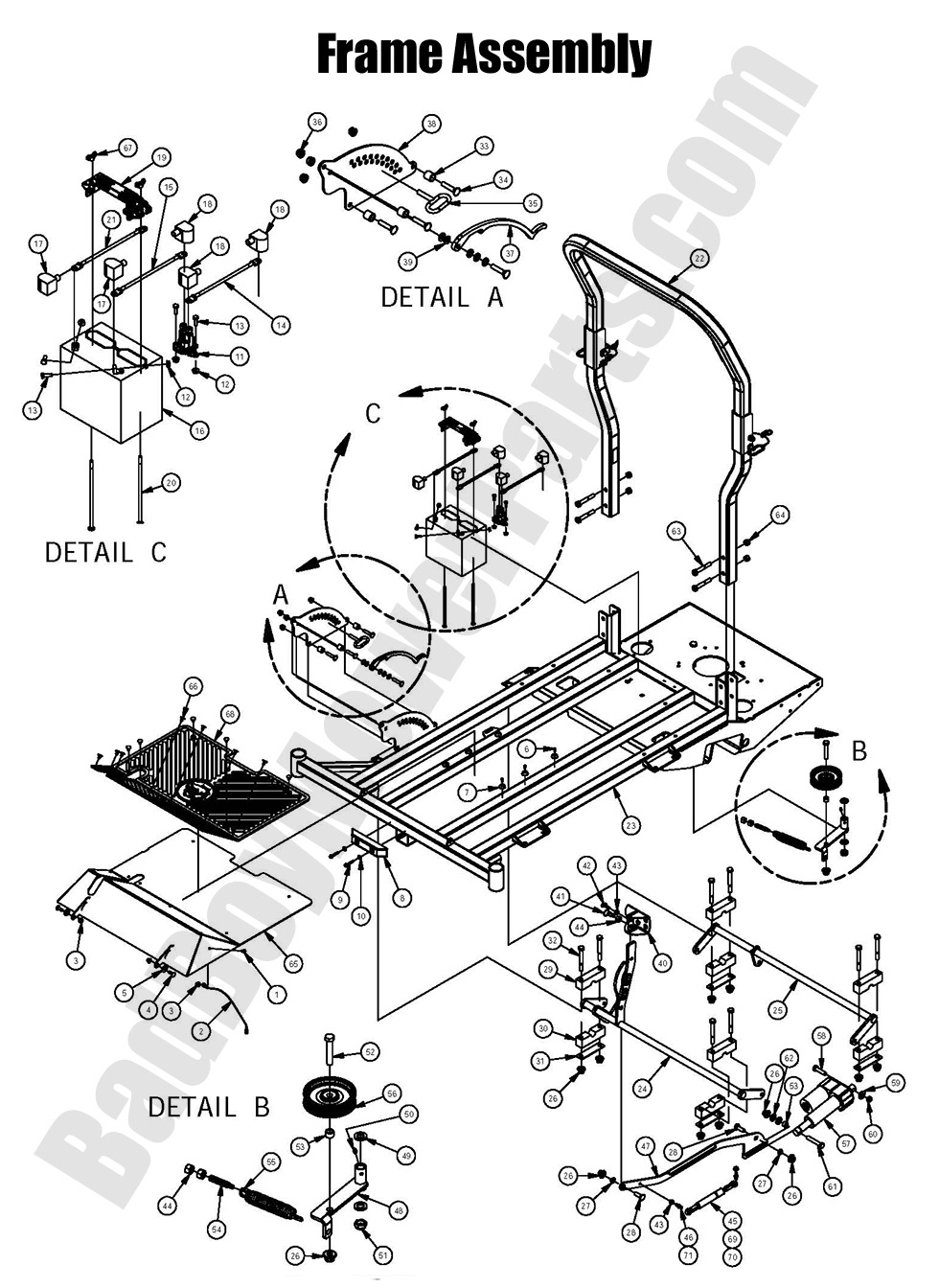

2016 Outlaw XP - Frame Assembly

2016 Outlaw XP - Frame Assembly

ntroducing the 2016 Outlaw XP Frame Assembly, a foundational structure engineered to provide exceptional strength, stability, and durability for your mower. This frame assembly is constructed from high-grade materials using precision manufacturing techniques to ensure a robust platform that supports all critical components. Its design guarantees secure integration with the mower's systems, minimizing vibration and enhancing overall performance during operation. Ideal for both heavy-duty commercial applications and routine residential use, the frame assembly has been rigorously tested to meet stringent industry standards. Detailed assembly instructions and maintenance guidelines accompany this component, ensuring a reliable and long-lasting fit. For accurate part blueprints, verified components, and expert installation advice, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com to access comprehensive technical support and additional resources that help maintain your mower's structural integrity and operational efficiency every day.

Bad Boy Mower Parts Lookup

2016 Outlaw XP - Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
2 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
6 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
7 029-4010-00 029-4010-00 - Button Bumper
$2.99
8 029-7038-00 029-7038-00 - 8 Bumper
$28.32
9 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
10 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
12 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
13 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
14 086-0003-00 086-0003-00 - Alternator to Starter Cable
$7.79
15 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
17 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
18 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
19 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
20 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
21 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
22 089-0002-00 089-0002-00 - 2x2 Folding ROPS, Fits 2011 Pup & Lightning, 2010-2018 Outlaw & Outlaw XP
$796.75
23 070-5380-00 070-5380-00 - 2015-2016 Outlaw XP Frame
$1299.99
24 028-6030-00 028-6030-00 - Actuator Bar (Front) (See Models Used On For Detail)
$189.99
25 028-6040-00 028-6040-00 - Actuator Bar (Rear) (See Models Used On For Detail)
$175.99
26 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
27 032-3000-00 032-3000-00 - Actuator Bar Bushing
$2.99
28 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
29 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
30 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
31A 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
31 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
32 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
33 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
34 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
35 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
36 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
37 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
38 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
39 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
40 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
41 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
42 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
43 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
44 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
45 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
46 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
47 028-6055-00 028-6055-00 - Linkage Bar Suspension Frame (See Models Used On For Detail)
$28.39
48 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
49 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
50 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
51 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
52 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
53 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
54 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
55 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
56 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
57 035-7033-00 035-7033-00 - Actuator
$408.75
58 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
59 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
60 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
61 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
62 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
63 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
64 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
65 079-3130-00 079-3130-00 - Outlaw Floor Panel
$119.99
66 040-6090-00 040-6090-00 - Ratchet Fastener - Floorboard (obsolete)
use part #040-6080-00
$2.99
67 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
68 081-2050-00 081-2050-00 - 2016-2018 Outlaw/Outlaw XP Floor Mat
$47.03
69 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
70 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
71 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
