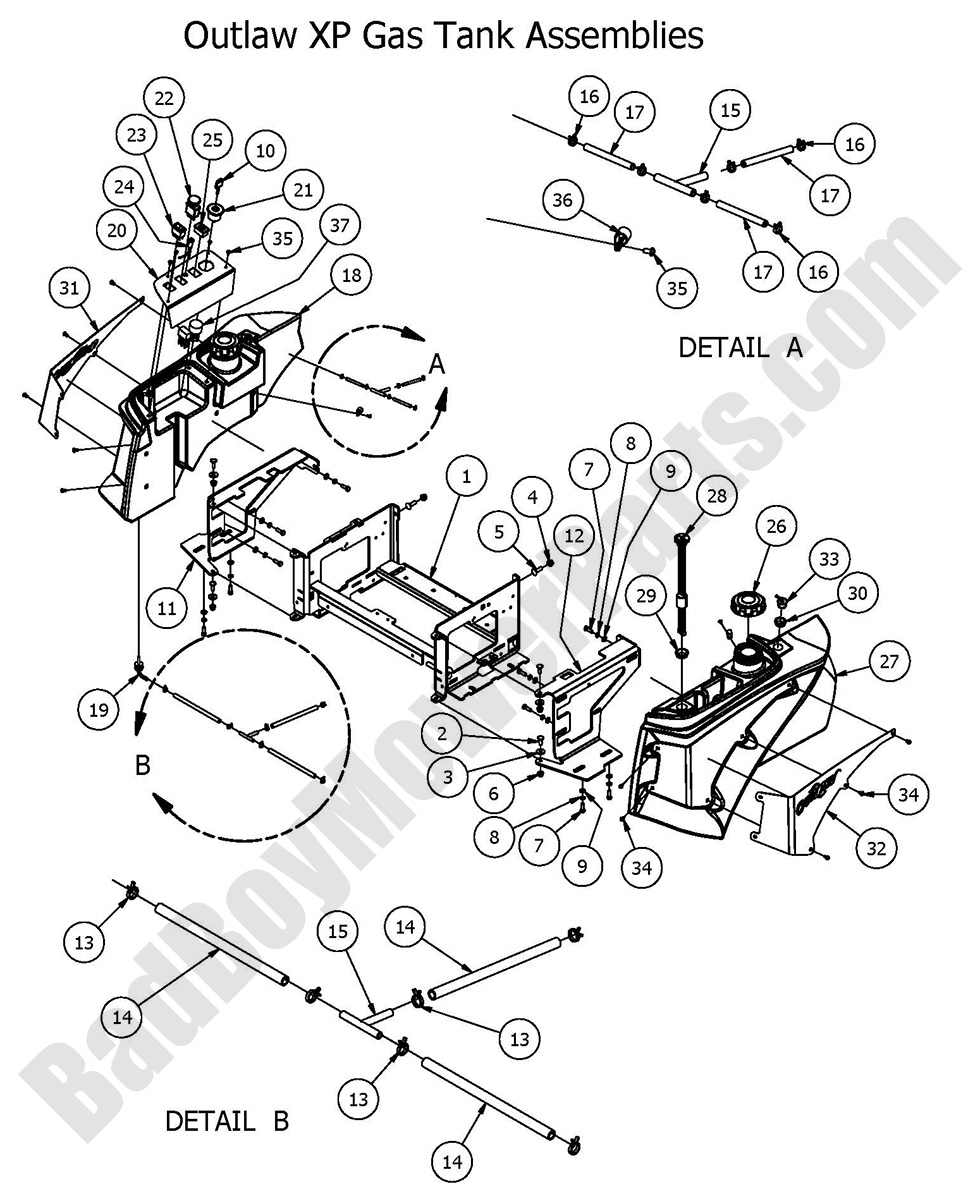

2016 Outlaw XP - Gas Tank Assembly

2016 Outlaw XP - Gas Tank Assembly

Introducing the 2016 Outlaw XP Gas Tank Assembly, a high-quality component designed to ensure secure fuel storage and efficient delivery for your mower. Constructed from durable, corrosion-resistant materials, this gas tank assembly is engineered to withstand harsh operating conditions while maintaining consistent fuel flow to the engine. Its innovative design minimizes leakage risks and simplifies integration with the mower’s control systems, contributing to enhanced overall performance. Ideal for both commercial and residential applications, the assembly supports smooth engine operation and reduces maintenance needs. Comprehensive installation instructions and regular maintenance tips are provided to ensure a proper, lasting fit. For precise technical schematics, authentic replacement parts, and expert installation guidance, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for expert support to guarantee your Outlaw XP Gas Tank Assembly delivers reliable performance and fuel efficiency always.

Bad Boy Mower Parts Lookup

2016 Outlaw XP - Gas Tank Assembly
  Position Number SKU Product Title Price

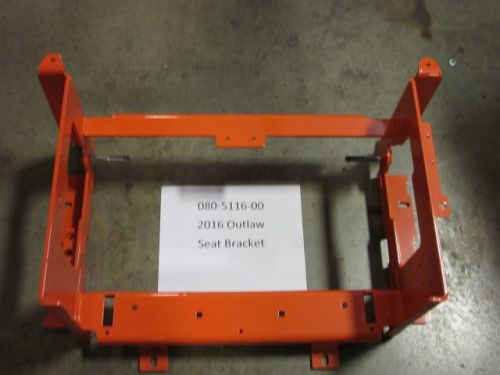

1 080-5116-00 080-5116-00 - 2016 Outlaw Seat Bracket
$399.99
2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
3 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 042-9000-00 042-9000-00 - Ignition Key
$4.06
11 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
12 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
13 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
14 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
15 073-8068-00 073-8068-00 - Fuel Line T
$9.70
16 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
17 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
18 067-1180-50 067-1180-50 - 2015-2018 Outlaw/XP Right Fuel Tank
$259.99
19 067-6055-00 067-6055-00 - Fuel Tank Hose Nipple (See Models Used On For Detail)
$26.48
20 079-3360-00 079-3360-00 - 2015-2018 Outlaw/XP Control Panel
$28.39
21 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
22 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
23 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
24 089-1000-00 089-1000-00 - Oil Light
$12.63
25 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
26 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
27 067-1190-50 067-1190-50 - 2015-2018 Outlaw/XP Left Fuel Tank
$329.99

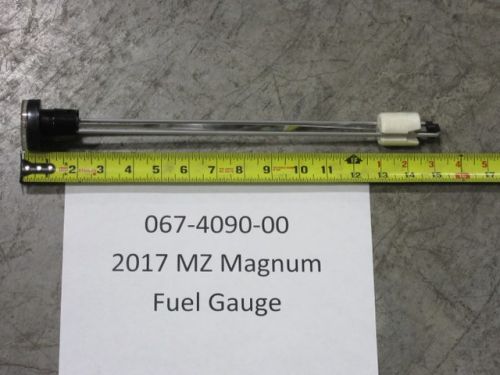

28 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00

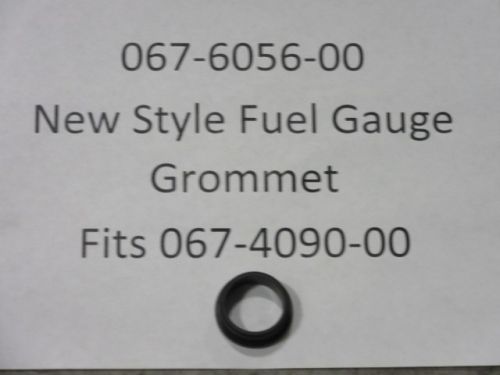

29 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
31 079-3280-00 079-3280-00 - 2015-2018 Outlaw/XP Right Tank Panel (Metal)
$26.74
32 079-3281-00 079-3281-00 - 2015-2018 Outlaw/XP Left Tank Panel (Metal)
$26.74

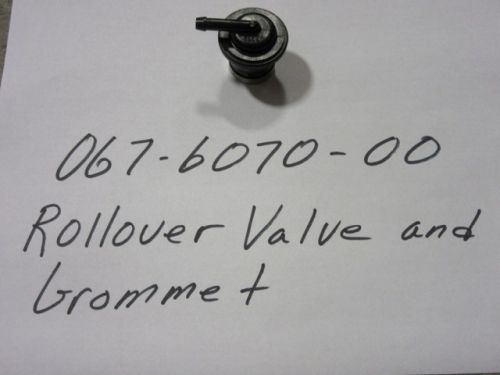

33 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
34 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
35 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
36 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
37 086-2050-00 086-2050-00 - Wiring Harness 23hp-27hp Briggs and Stratton, 2011-2018 Outlaw
$363.44
