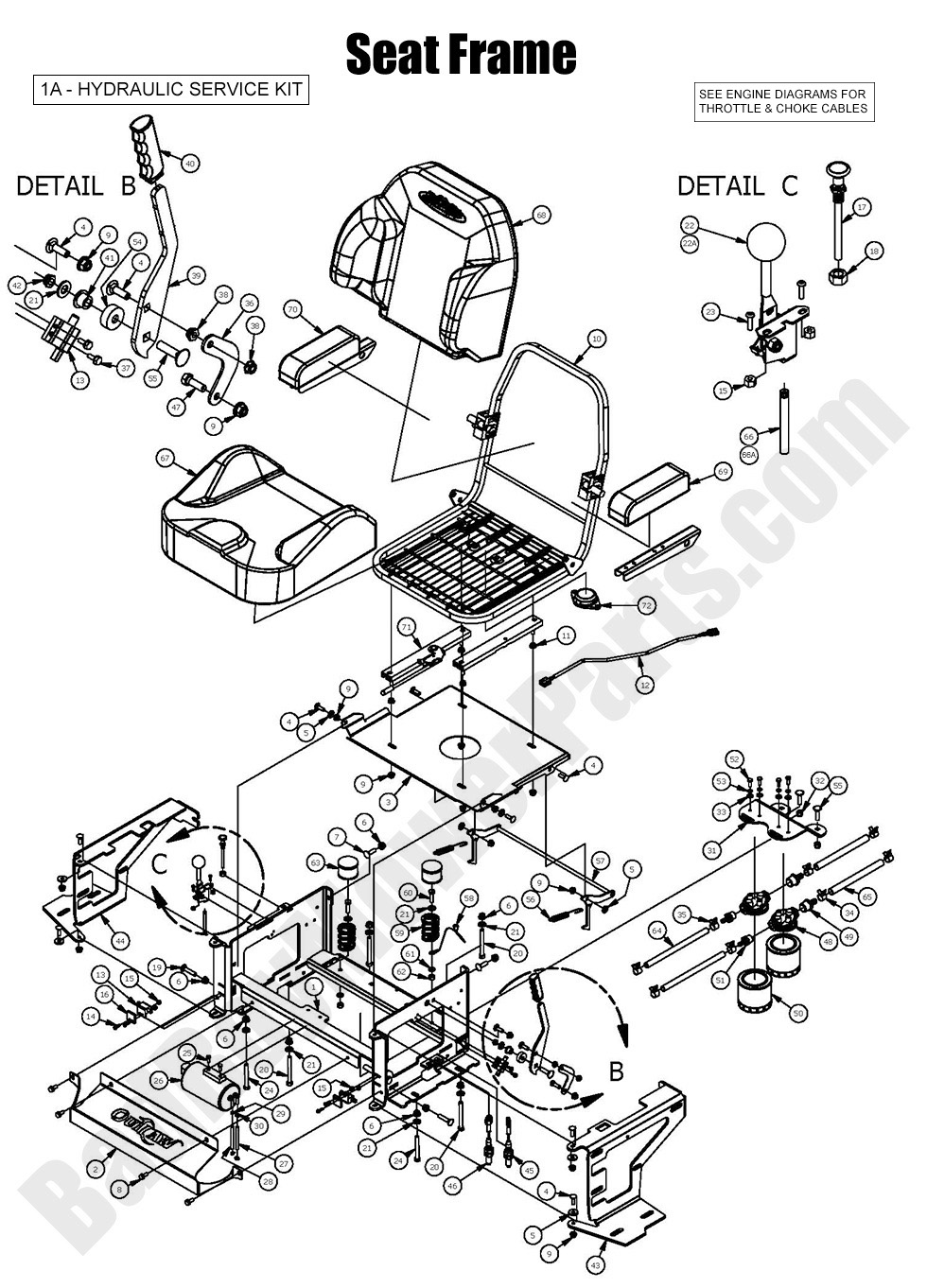

2016 Outlaw XP - Seat Frame

2016 Outlaw XP - Seat Frame

Introducing the 2016 Outlaw XP Seat Frame, a robust and ergonomically designed structure engineered to provide maximum comfort and stability during mowing operations. This seat frame is constructed from high-quality materials and precision-fabricated to ensure a secure and durable foundation for the operator's seating system. Its design promotes optimal posture, reducing fatigue during long hours of operation while withstanding the rigors of daily use. Ideal for both professional landscapers and residential users, the seat frame integrates seamlessly with your mower to deliver enhanced control and reliability. Detailed assembly instructions and maintenance recommendations accompany this component, ensuring effortless installation and long-lasting performance. For accurate technical drawings, certified replacement parts, and expert installation advice, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for expert support and resources, ensuring your Outlaw XP Seat Frame delivers comfort and stability.

Bad Boy Mower Parts Lookup

2016 Outlaw XP - Seat Frame
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 080-5116-00 080-5116-00 - 2016 Outlaw Seat Bracket
$399.99
2 014-2100-00 014-2100-00 - Outlaw Cooler Cover
$21.39

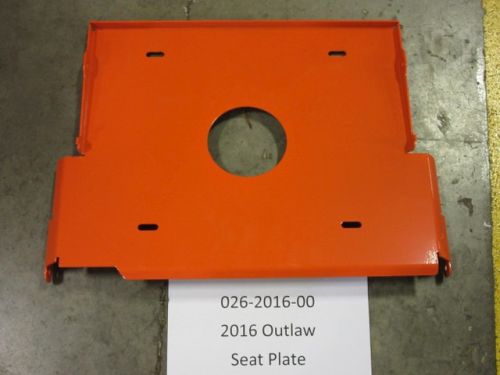

3 026-2016-00 026-2016-00 -Outlaw Seat Plate (See Models Used On For Details)
$99.32
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
6 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
9 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 071-5060-00 071-5060-00 - 2011-2018 Outlaw Models & 2019-2020 Rebel Seat
$699.99
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
13 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
14 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
15 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
16 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
18 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
19 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
20 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
21 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
22A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
22 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
23 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
24 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
25 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
26 067-0020-00 067-0020-00 - Carbon Canister
$62.40
27 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
28 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
29 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
30 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
32 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
33 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
34 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
35 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
36 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72
37 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
38 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
39 069-1000-00 069-1000-00 - Brake Handle Cam Lever
$7.28
40 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
41 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
42 013-0009-00 013-0009-00 - 3/8-16 Hex Flange Top Lock Nut
$2.99
43 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
44 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84

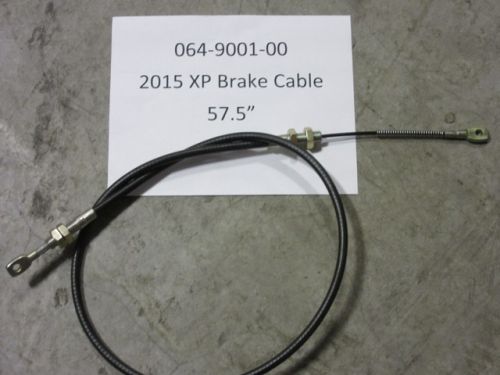

45 064-9001-00 064-9001-00 - 2015-2018 XP Brake Cable-57.5"
$51.47

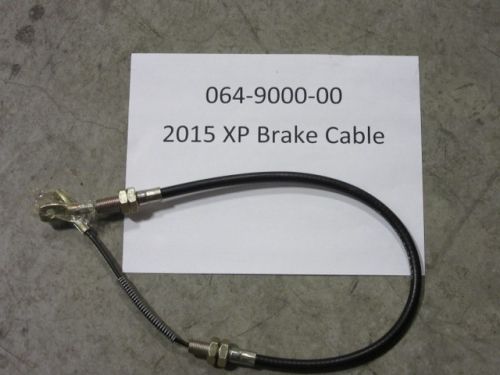

46 064-9000-00 064-9000-00 - 2015-2018 Outlaw XP Brake Cable-33"
$51.47
47 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
48 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
49 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
50 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
51 024-5342-00 024-5342-00 - Fitting 1/2 x 3/8 Barb 206-108
$7.95
52 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
53 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
54 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
55 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
56 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
57 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
58 064-8081-00 064-8081-00 - Seat Cable
$15.60
59 034-8045-00 034-8045-00 - Seat Spring
$20.49
60 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
61 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
62 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
63 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
64 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
65 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
67 071-5063-00 071-5063-00 - Seat Cover for 071-5060-00 for the 2016 - 2018 Outlaw, Outlaw/XP, 2019-2021 Rebel
$134.99
68 071-5064-00 071-5064-00 - Back Cover for 071-5060-00 Used on 2016- 2018 Outlaw, Outlaw/XP, 2019 - 2021 Rebel
$160.49
69 071-5062-00 071-5062-00 - Pair of Arm Pads for the 071-5060-00 2015 Outlaw Seat
$79.58
70 071-5061-00 071-5061-00 - Pair of Armrest for the 071-5060-00 2016 - 2018 Outlaw, Outlaw/XP, 2019-2021 Rebel
$119.99
71 071-5015-00 071-5015-00 - Seat Rails
$93.69
72 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
