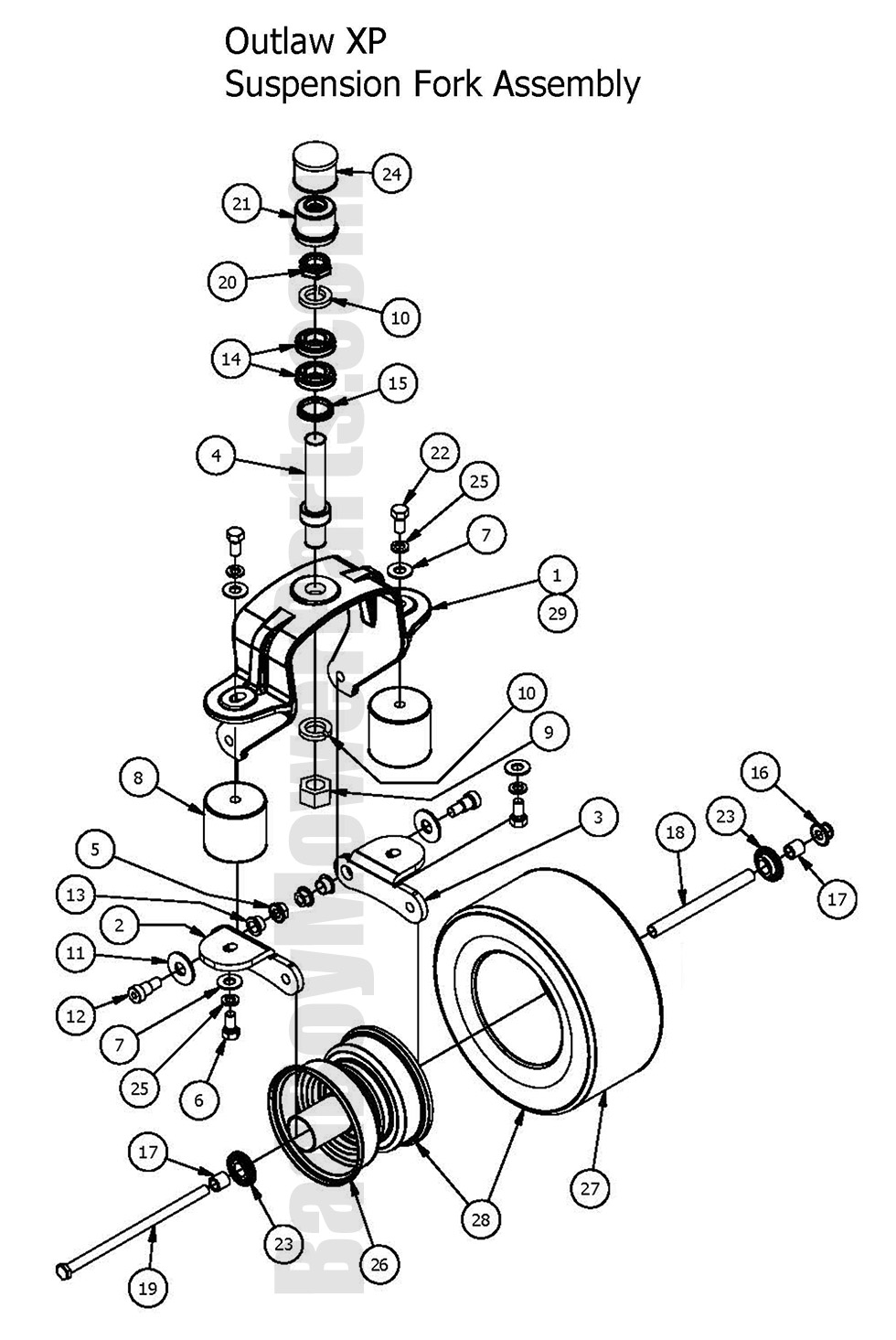

2016 Outlaw XP - Suspension Fork Assembly

2016 Outlaw XP - Suspension Fork Assembly

Introducing the 2016 Outlaw XP Suspension Fork Assembly, a vital component engineered to provide smooth suspension and enhanced stability for your mower. Constructed from high-strength materials and incorporating advanced design features, this assembly absorbs shocks and reduces vibration during operation. Its sturdy build ensures a secure connection between the deck and frame, improving handling and comfort on uneven terrain. Suitable for commercial and residential use, this assembly is rigorously tested to meet high-performance standards and deliver lasting durability. Installation instructions and maintenance guidelines are included to facilitate easy setup and consistent performance. For detailed technical drawings, certified parts, and expert installation support, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com to access technical resources and ensure your Outlaw XP Suspension Fork Assembly performs flawlessly every time. Experience truly outstanding performance with every smooth, reliable ride.

Bad Boy Mower Parts Lookup

2016 Outlaw XP - Suspension Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2020 Diesel Suspension Fork Top/Side Combo
$263.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
8 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
9 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
10 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
11 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
12 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
13 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
14A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
14 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
15A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
15 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
18 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
19 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
20 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
21 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
22 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
23 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
24 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
25 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
26 022-3090-00 022-3090-00 - Black Front Rim Only (See Models Used For Detail) (obsolete)
use part #022-3085-00
$112.99
27 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
28 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$112.99
29 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
