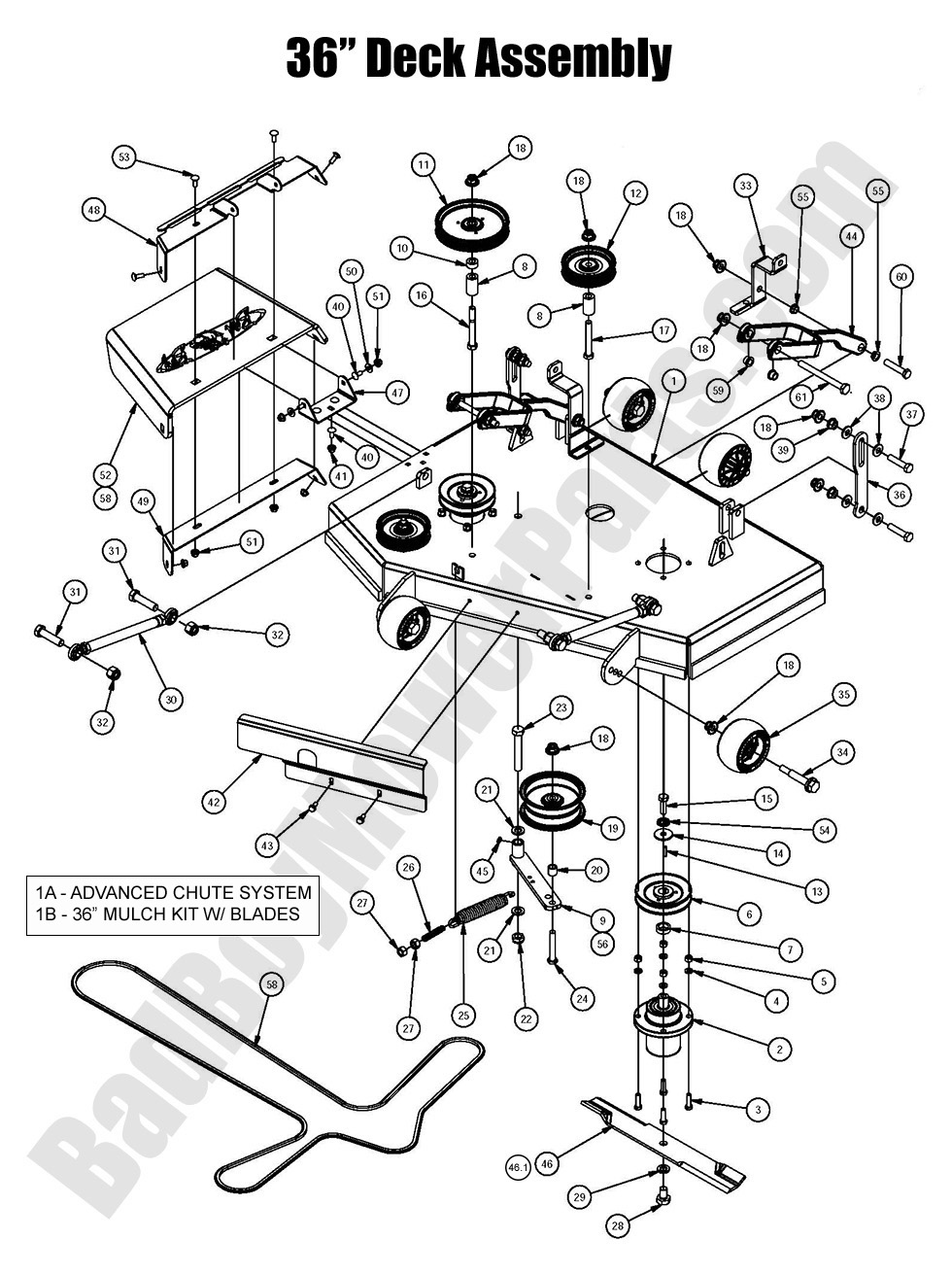

2016 Stand-On - 36" Deck Assembly

2016 Stand-On - 36" Deck Assembly

Introducing the 2016 Stand-On 36" Deck Assembly, an engineered component designed to deliver optimal cutting performance and durability for your riding mower. This deck assembly is built from materials and features a robust design that ensures uniform blade contact and a clean cut across a 36-inch width. Its engineering minimizes vibration and enhances stability, making it ideal for both residential and commercial mowing. The assembly integrates with the stand-on design, promoting efficient grass collection and operation under various conditions. Installation instructions and maintenance guidelines accompany the deck assembly, ensuring a secure fit and long-lasting performance. For schematics, verified components, and expert technical support, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Visit BadBoyMowerParts.com to explore our inventory and receive professional advice. Elevate your mowing efficiency with a deck assembly that guarantees precision, reliability, and superior cutting results every time. Achieve perfection.

Bad Boy Mower Parts Lookup

2016 Stand-On - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0036-00 210-0036-00 - 36" Walk Behind Mulch Kit w/Blades
$239.99
2 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
3 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
4 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
7 025-0060-00 025-0060-00 - 36" Stand On Deck Spindle Spacer
$6.59
8 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
9 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
10 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
11 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
12 033-7026-00 033-7026-00 - 5" V Idler Pulley with 1/2" Bore (See Models Used On For Details)
$35.48
13 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
14 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
17 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
20 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
21 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
22 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
23 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
24 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
25 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
26 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
27 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
28 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
29 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
30 048-6060-00 048-6060-00 - CZT/ZT/Maverick/Stand-On Toplink/Turnbuckle (See Models Used On For Details)
$56.77
31 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
32 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
33 039-2009-00 039-2009-00 - Stand On Deck Stop
$5.49
34 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
35A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
35 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
36 039-0235-00 039-0235-00 - Stand On Deck Hanger Tab (See Models Used On For Details)
$7.69
37 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
38 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
39 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
40 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
41 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
43 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
44 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
45 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
46.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
46 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
47 206-6020-00 206-6020-00 - Chute Hanger
$28.39
48 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
49 039-4890-00 039-4890-00 - Discharge Chute Bracket 48 MZ (Lower)
$35.43
50 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
51 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
52 210-6015-00 210-6015-00 - Discharge Chute Rubber (See Models Used On For Detail)
$53.49
53 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
54 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
55 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
58 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT)
$80.24
59 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
60 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
61 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
