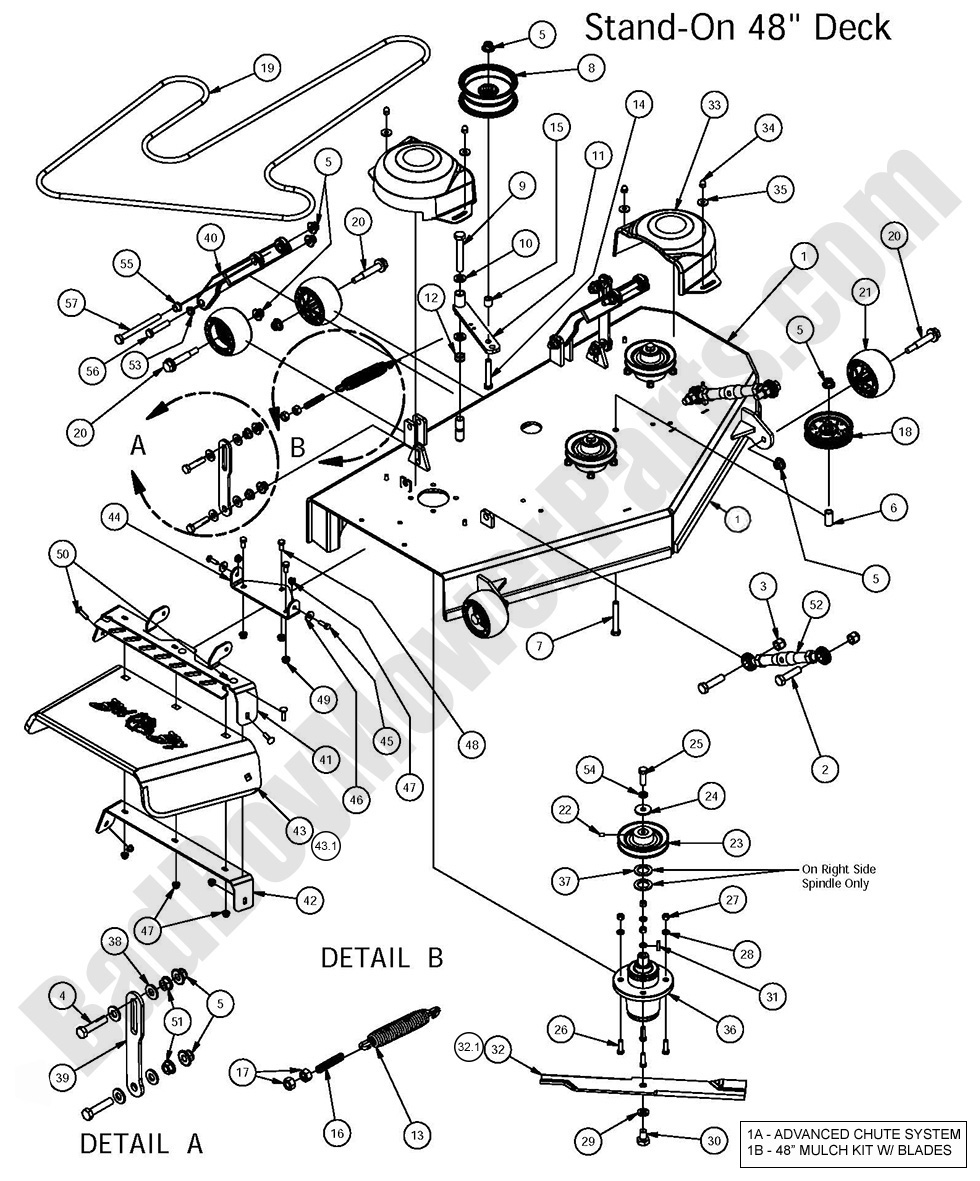

2016 Stand-On - 48" Deck Assembly

2016 Stand-On - 48" Deck Assembly

Introducing the 2016 Stand-On 48" Deck Assembly, a component engineered to deliver a wider swath and performance for your mower. This deck assembly is crafted from premium materials and features a robust design that ensures consistent blade contact for a smooth, precise cut over a 48-inch width. Its construction minimizes vibration and optimizes balance, making it ideal for both commercial and residential mowing. The assembly integrates with the stand-on configuration, promoting efficient grass collection and reliable operation under various conditions. Installation instructions and maintenance guidelines are provided to ensure a secure fit and long service life. For detailed schematics, verified parts, and technical support, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Visit BadBoyMowerParts.com to explore our inventory and gain professional advice. Enhance your mowing experience with a deck assembly that offers precision, reliability, and superior cutting performance each time. Absolutely.

Bad Boy Mower Parts Lookup

2016 Stand-On - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0348-50 210-0348-50 - 2017-2018 48" Stand On Mulch Kit w/Blades
$239.99
1 060-1148-00 060-1148-00 - 2015-2016 48" Stand On Deck Shell
$1399.99
2 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
4 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
7 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
8 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
12 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
13 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
14 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
15 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
16 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
17 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
19 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT)
$80.24
20 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
21A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
21 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
22 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
23 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
24 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
25 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
26 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
27 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
28 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
29 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
30 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
31 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
32.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
32 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
33 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
34 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
35 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
36 037-4000-50 037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete)
use part #037-4000-00
$291.91
37 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
38 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
39 039-0235-00 039-0235-00 - Stand On Deck Hanger Tab (See Models Used On For Details)
$7.69
40 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
41 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
42 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
43.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
43 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
44 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
45 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
46 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
47 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
48 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
49 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
50 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
51 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
52 048-6057-00 048-6057-00 - Toplink-Stand Ons-Black Body
$32.05
53 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
54 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
55 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
56 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
57 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
