2016 Stand-On - 54" Deck Assembly

2016 Stand-On - 54" Deck Assembly

Introducing the 2016 Stand-On 54" Deck Assembly, a durable component engineered to provide a wider cutting capacity for your mower. This deck assembly is made from quality materials and features a design that ensures consistent blade contact and an even cut over a 54-inch width. Its advanced construction reduces vibration and improves stability, making it ideal for both commercial landscaping and residential maintenance. The assembly integrates with the stand-on configuration, promoting efficient grass collection and smooth operation under varied conditions. Installation instructions and maintenance guidelines are supplied to ensure proper alignment and extended service life. For accurate schematics, authentic parts, and expert technical support, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Visit BadBoyMowerParts.com to explore our inventory and get professional advice. Elevate your mowing efficiency with a deck assembly that delivers precision, durability, and excellent cutting performance each time. Achieve outstanding results daily.

Bad Boy Mower Parts Lookup

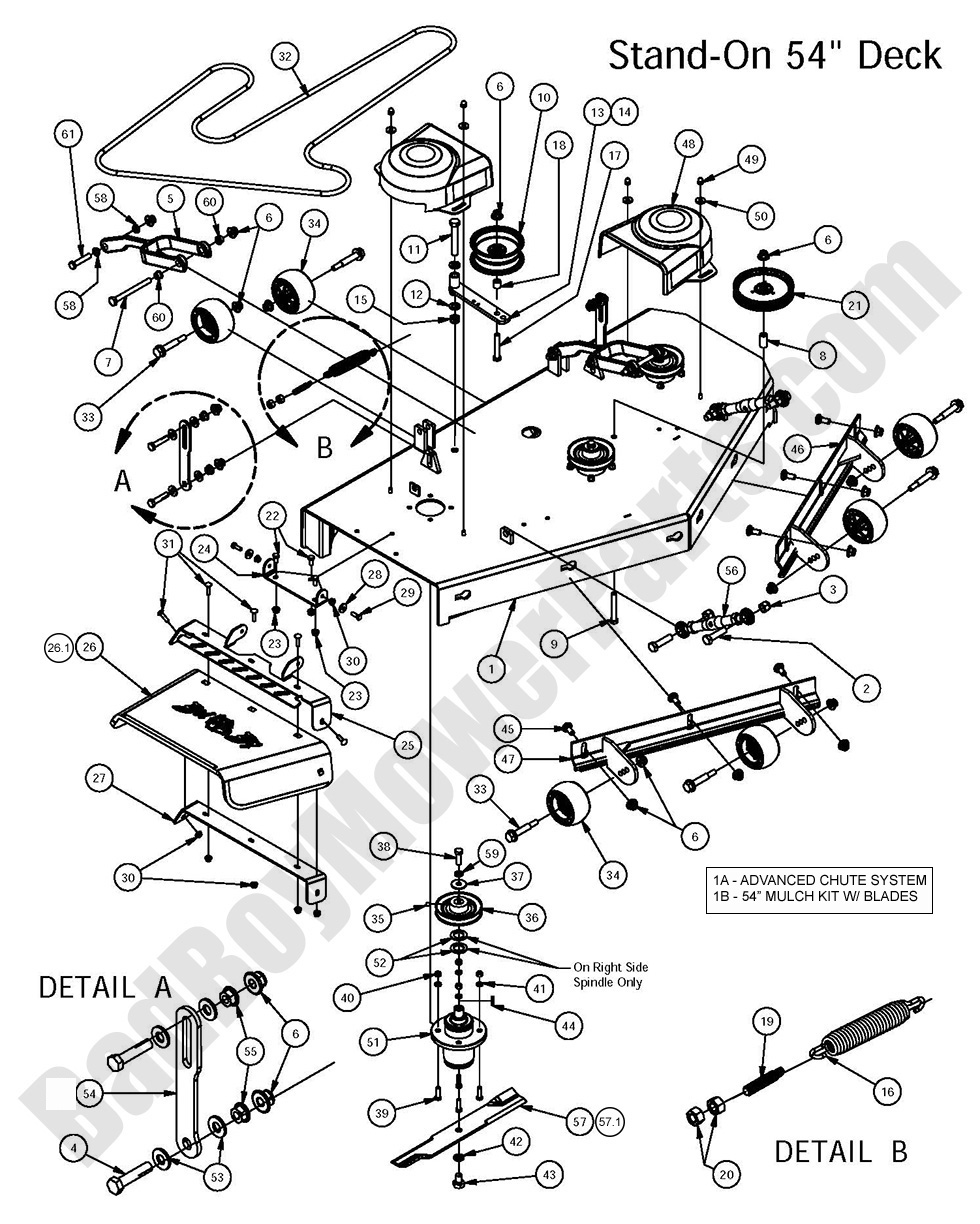

2016 Stand-On - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00

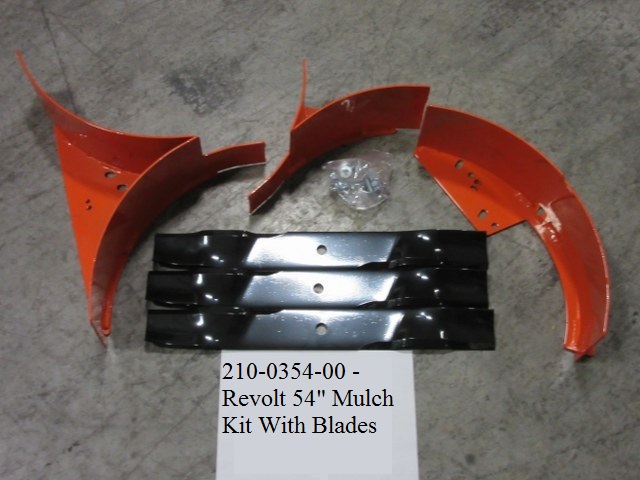

1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45

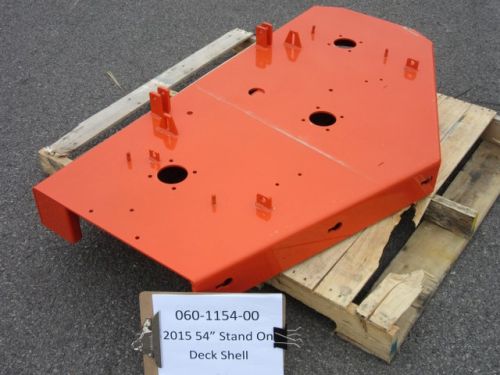

1 060-1154-00 060-1154-00 - 2015-2017 54" Stand On Deck
$1249.99
2 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
4 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
5 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
8 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
9 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
10 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
11 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
12 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
13 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
14 039-6945-98 039-6945-98 - Deck Idler Assy
$78.08
15 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
17 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
20 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
22 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
23 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
24 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
25 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
26.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
26 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
27 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
28 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
29 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
30 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
31 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99

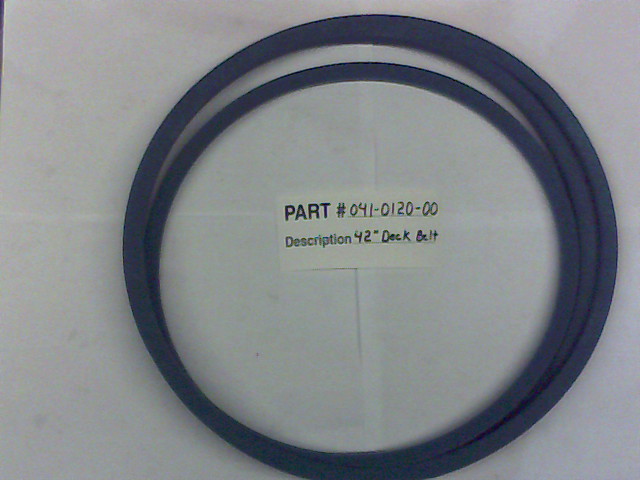

32 041-0120-00 041-0120-00 - Deck Belt (See Models Used On For More Details - Not for 54" MZ)
$88.80
33 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
34A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
34 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
35 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
36 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
37 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
38 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
39 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
40 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
41 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
42 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
43 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
44 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
45 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
46 060-5520-00 060-5520-00 - Adjustable Deck Front Left (See Models Used On For Details)
$85.99
47 060-5530-00 060-5530-00 - Adjustable Deck Front Right (See Models Used On For Details)
$85.99
48 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
49 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
50 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
51 037-4000-50 037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete)
use part #037-4000-00
$291.91
52 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
53 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
54 039-0235-00 039-0235-00 - Stand On Deck Hanger Tab (See Models Used On For Details)
$7.69
55 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
56 048-6057-00 048-6057-00 - Toplink-Stand Ons-Black Body
$32.05
57.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
57 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
58 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
59 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
60 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
61 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
