2016 Stand-On - 61" Deck Assembly

2016 Stand-On - 61" Deck Assembly

Introducing the 2016 Stand-On 61" Deck Assembly, a component designed to offer an even broader cutting capacity for your riding mower. This deck assembly is constructed with premium materials and a robust design that guarantees consistent blade contact and a precise cut over a 61-inch width. Its engineering minimizes vibration and enhances balance, making it ideal for demanding commercial and residential mowing applications. The assembly integrates with the stand-on configuration, promoting efficient grass collection and smooth operation under various conditions. Installation instructions and maintenance guidelines are provided to ensure a secure fit and extended service life. For detailed schematics, authentic parts, and expert technical support, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Visit BadBoyMowerParts.com to explore our inventory and receive professional advice. Enhance your mowing performance with a deck assembly that delivers precision, durability, and superior cutting results every time.

Bad Boy Mower Parts Lookup

2016 Stand-On - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00

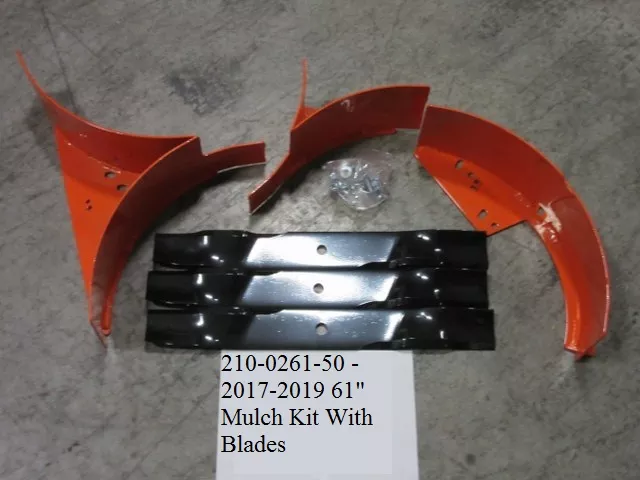

1B 210-0261-50 210-0261-50 - 2017-2018 61" Mulch Kit w/Blades (obsolete)
use part #210-0361-00
$318.45
2 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
4 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
5 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
8 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
9 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
10 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
11 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
12 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
13 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53

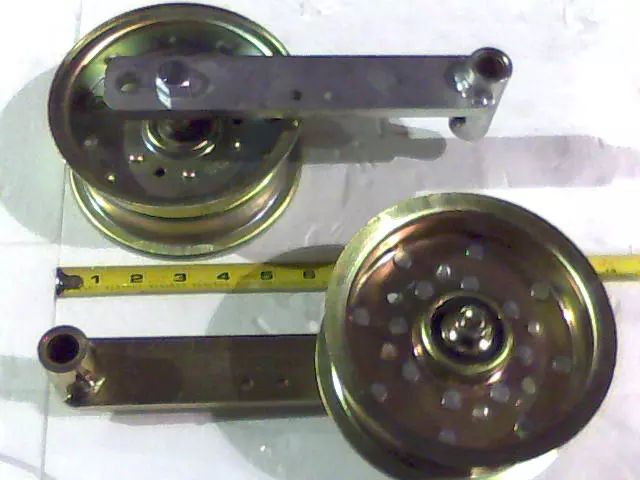

14 039-6945-98 039-6945-98 - Deck Idler Assy
$78.08
15 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
17 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
20 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
22 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
23 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
24.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
24 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
25 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
26 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
27 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
28 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
29 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
30 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
31 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
32 041-4022-00 041-4022-00 - B138 Deck Belt (See Models Used On For More Details, Not For 54" CZT/Stand-On)
$78.01
33 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
34A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
34 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
35 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
36 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
37 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
38 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
39 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
40 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
41 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
42 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
43 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
44 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
45 060-6210-00 060-6210-00 - 61 Adjustable Deck Front (Right Gate) (See Models Used On For Detail)
$103.99
46 060-6220-00 060-6220-00 - 61 Adjustable Deck Front (Left Gate) (See Models Used On For Detail)
$103.99
47 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
48 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
49 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
50 037-4000-50 037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete)
use part #037-4000-00
$291.91
51 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
52 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
53 039-0235-00 039-0235-00 - Stand On Deck Hanger Tab (See Models Used On For Details)
$7.69
54 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99

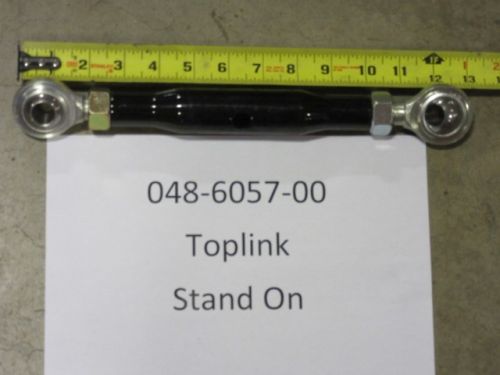

55 048-6057-00 048-6057-00 - Toplink-Stand Ons-Black Body
$32.05
56 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48

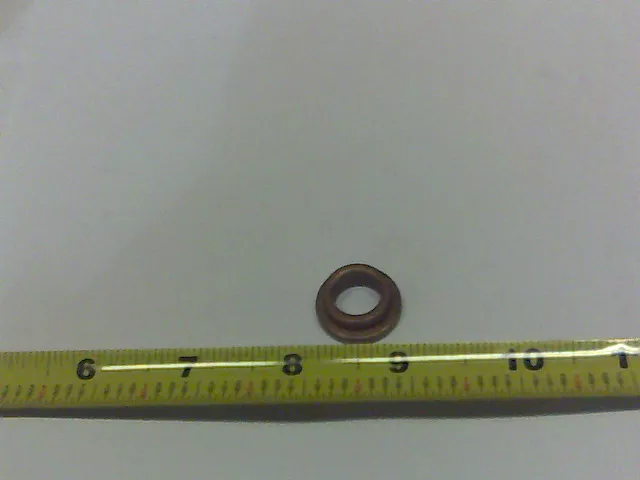

57 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
58 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99

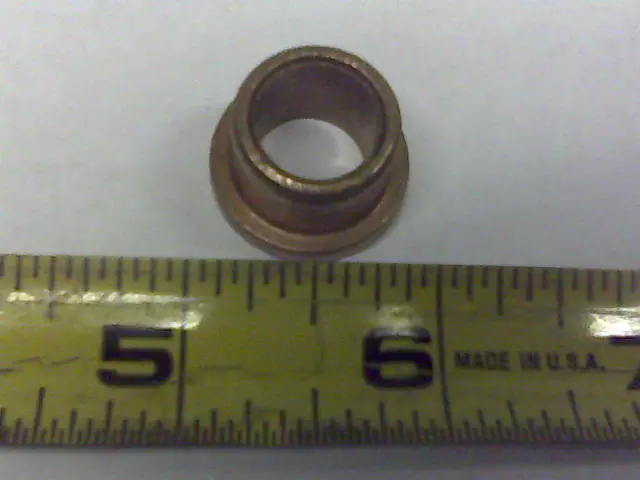

59 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
60.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
60 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
61 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
