2016 Stand-On - Podium Console

2016 Stand-On - Podium Console

Introducing the 2016 Stand-On Podium Console, an advanced control center designed to enhance the operator’s experience on your riding mower. This console is engineered for durability, ease of use, and ergonomic comfort, featuring intuitive controls and a streamlined layout that facilitates quick access to essential functions. Its design integrates with the stand-on configuration, providing a secure, stable interface that improves overall machine performance. Constructed from high-quality materials, the console withstands the rigors of daily use while maintaining a sleek, professional appearance. Detailed installation instructions and maintenance guidelines ensure effortless setup and long-lasting reliability. For accurate diagrams, genuine replacement parts, and expert technical support, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Visit BadBoyMowerParts.com to explore our inventory and receive professional advice. Upgrade your mower with the Stand-On Podium Console for optimal control, comfort, and superior operational efficiency every time. Absolutely exceptional.

Bad Boy Mower Parts Lookup

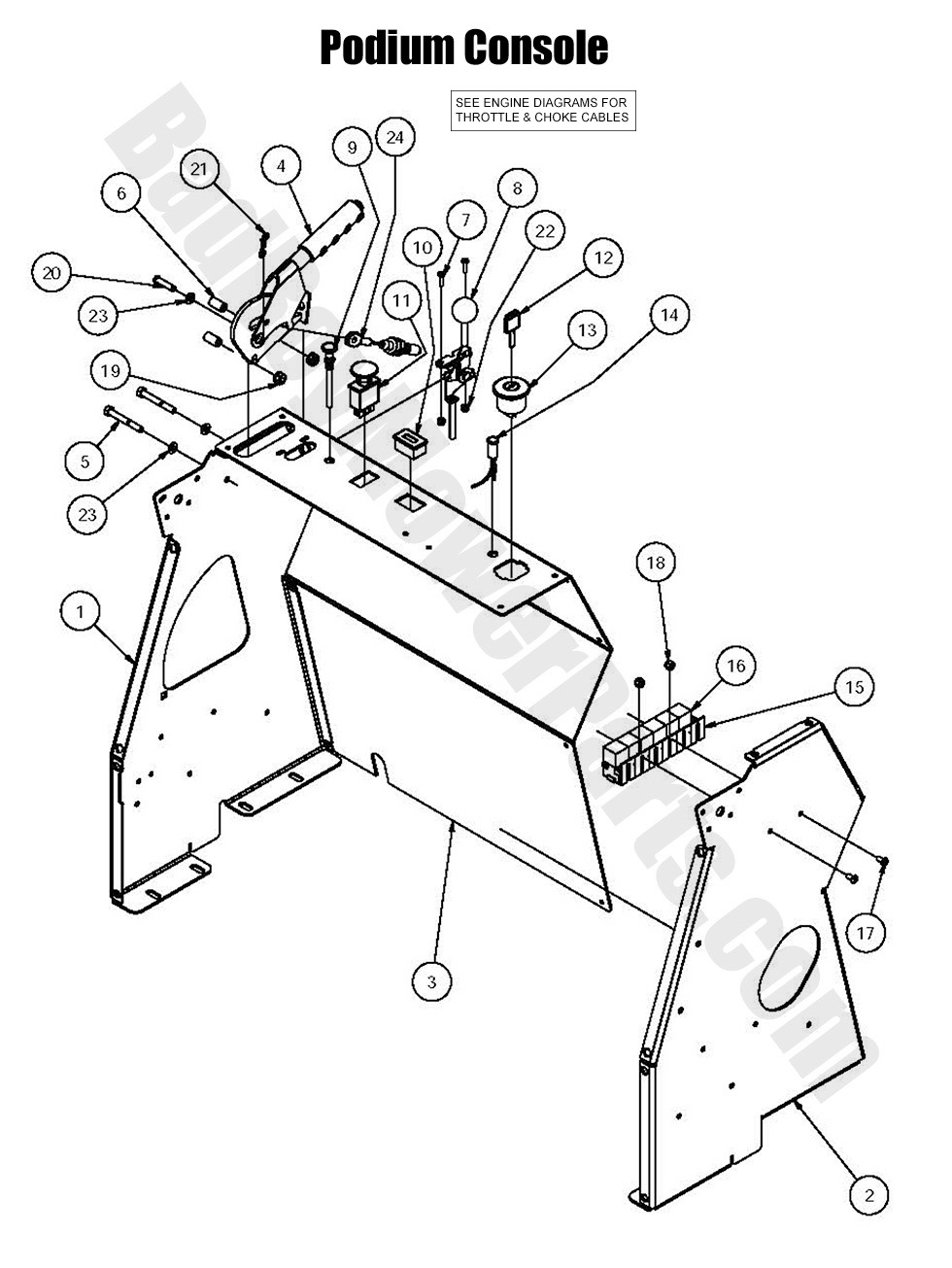

2016 Stand-On - Podium Console
  Position Number SKU Product Title Price

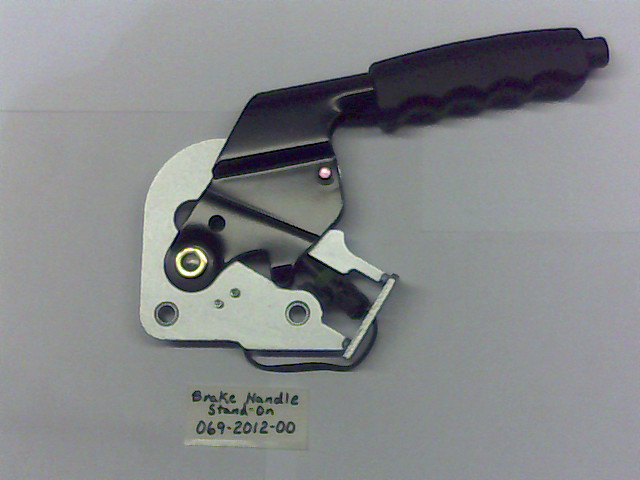

4 069-2012-00 069-2012-00 - Brake Handle-Stand On (obsolete)
use part #069-1065-00
$132.68
5 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99

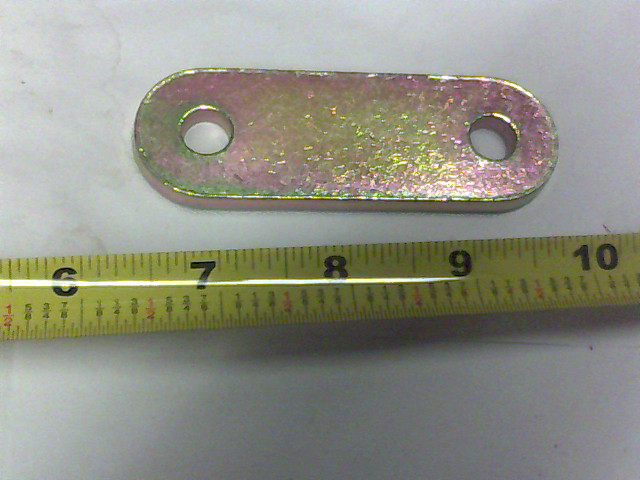

6 025-0011-00 025-0011-00 - Brake/Latch Spacer-Stand On
$3.29
7 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
10 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
11 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
12 042-9000-00 042-9000-00 - Ignition Key
$4.06
13 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
14 089-1000-00 089-1000-00 - Oil Light
$12.63

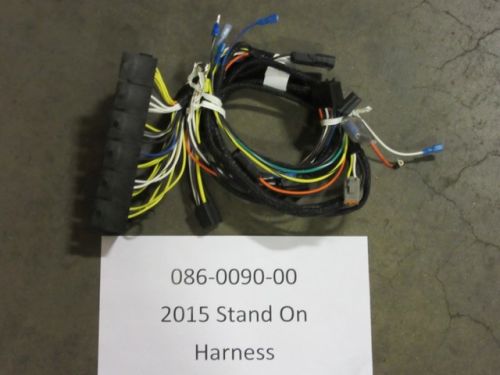

15 086-0090-00 086-0090-00 - Wiring Harness - 2015-2017 Stand On Models
$249.00
16 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
17 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
18 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99

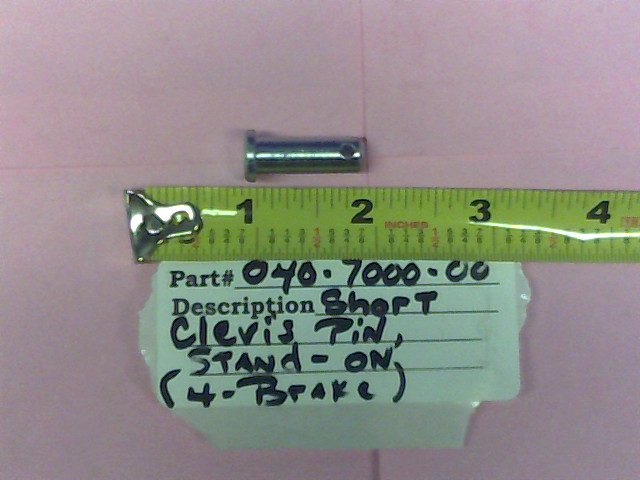

20 040-7000-00 040-7000-00 - Short Clevis Pin-Stand On
$4.39
21 044-2004-00 044-2004-00 - Bow Pin
$2.99
22 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
23 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
24 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
