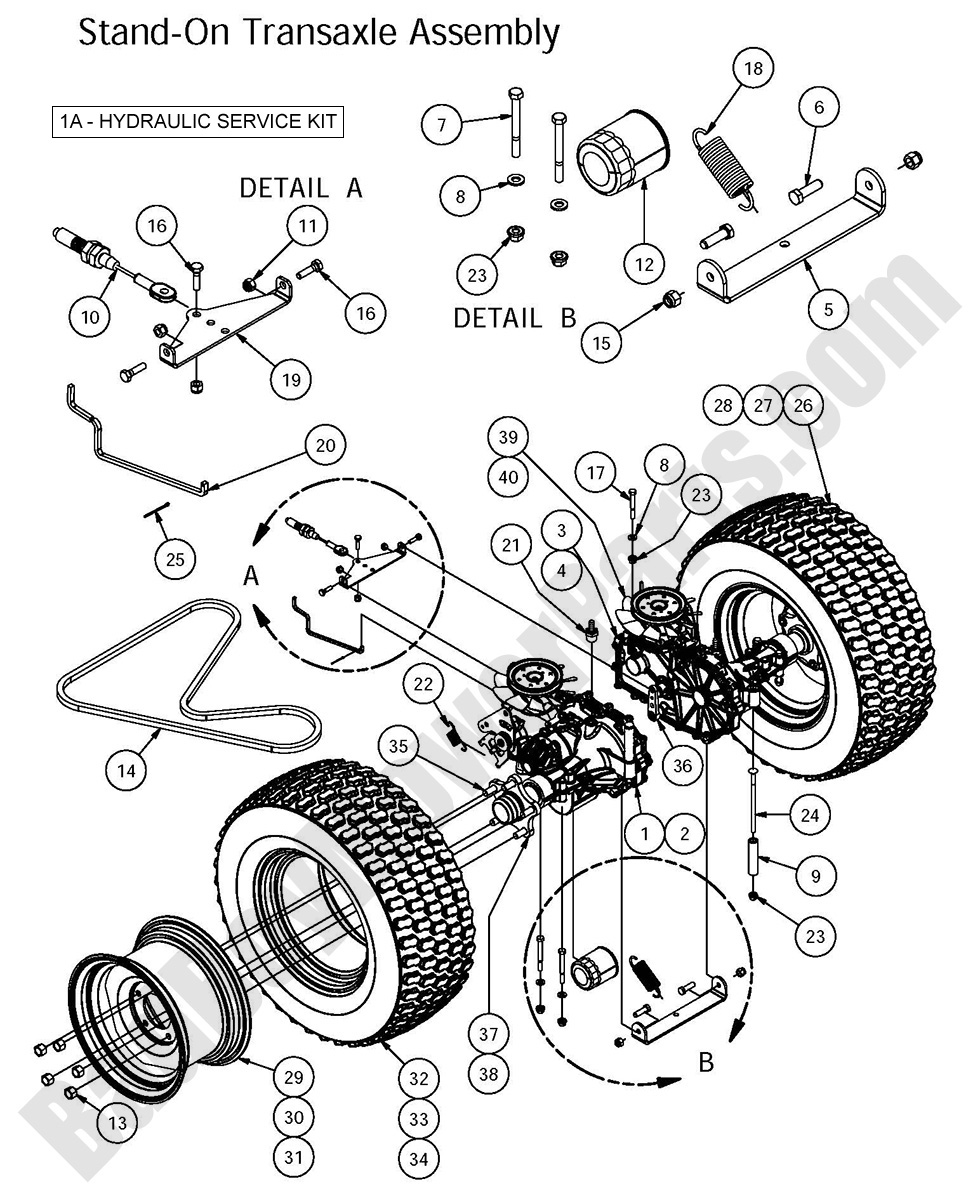

2016 Stand-On - Transaxle Assembly

2016 Stand-On - Transaxle Assembly

Introducing the 2016 Stand-On Transaxle Assembly, a critical component engineered to provide smooth power transmission and drive performance for your riding mower. This transaxle assembly is constructed from robust, high-quality materials and features an advanced design that efficiently transfers engine power to the wheels while minimizing energy loss. Its precision engineering ensures balanced traction and operation even under demanding mowing conditions in commercial and residential settings. The assembly is rigorously tested to meet stringent quality standards, guaranteeing durability and long-lasting performance. Detailed installation instructions and maintenance guidelines are provided to ensure easy setup and optimal functionality. For accurate schematics, authentic components, and expert technical support, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Visit BadBoyMowerParts.com to explore our comprehensive inventory and receive professional advice. Upgrade your mower with the Stand-On Transaxle Assembly for superior power transfer, maneuverability, and performance every time.

Bad Boy Mower Parts Lookup

2016 Stand-On - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99
2 050-2081-00 050-2081-00 - Left ZT Transaxle ZL-KCEE-3BKC-1RXX (obsolete)
use part #050-2096-01
$729.99
3 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-02
$819.99
4 050-2080-00 050-2080-00 - Right ZT Transaxle ZL-GCEE-3BKV-1RXX - Obsolete - USE PART #050-2095-01 (obsolete)
use part #050-2095-01
$729.99
5 028-4802-00 028-4802-00 - Crossover Bar 2016-2017 (See Models Used On For Detail) (obsolete)
use part #028-4801-00
$28.10
6 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
7 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
8 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99

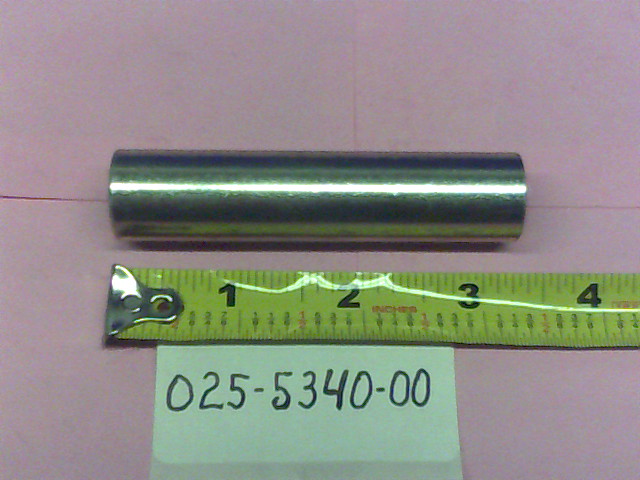

9 025-5340-00 025-5340-00 - .365 ID X .752 OD X 3.313 Length Spacer Zinc
$8.74
10 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
11 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
12 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
13 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
14 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
15 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
16 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
17 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
18 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55

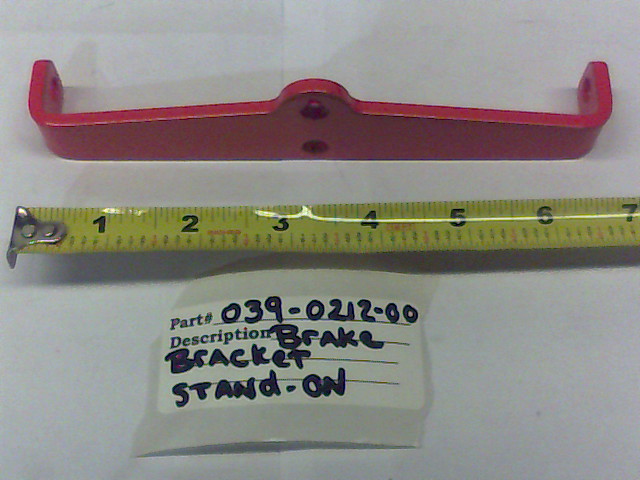

19 039-0212-00 039-0212-00 - Brake Bracket (See Models Used On For Details)
$25.54
20 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28
21 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93

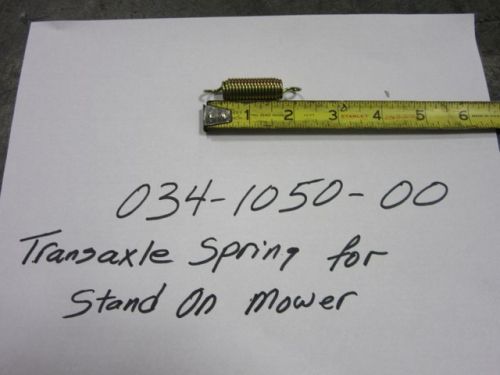

22 034-1050-00 034-1050-00 - Transaxle Spring for Stand On (See Models Used On For Details)
$7.28
23 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
25 040-2025-00 040-2025-00 - Cotter Pin-Brake Bar on MZ
$2.99

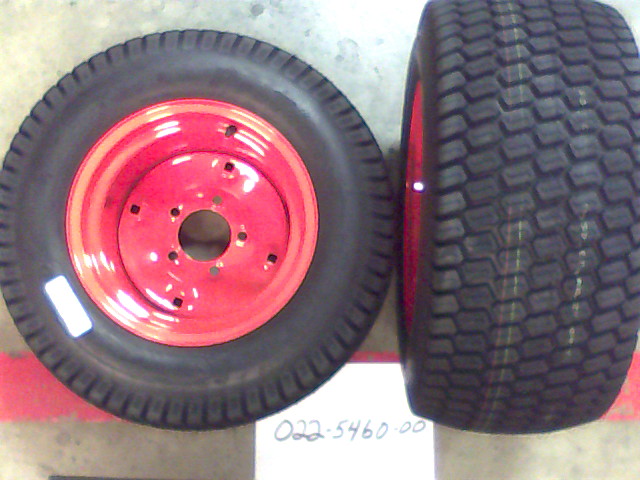

26 022-5460-00 022-5460-00 - 23 x 10.50 -12 Assembly w/Negative Offset Wheel 54"CZT (One Tire & Rim Assy)
$248.99

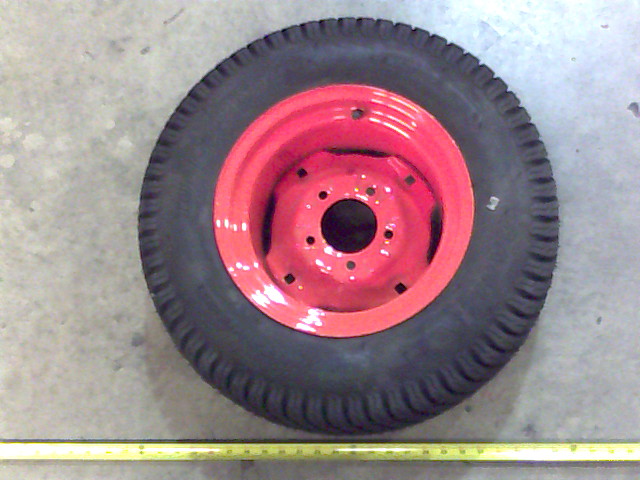

27 022-3000-00 022-3000-00 - 23x8.50-12 Tire Assembly (obsolete)
use part #022-3010-00
$247.99

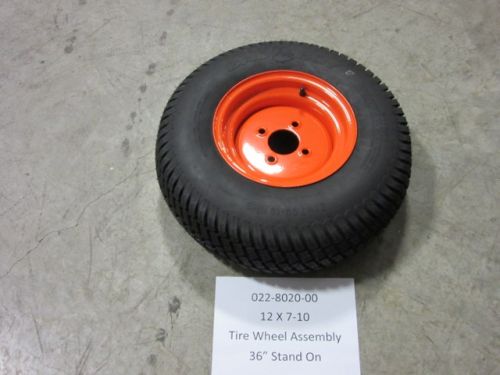

28 022-8020-00 022-8020-00 - 21x7-10 Assy-36" Stand-On
$158.99
29 022-7061-00 022-7061-00 - 12x8.5 Orange Wheel - Solid (One Rim Only)
$182.99

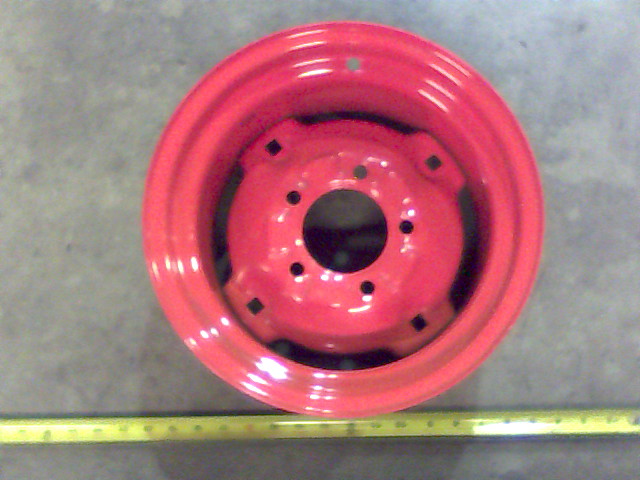

30 022-3026-00 022-3026-00 - 12x7 Wheel-23 x 8.50 - 12 Tire
$74.89

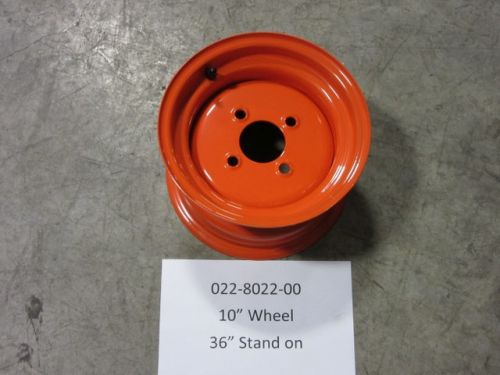

31 022-8022-00 022-8022-00 - 10" Wheel Only-36" Stand On & Walk Behind
$73.83

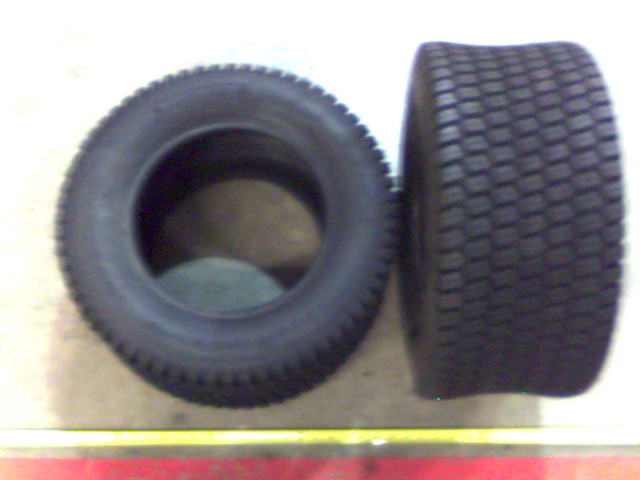

32 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$182.99
33 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$236.99
34 022-8021-00 022-8021-00 - 21x7-10 Tire Only-36" Stand On
$159.99
35 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
36 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
37 050-2077-00 050-2077-00 - 5 Bolt Hub Kit (See Models Used On For Details)
$102.71
38 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56

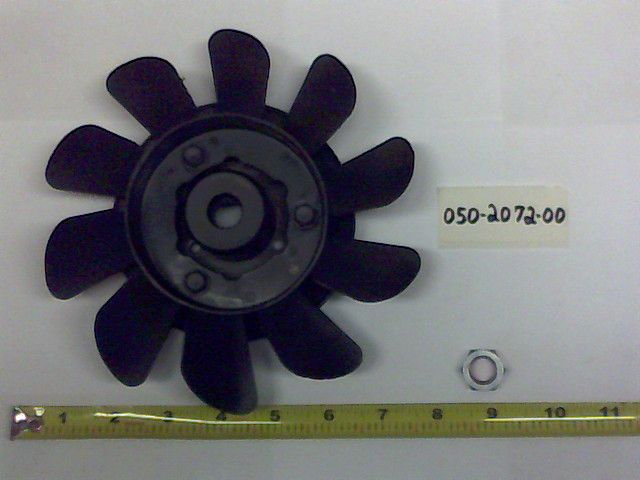

39 050-2072-00 050-2072-00 - Fan/Pulley Kit
$63.96
40 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
