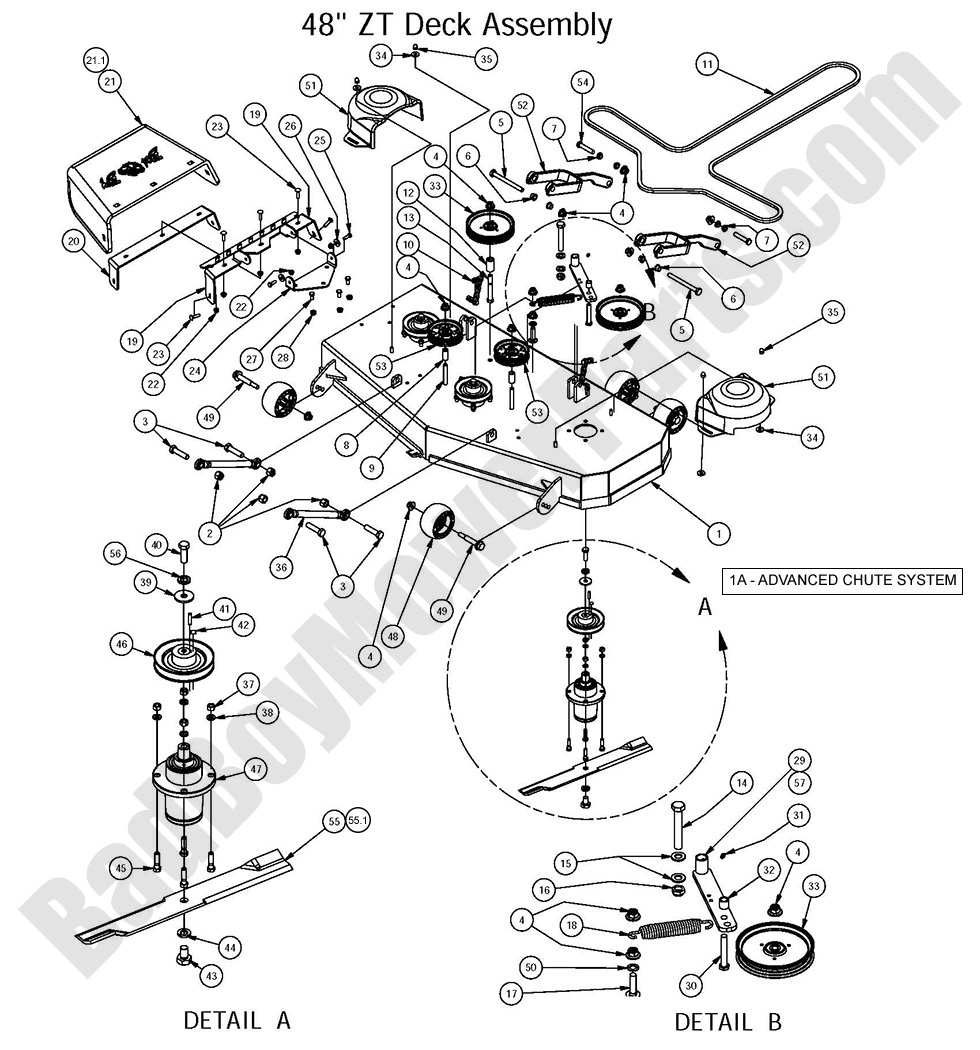

2016 ZT Elite - 48" Deck Assembly

2016 ZT Elite - 48" Deck Assembly

Introducing the 2016 ZT Elite 48" Deck Assembly, a precision component designed to provide superior cutting performance for your mower. Constructed with high-quality materials and advanced techniques, this deck assembly ensures even blade distribution and a consistently clean cut across a 48-inch width. Its robust design reduces vibration and enhances stability, resulting in efficient grass collection and a smooth mowing experience. Suitable for commercial and residential applications, the assembly integrates seamlessly with the 2016 ZT Elite’s advanced systems, promoting lasting durability and optimal performance. Clear installation instructions and maintenance tips accompany this deck assembly to ensure proper alignment and secure attachment. For detailed schematics, verified components, and technical support, please consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for further details and expert guidance. Enhance your mower’s cutting efficiency and achieve results with this deck assembly.

Bad Boy Mower Parts Lookup

2016 ZT Elite - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1 060-6048-00 060-6048-00 - 2013-2015 CZT, 2014-2016 ZT, 2016-2017 Maverick 48" Deck Shell
$1196.14
2 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
3 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
6 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
7 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
8 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
9 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
10 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
11 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
12 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
15 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
16 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
17 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
18 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
19 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
20 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
21.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
21 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
22 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
23 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
24 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
25 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
26 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
27 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
28 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
29 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
30 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
31 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
32 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
33 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
34 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
35 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
36 048-6060-00 048-6060-00 - CZT/ZT/Maverick/Stand-On Toplink/Turnbuckle (See Models Used On For Details)
$56.77
37 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
38 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
39 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
40 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
41 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
42 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
43 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
44 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
45 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
46 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
47 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
48A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
48 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
49 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
50 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
51 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
52 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
53 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
54 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
55.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
55 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
56 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
57 039-6945-01 039-6945-01 - Deck Idler Assembly
$40.65
