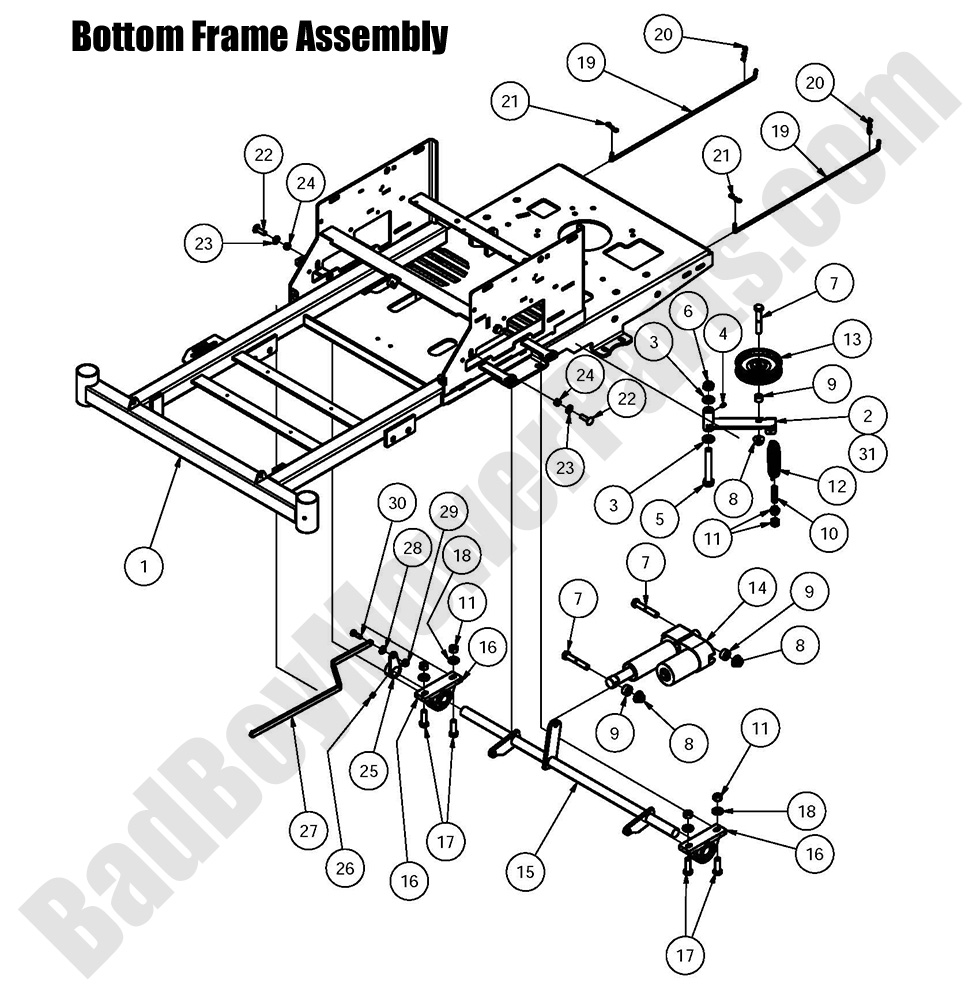

2016 ZT Elite - Bottom Frame Assembly

2016 ZT Elite - Bottom Frame Assembly

Introducing the 2016 ZT Elite Bottom Frame Assembly, a key component engineered to provide a solid foundation and support for your mower. This assembly is crafted from durable, high-quality materials using advanced fabrication techniques to ensure exceptional strength and stability. It is designed to integrate seamlessly with the overall chassis, enhancing the rigidity and performance of the 2016 ZT Elite. The bottom frame assembly contributes to improved balance and reduces vibrations during operation, resulting in a smoother mowing experience. Ideal for both commercial and residential applications, this component is rigorously tested to meet strict industry standards. Detailed installation instructions and maintenance guidelines accompany the assembly to guarantee proper alignment and long-term reliability. For comprehensive schematics, replacement parts, and technical support, please refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for further details and expert assistance.

Bad Boy Mower Parts Lookup

2016 ZT Elite - Bottom Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
3 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
4 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
5 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
6 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
7 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
10 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
11 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
12 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14 035-7033-00 035-7033-00 - Actuator
$408.75
15 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
16 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
17 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
18 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
19 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
20 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
21 044-2004-00 044-2004-00 - Bow Pin
$2.99
22 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
23 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
24 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
25 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
26 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
28 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
29 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
30 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
31 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
