2016 ZT Elite - Drive Arm Assembly

2016 ZT Elite - Drive Arm Assembly

Introducing the 2016 ZT Elite Drive Arm Assembly, a precision-engineered component designed to ensure efficient power transfer and steering for your mower. Crafted from robust materials, this drive arm assembly provides a reliable connection between the engine and drivetrain, enhancing maneuverability and performance. Its innovative design minimizes wear and vibration, contributing to smooth operation even under demanding conditions. Ideal for both commercial and residential use, this assembly integrates seamlessly with the 2016 ZT Elite’s framework to deliver lasting durability and performance. Comprehensive installation instructions and maintenance recommendations accompany the part, ensuring proper alignment and secure fitting. For detailed schematics, verified components, and expert technical support, please consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for further details and guidance. Upgrade your mower with this drive arm assembly to enhance power transfer and achieve superior handling every time.

Bad Boy Mower Parts Lookup

2016 ZT Elite - Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
2 027-8900-00 027-8900-00 - Drive Lever Housing (Left)2013 cZT, ZT, (obsolete)
use part #031-0017-98
$31.23
3 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
4 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
5 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
6 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
7 039-1125-00 039-1125-00 - MZ Switch Bracket
$5.22
8 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
9 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
10 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
11 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
14 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
15 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
16 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
17 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
18 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
19 087-3000-00 087-3000-00 - Steering Damper (obsolete)
use part #087-0001-00
$62.40
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99

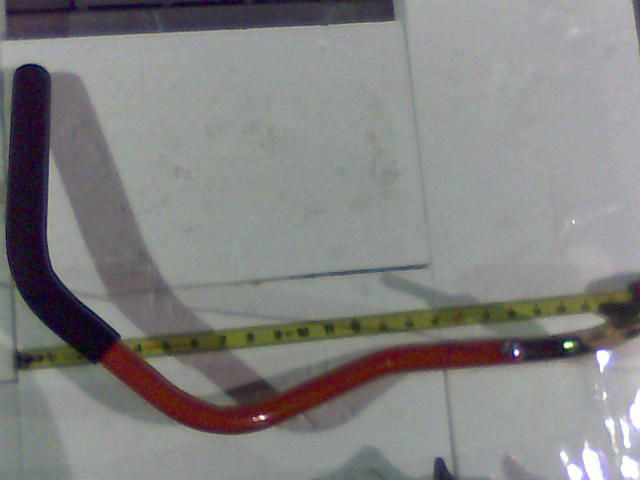

21 031-8850-00 031-8850-00 - Steering Arm Left - 5" Offset ZT 2009 to Present (obsolete)
use part #031-8850-70
$93.64
22 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
23 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
24 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
25 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
26 027-8901-00 027-8901-00 - 2013-2015 ZT/CZT, 2013-2016 Outlaw, 2016 Maverick Drive Lever Housing (Right)
$14.19
27 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
28 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95

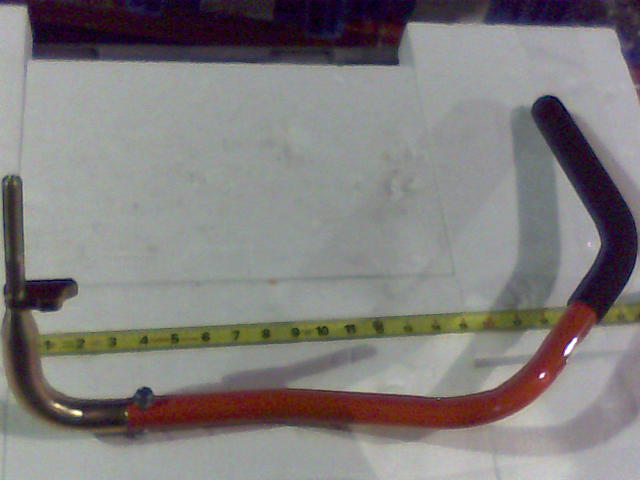

29 031-8851-00 031-8851-00 - Steering Arm Right - 5" Offset ZT 2009 to Present (obsolete)
use part #031-8851-70
$93.64
30 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
31 032-5000-00 032-5000-00 - 1/2" Oil Impregnated Bushing
$3.78
32 032-1020-00 032-1020-00 - Drive Arm Block Sleeve - Long (See Models Used On For Details)
$6.56
33 032-1010-00 032-1010-00 - Drive Arm Block Sleeve Short -
$5.82
