2016 ZT Elite Engine - Kohler 725 & 747cc

Engine - Kohler 725 & 747cc

You have selected the Engine - Kohler 725 & 747cc diagram for your 2016 Bad Boy ZT Elite. BadBoyMowerParts.com has the diagrams you need for the 2016 ZT Elite models. Find all of your Bad Boy parts for your 2016 ZT Elite parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 ZT Elite Engine - Kohler 725 & 747cc . If you are not able to find the Bad Boy parts for your 2016 ZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

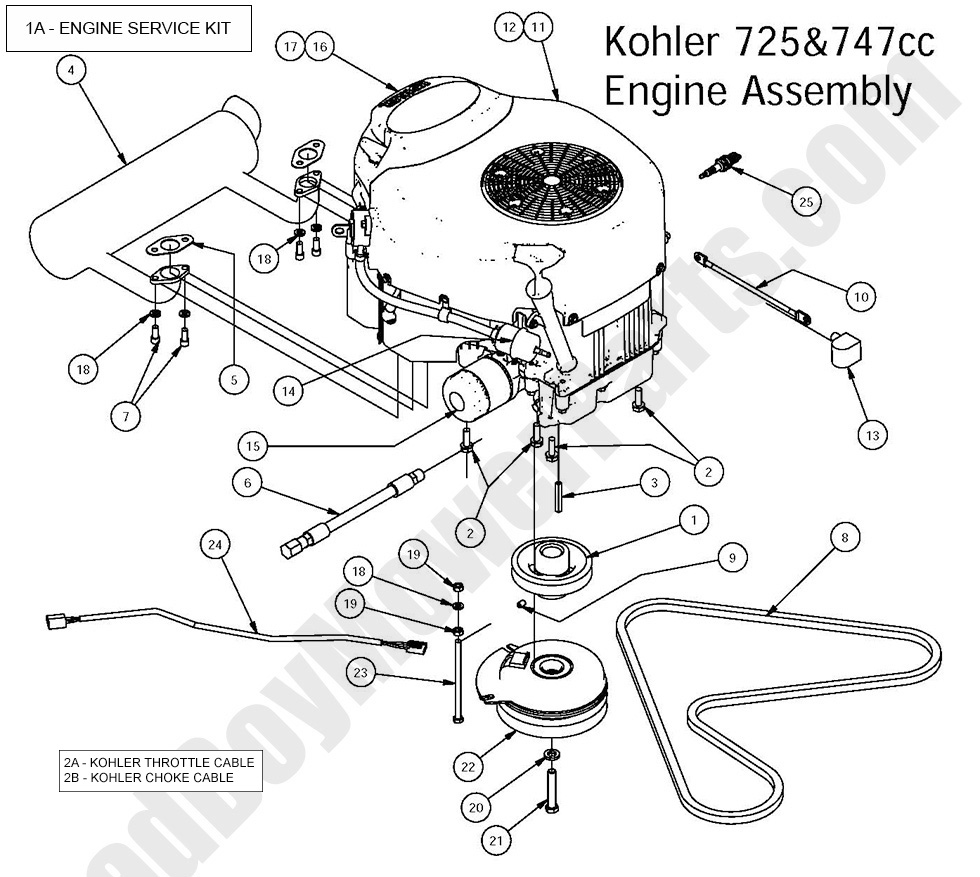

2016 ZT Elite Engine - Kohler 725 & 747cc
  Position Number SKU Product Title Price
1A 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47
1 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
2A 055-8020-00 055-8020-00 - Throttle-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable For MZ, ZT, CZT, Maverick, Rebel, Rogue, Outlaw XP Also Works On Outlaw & Pup/Lightning Models with 30hp Kohler (Not For 2013-2016 MZs With Kawasaki Engines)
$25.80
2 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
3 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
4 015-2750-00 015-2750-00 - Exhaust-27hp Kohler Courage
$340.74
5 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
6 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
7 018-8067-00 018-8067-00 - 5/16-18 X 3/4 SOCKET C/S
$2.99
8 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
9 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
10 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
11 015-2020-00 015-2020-00 - 25hp Kohler-48" 2014-2022 ZT KT740-3030 (obsolete)
use part #015-2018-00
$2567.99
12 015-2025-00 015-2025-00 - 26hp Kohler-2014 KT745-3031 (obsolete)
use part #015-2018-00
$2567.99
13 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
14 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
15 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$23.53
16 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$8.74
17 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$26.74
18 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
19 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
20 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
21 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
22 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
23 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
24 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
25 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
