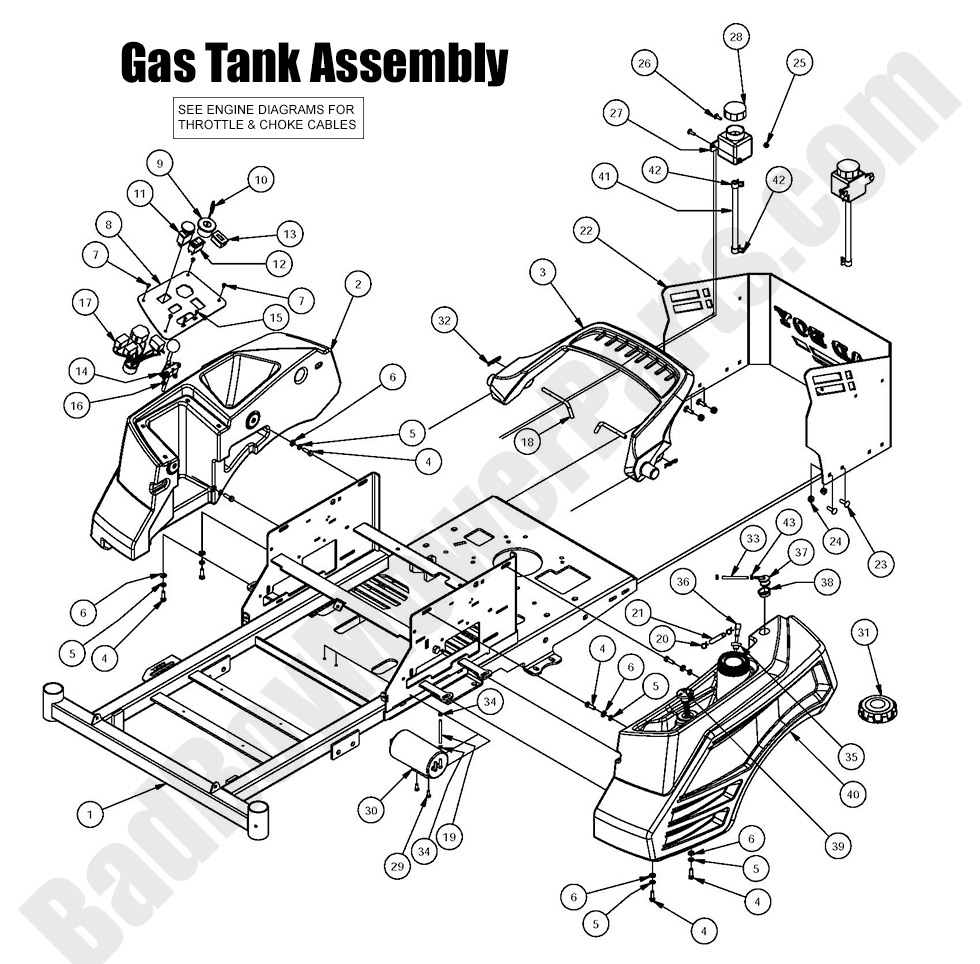

2016 ZT Elite - Gas Tank Assembly

2016 ZT Elite - Gas Tank Assembly

Introducing the 2016 ZT Elite Gas Tank Assembly, an engineered component designed to ensure secure fuel storage and delivery for your mower. Crafted from high-quality, corrosion-resistant materials, this gas tank assembly is built to withstand harsh operating conditions while maintaining consistent fuel flow. Its innovative design minimizes leakage risks and simplifies integration with the mower’s control systems, thereby enhancing overall performance and safety. Ideal for both commercial and residential applications, this assembly contributes to improved engine performance and reduced maintenance requirements. Detailed installation instructions and maintenance guidelines are provided to guarantee proper fit and long-term durability. For comprehensive schematics, verified components, and expert technical support, please refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for further details and guidance. Upgrade your mower with this gas tank assembly to achieve fuel management and operation every time.

Bad Boy Mower Parts Lookup

2016 ZT Elite - Gas Tank Assembly
  Position Number SKU Product Title Price
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 067-1000-50 067-1000-50 - 2014-2016 ZT Right Side Console
$199.99
3 067-1050-50 067-1050-50 - 2014-2016 ZT Spoiler
$85.59
4 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
5 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
6 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
7 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
8 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
9 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
10 042-9000-00 042-9000-00 - Ignition Key
$4.06
11 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
12 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
13 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
15 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
16 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
17 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
18 020-2014-00 020-2014-00 - Bent Pin For Spoiler 2014-2016 ZT
$7.36
19 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
20 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
21 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
22 026-0080-00 026-0080-00 - Rear Plate (See Models Used On For Details)
$229.99
23 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
24 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
25 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
26 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
27 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
28 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
30 067-0020-00 067-0020-00 - Carbon Canister
$62.40
31 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
32 020-2050-00 020-2050-00 - Cotter Pin-ZT Spoiler (See Models Used On For Details)
$2.99
33 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
34 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
35 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
36 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
37 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
39 067-4080-00 067-4080-00 - Fuel Gauge (See Models Used On For Details)
$32.09
40 067-1001-50 067-1001-50 - 2014-2016 ZT Left Fuel Tank
$449.99
41 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
42 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
43 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
