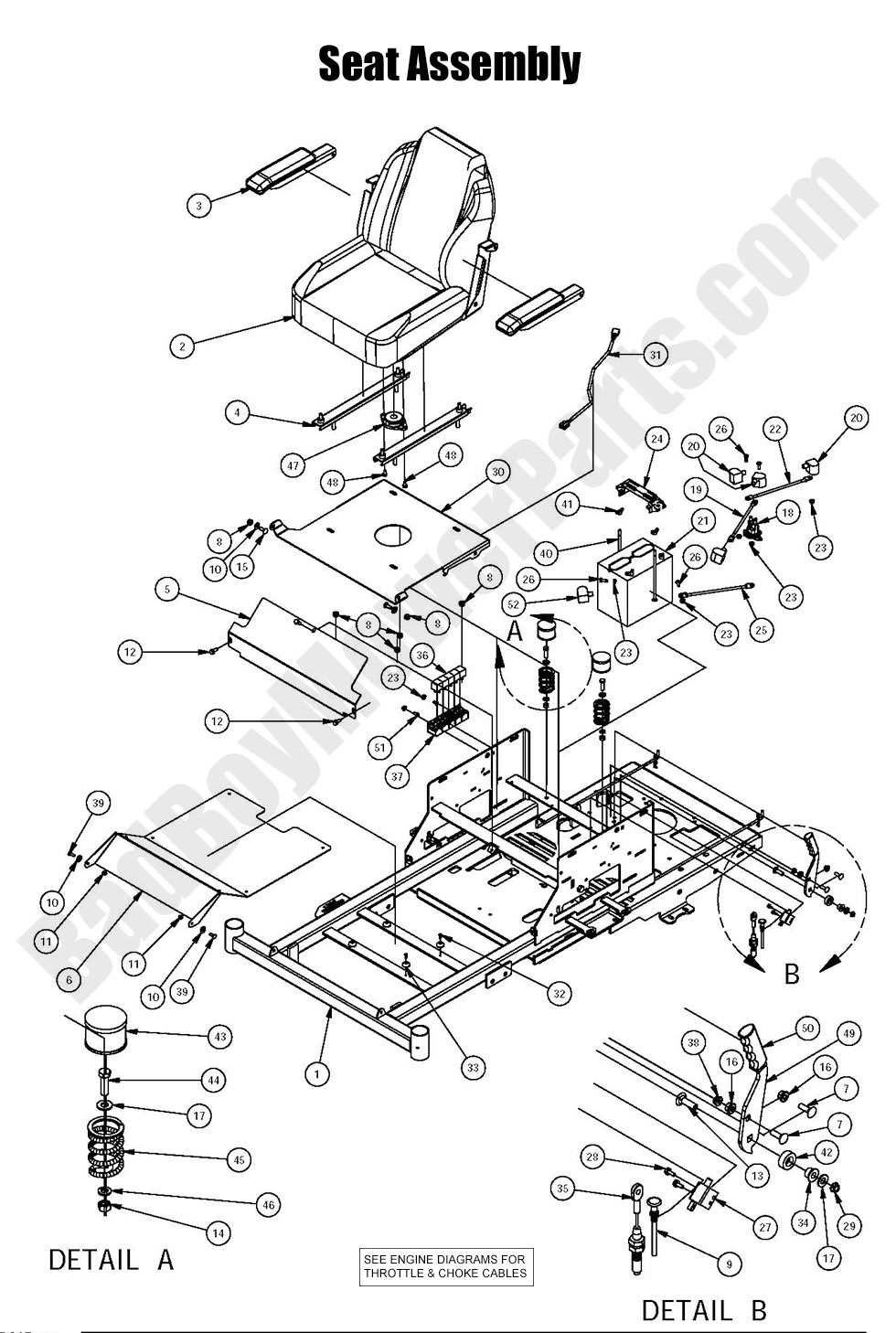

2016 ZT Elite - Seat Assembly

2016 ZT Elite - Seat Assembly

Introducing the 2016 ZT Elite Seat Assembly, an ergonomically designed component that provides superior comfort and support for the operator during mowing operations. This seat assembly is constructed from high-quality materials and engineered for durability, ensuring long-lasting performance even in demanding conditions. Its design promotes proper posture and reduces fatigue, making it ideal for both commercial landscaping and residential use. The assembly integrates seamlessly with the mower’s control system, offering easy adjustments and secure mounting for a stable ride. Detailed installation instructions and maintenance guidelines accompany the seat assembly to ensure optimal alignment and longevity. For detailed schematics, verified components, and expert technical support, please refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for further details and professional advice. Upgrade your mower with this seat assembly for enhanced comfort and performance every time. Experience unmatched.

Bad Boy Mower Parts Lookup

2016 ZT Elite - Seat Assembly
  Position Number SKU Product Title Price
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 071-2040-00 071-2040-00 - Black/Orange Seat 2018 & Older (See Models Used On For Details) (obsolete)
use part #071-2040-17
$559.99
3 071-2017-00 071-2017-00 - Armrest Pad for 071-2010-00
$49.68
4 071-2020-50 071-2020-50 - Seat Rails-Wise Seats (obsolete)
use part #071-2012-00
$112.99
5 014-3420-00 014-3420-00 - 2013-2015 CZT & 2013-2016 ZT Elite Cooler Cover
$64.19
7 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
8 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
12 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
13 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
17 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
18 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
19 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
20 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
22 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
23 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
24 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
25 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
26 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
27 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
28 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
29 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
30 026-1016-00 026-1016-00 - Seat Plate
$102.11
31 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
32 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
33 029-4010-00 029-4010-00 - Button Bumper
$2.99
34 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
35 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
36 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
37 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
38 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
39 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
40 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
41 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
42 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
43 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
44 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
45 034-8045-00 034-8045-00 - Seat Spring
$20.49
46 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
47 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
48 030-7041-00 030-7041-00 - 1/4-20x1/2 HWH Bolt Slot Type
$2.99
49 069-1000-00 069-1000-00 - Brake Handle Cam Lever
$7.28
50 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
51 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
52 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
