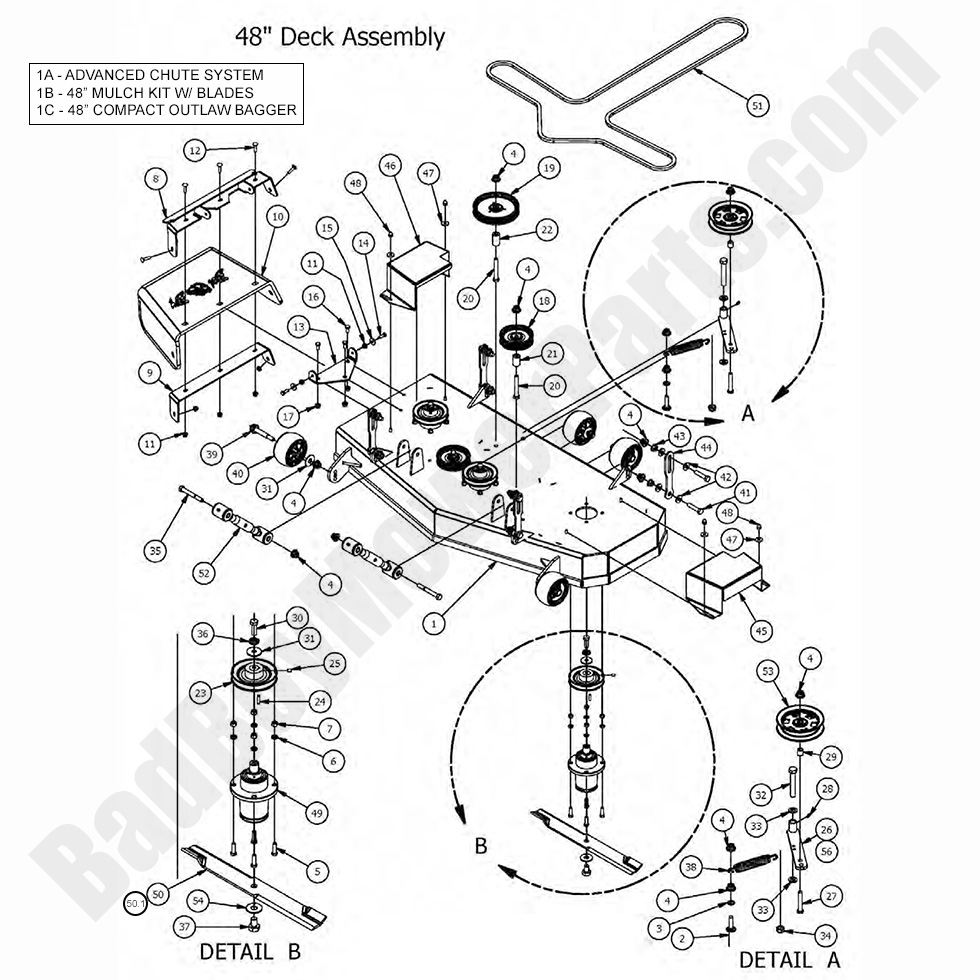

2017 Compact Outlaw - 48" Deck Assembly

2017 Compact Outlaw - 48" Deck Assembly

The 2017 Compact Outlaw 48" Deck Assembly provides a wider cutting path for increased efficiency and performance. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including reinforced spindles, durable cutting blades, deck belts, and pulleys to ensure long-lasting performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for precision and durability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct deck components for easy installation. Routine deck maintenance prevents belt wear, improves cutting quality, and extends component longevity. We provide Bad Boy Parts Online, making ordering quick and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Compact Outlaw 48" Deck Assembly is now more cost-effective. Order today to keep your deck cutting at peak efficiency and delivering a professional-quality mowing experience.

Bad Boy Mower Parts Lookup

2017 Compact Outlaw - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 088-1810-00 088-1810-00 - 48 Compact Outlaw 2 Bagger Paddle (2017-2020 only)
$2499.99
1 060-5448-00 060-5448-00 - 2016-2017 48" Compact Outlaw Deck
$1049.99
2 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
3 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
6 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
7 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
8 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
9 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
10 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
11 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
12 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
13 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
14 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
15 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
16 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
17 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
18 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
19 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
20 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
21 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
22 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
23 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
24 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
25 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
26 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
27 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
28 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
29 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
30 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
31 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
32 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
33 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
34 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
35 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
36 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
37 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
38 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
39 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
40A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
40 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
41 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
42 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
43 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
44 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60

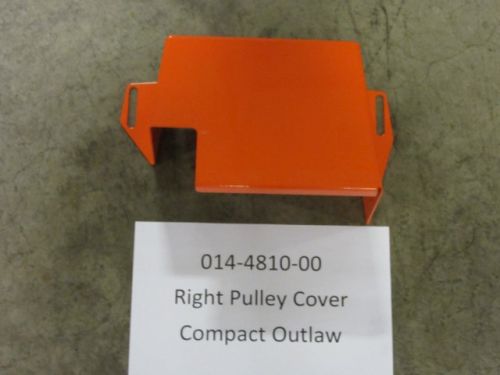

46 014-4810-00 014-4810-00 - Pulley Cover Compact Outlaw Right Side
$26.74
47 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
48 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
49 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
50.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
50 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
51 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
52 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
53 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
54 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
56 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
