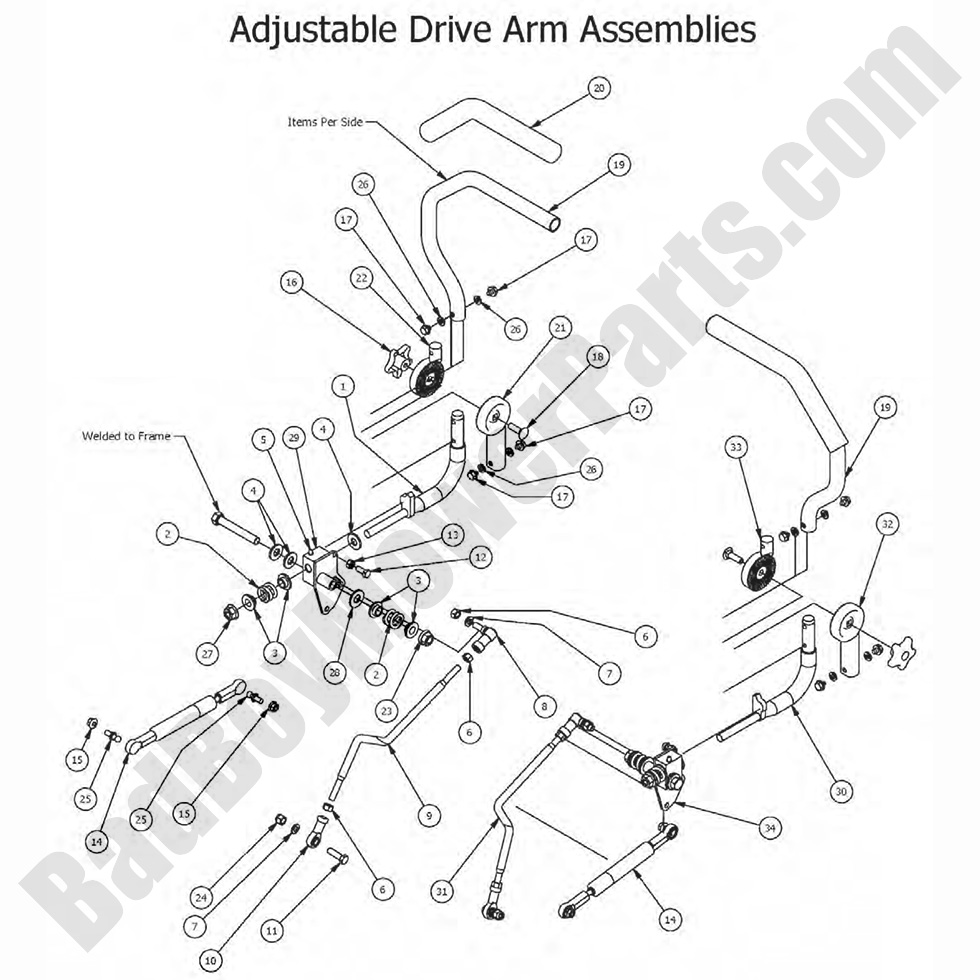

2017 Compact Outlaw - Adjustable Drive Arm Assembly

2017 Compact Outlaw - Adjustable Drive Arm Assembly

The 2017 Compact Outlaw Adjustable Drive Arm Assembly ensures smooth operation and superior maneuverability. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including adjustable drive arms, bushings, mounting brackets, and hydraulic components to maintain optimal steering and control. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for precise handling and longevity. Using our Bad Boy Mower Part diagrams, you can easily locate and order the correct drive arm assembly components for seamless installation. Routine maintenance of the drive system improves responsiveness, prevents misalignment, and extends the lifespan of your mower. We also offer Bad Boy Parts Online, making it simple to order the necessary components anytime. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Compact Outlaw Adjustable Drive Arm Assembly is now more budget-friendly. Order today for improved control, stability, and long-term durability.

Bad Boy Mower Parts Lookup

2017 Compact Outlaw - Adjustable Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
2 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
7 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
8 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
9 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
10 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
11 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
12 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
13 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
14 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
15 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
16 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
17 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
17 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
19 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
19a 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
19b 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
20 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
21 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
22 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
23 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
24 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
25 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
26 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
27 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
28 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
29 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
30 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
31 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
32 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
33 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
34 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
