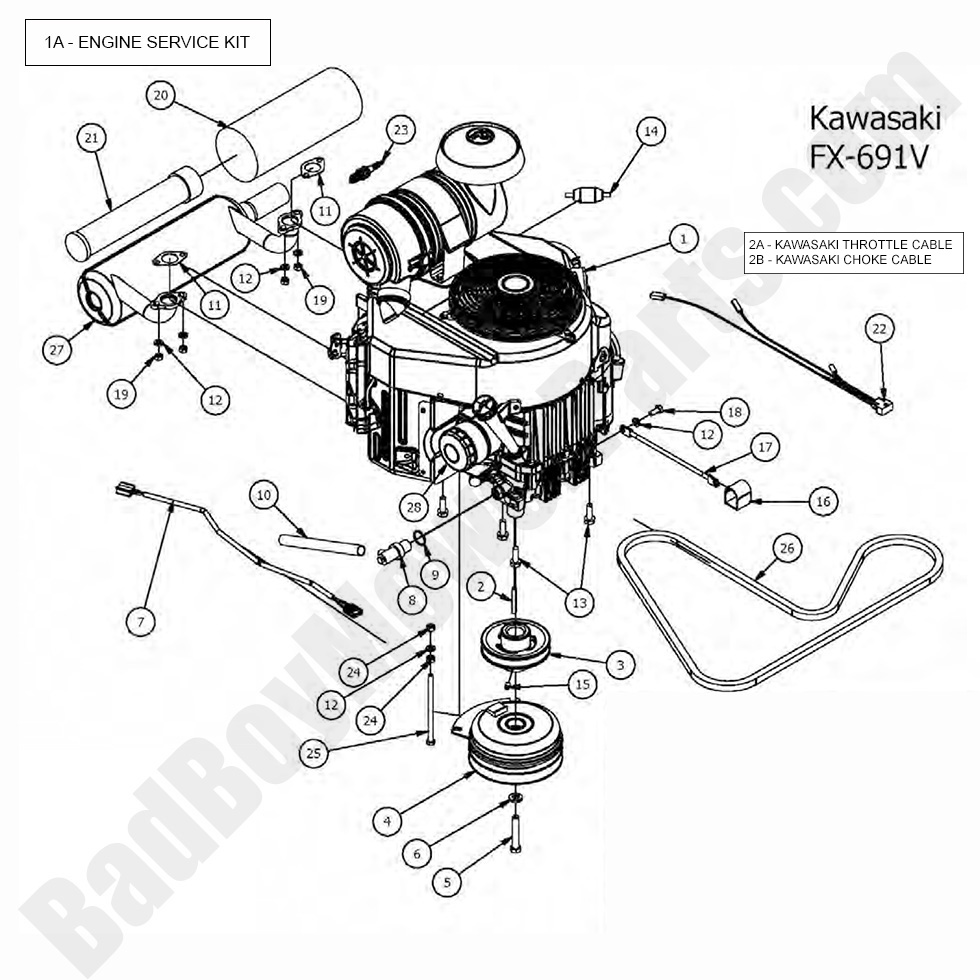

2017 Compact Outlaw Engine - Kawasaki FX-691V

Engine - Kawasaki FX-691V

The Bad Boy Mower Engine - Kawasaki FX-691V for the 2017 Compact Outlaw is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Compact Outlaw models as well. Find all of your Bad Boy mowers 2017 Compact Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Compact Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Compact Outlaw Engine - Kawasaki FX-691V
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
1 015-0691-00 015-0691-00 - FX691 Kawasaki Compact Outlaw
$2780.93
2A 055-8020-00 055-8020-00 - Throttle-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
4 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
5 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
6 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
7 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
8 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$28.11
9 015-5403-00 015-5403-00 - O Ring for Oil Drain - Kawasak
$7.28
10 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
11 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
12 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
13 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
14 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
15 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
16 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
17 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
18 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
19 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
20 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
21 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
22 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
23 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
24 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
25 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
26 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
27 015-0052-00 015-0052-00 - 2017-2024 Kawasaki Exhaust MZ/ZT/Mav/Comp
$232.70
28 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$18.18
