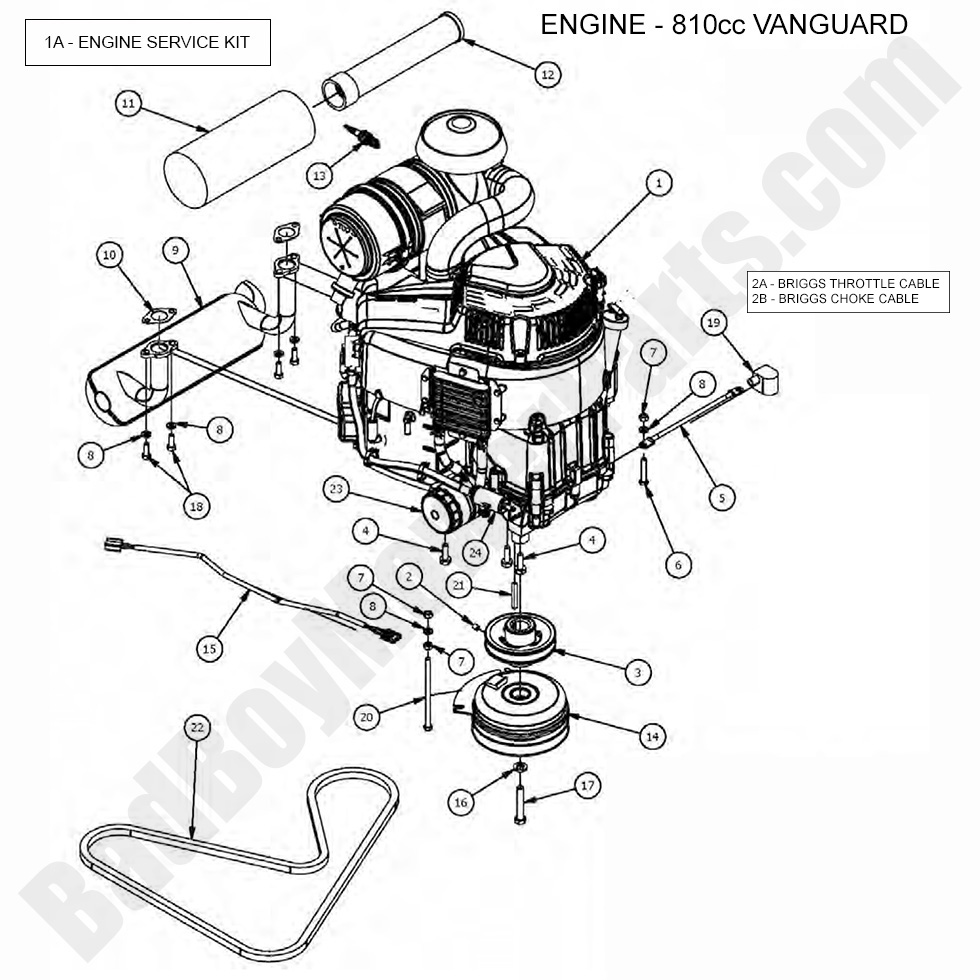

2017 Compact Outlaw - Engine - Vanguard 810

2017 Compact Outlaw - Engine - Vanguard 810

The 2017 Compact Outlaw Engine - Vanguard 810 is built for power and efficiency, requiring routine maintenance to deliver optimal performance. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including air filters, oil filters, ignition coils, spark plugs, and cooling fans to ensure smooth operation. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for durability and longevity. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct Vanguard 810 engine components for easy installation. Regular maintenance prevents overheating, enhances fuel efficiency, and prolongs the life of your mower. We also stock Bad Boy Parts Online, making it simple to find and order the necessary parts from the convenience of your home. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Compact Outlaw Engine - Vanguard 810 is now more affordable. Order today to ensure long-lasting engine performance and peak mowing efficiency.

Bad Boy Mower Parts Lookup

2017 Compact Outlaw - Engine - Vanguard 810
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1 015-0810-00 015-0810-00 - 810cc Vanguard Engine 26hp
$1999.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
4 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
5 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
6 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99
10 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
11 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
12 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
13 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
14 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
15 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
16 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
17 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
18 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
19 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
20 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
21 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
22 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
23 063-8018-00 063-8018-00 - Oil Filter
$21.39
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
