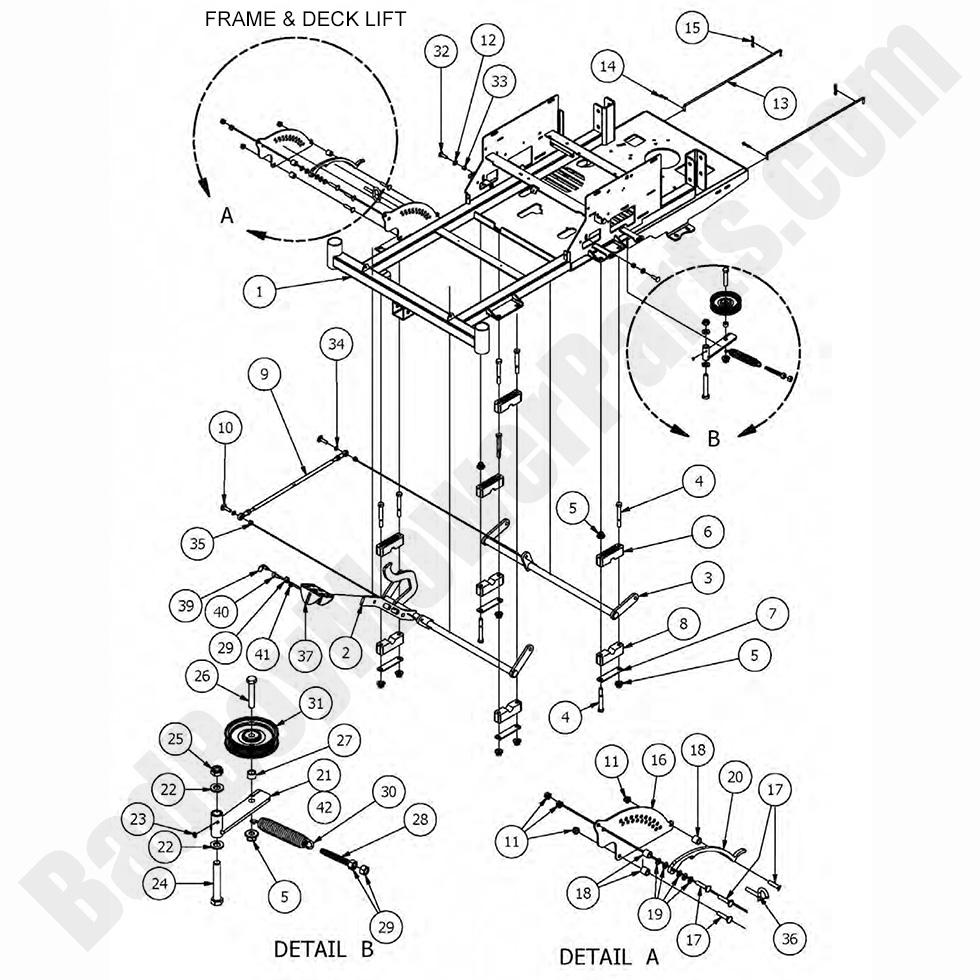

2017 Compact Outlaw - Frame & Deck Lift

2017 Compact Outlaw - Frame & Deck Lift

The 2017 Compact Outlaw Frame & Deck Lift system provides structural support and precise cutting height adjustments for superior mowing results. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including frame reinforcements, deck lift arms, bushings, hydraulic lifts, and mounting brackets to ensure stability and durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements for long-term reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct frame and deck lift components for seamless installation. Routine maintenance ensures smooth deck height adjustments, prevents structural wear, and enhances overall mower performance. We also stock Bad Boy Parts Online, allowing you to order necessary replacements easily. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Compact Outlaw Frame & Deck Lift is now more cost-effective. Order today to ensure superior cutting precision, deck stability, and long-lasting durability.

Bad Boy Mower Parts Lookup

2017 Compact Outlaw - Frame & Deck Lift
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5500-17 070-5500-17 - 2017 Compact Outlaw Frame Not Backwards Compatible
$1049.99
2 028-0005-00 028-0005-00 - Actuator Bar Front (See Models Used On For Detail)
$88.80
3 028-0006-00 028-0006-00 - Actuator Bar Rear-Compact Outlaw
$72.75
4 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
7 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
8A 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
8 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
9 028-7000-00 028-7000-00 - 2016-2017 Actuator Bar Linkage Assy Compact Outlaw
$21.39
10 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
14 044-2004-00 044-2004-00 - Bow Pin
$2.99
15 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
16 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
17 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
20 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
21 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
22 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
23 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
24 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
25 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
26 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
27 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
28 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
29 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
30 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
31 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
32 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
33 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
34 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
35 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
36 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
37 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
39 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
40 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
41 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
42 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
