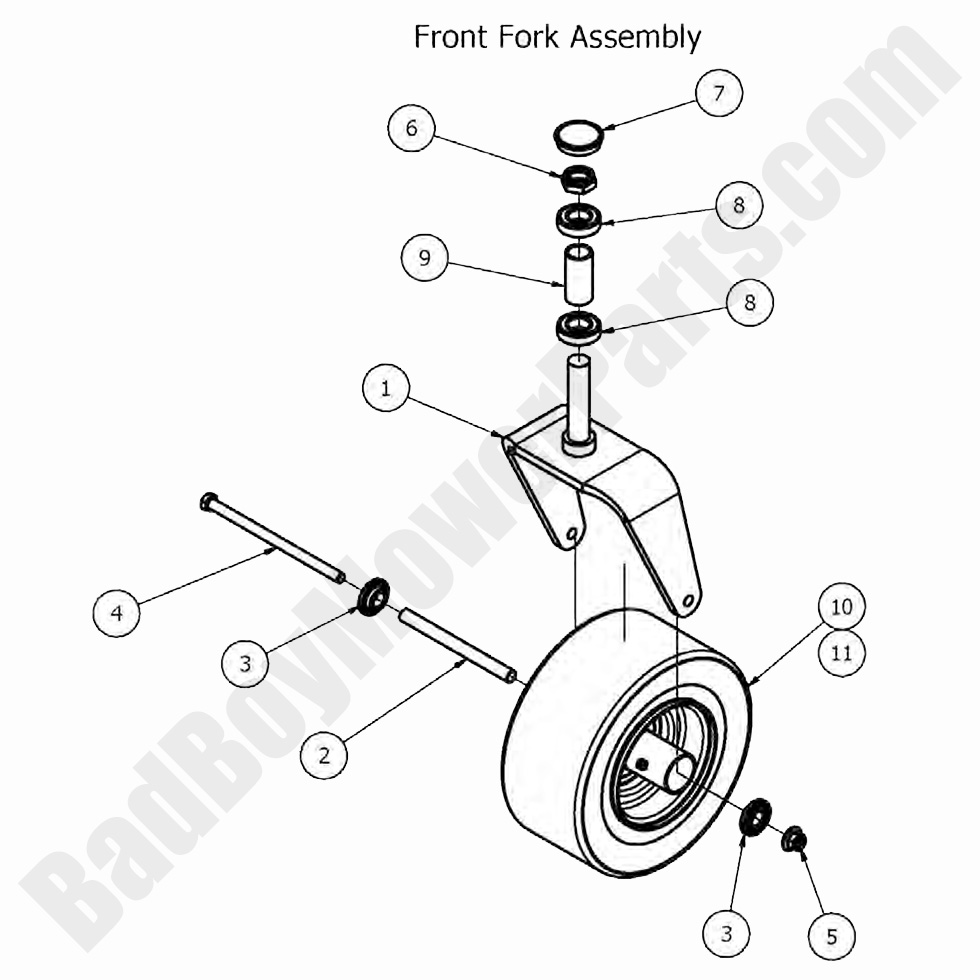

Click Image to Change Diagram
The 2017 Compact Outlaw Front Fork Assembly plays a crucial role in maintaining smooth maneuverability and steering precision. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including caster wheels, bearings, pivot arms, and mounting brackets to keep your mower operating efficiently. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for superior durability and performance. With our Bad Boy Mower Part diagrams, you can easily locate and order the correct front fork assembly components for quick installation. Routine maintenance of the front fork improves steering accuracy, reduces vibrations, and extends the lifespan of critical mower components. We also offer Bad Boy Parts Online, making it easy to order the necessary parts from anywhere. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Compact Outlaw Front Fork Assembly is now more affordable. Order today for improved handling, smoother operation, and long-lasting reliability.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 023-7913-00 | 023-7913-00 - Front Fork-Non Suspension |
$139.99
|
||
2 | 025-5202-00 | 025-5202-00 - Front Wheel Spanner-All Models Except MZ |
$10.44
|
||
3 | 022-7010-00 | 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel |
$20.32
|
||
4 | 018-7010-00 | 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc |
$5.82
|
||
5 | 013-8050-00 | 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon |
$2.99
|
||
6 | 013-9004-00 | 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread |
$3.62
|
||
7 | 014-2025-00 | 014-2025-00 - Caster Bearing Cover (See Models Used On For Details) |
$2.99
|
||
8 | 010-1050-00 | 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details) |
$18.39
|
||
9 | 025-0003-00 | 025-0003-00 - Front Bearing Spacer |
$14.04
|
||
10 | 022-3085-00 | 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly |
$112.99
|
||
11 | 022-5347-00 | 022-5347-00 - 13 x 6.50 - 6 Tire |
$96.29
|
