2017 Compact Outlaw - Seat Frame

2017 Compact Outlaw - Seat Frame

The 2017 Compact Outlaw Seat Frame ensures stability and comfort, providing a secure base for the operator during long mowing sessions. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including reinforced seat frames, ergonomic cushions, shock absorbers, and mounting hardware for maximum durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built to enhance operator comfort and control. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct seat frame components for easy installation. Routine maintenance helps prevent structural wear, improves seating stability, and ensures a smooth mowing experience. We provide Bad Boy Parts Online, allowing you to find and order necessary parts anytime. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Compact Outlaw Seat Frame is now more budget-friendly. Order today for enhanced operator comfort, improved durability, and long-lasting performance.

Bad Boy Mower Parts Lookup

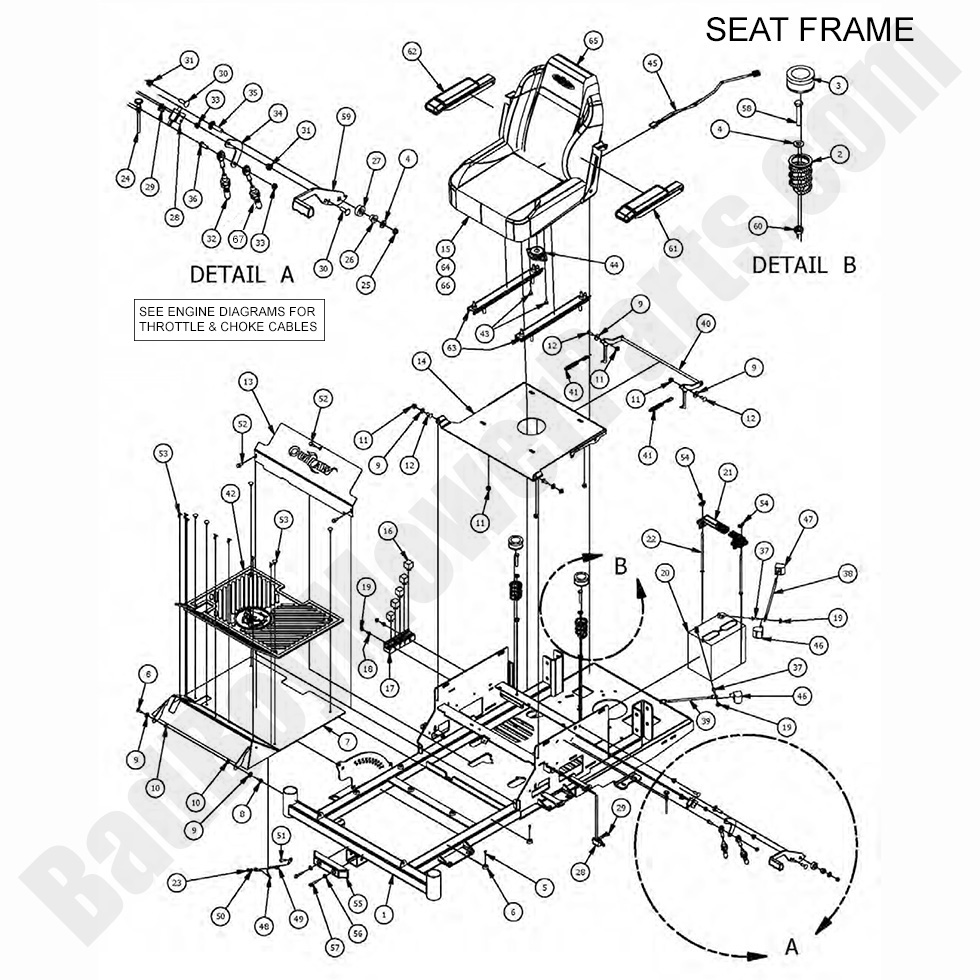

2017 Compact Outlaw - Seat Frame
  Position Number SKU Product Title Price
1 070-5500-17 070-5500-17 - 2017 Compact Outlaw Frame Not Backwards Compatible
$1049.99
2 034-8045-00 034-8045-00 - Seat Spring
$20.49
3 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
4 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
5 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
6 029-4010-00 029-4010-00 - Button Bumper
$2.99
7 079-3120-00 079-3120-00 - 2016-2017 Compact Outlaw Floor Panel Assembly
$106.99
8 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
11 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
12 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
13 014-3500-00 014-3500-00 - Compact Outlaw Cooler Cover
$64.19
14 026-1016-00 026-1016-00 - Seat Plate
$102.11
15 071-5055-00 071-5055-00 - 2016-2018 Compact Outlaw Seat
$499.99
16 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
17 086-3050-17 086-3050-17 - 2010-2018 CZT/ZT/Maverick/Comp. Outlaw & 2016-2018 MZ/MZ Magnum Complete Harness
$299.99
18 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
21 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
22 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
23 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
25 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
26 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
27 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
28 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
29 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
30 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
31 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
32 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
33 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
34 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72
35 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
36 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
37 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
38 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
39 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
40 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
41 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
42 081-1000-00 081-1000-00 - 2016-2017 Compact Outlaw Floor Mat
$53.49
43 030-7041-00 030-7041-00 - 1/4-20x1/2 HWH Bolt Slot Type
$2.99
44 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
45 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
46 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
47 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
48 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
49 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
50 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
51 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
52 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
53 040-6090-00 040-6090-00 - Ratchet Fastener - Floorboard (obsolete)
use part #040-6080-00
$2.99
54 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
55 029-7038-00 029-7038-00 - 8 Bumper
$28.32
56 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
57 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
58 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
59 069-1050-00 069-1050-00 - Brake Handle Cam Over (See Models Used On For Details)
$18.45
59a 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
60 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
61 071-5056-00 071-5056-00 - Left Armrest w/Pad-071-5055-00
$70.97
62 071-5057-00 071-5057-00 - Right Armrest w/Pad For 071-5055-00
$110.99
63 071-2020-50 071-2020-50 - Seat Rails-Wise Seats (obsolete)
use part #071-2012-00
$112.99
64 071-2013-00 071-2013-00 - Seat Belt for All Models w/Hardware
$119.36
65 071-5058-00 071-5058-00 - Back Cover for 071-5055-00
$149.99
67 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
