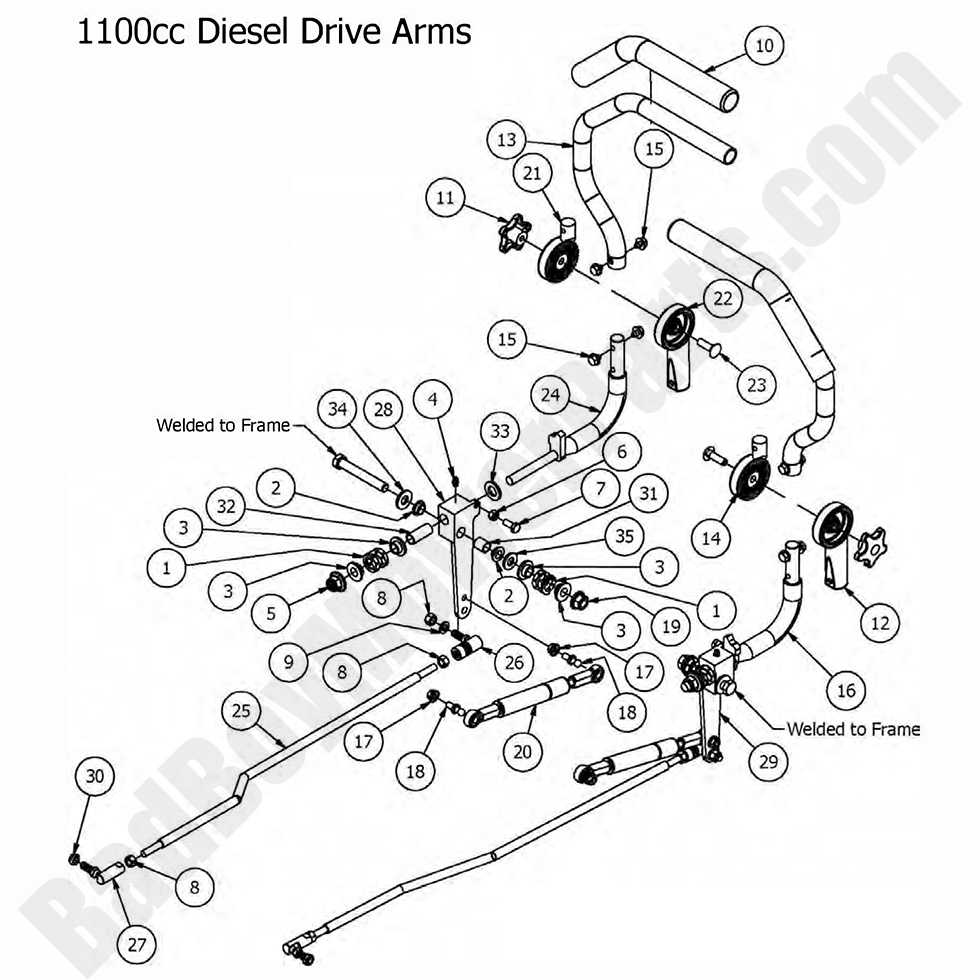

2017 Diesel - 1100cc - Drive Arms

2017 Diesel - 1100cc - Drive Arms

The 2017 Diesel - 1100cc Drive Arms ensure smooth steering control and reliable power transfer for precision maneuvering. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including adjustable drive arms, bushings, mounting hardware, and hydraulic components for superior operation. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for durability and efficiency. With our Bad Boy Mower Part diagrams, you can quickly locate and order the correct drive arm components for easy installation. Routine maintenance of the drive system improves handling, prevents misalignment, and extends the mower’s lifespan. We also stock Bad Boy Parts Online, making ordering replacement parts fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Diesel - 1100cc Drive Arms is now more affordable. Order today to enhance control, stability, and long-lasting reliability for an effortless mowing experience.

Bad Boy Mower Parts Lookup

2017 Diesel - 1100cc - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
7 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
8 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
11 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49

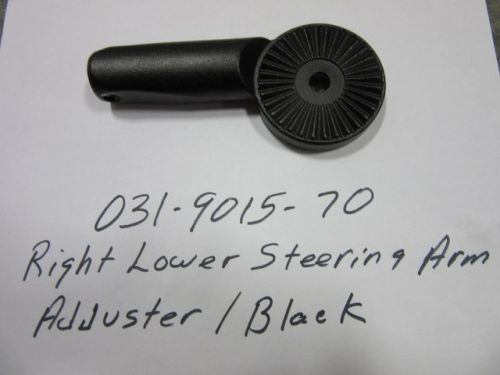

12 031-9015-70 031-9015-70 - Right Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
13 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
13a 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
13b 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50

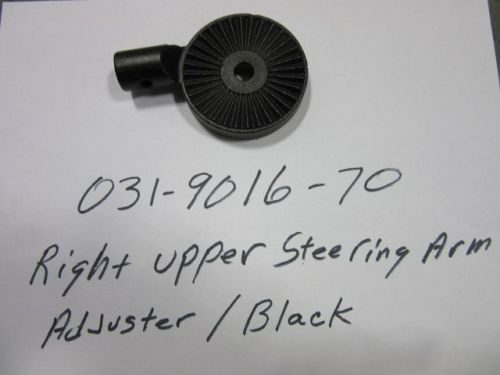

14 031-9016-70 031-9016-70 - Right Upper Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
15 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99

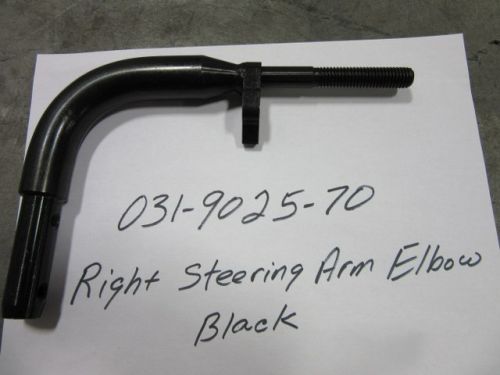

16 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
17 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
18 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
19 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
20 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
21 031-9017-70 031-9017-70 - Left Upper Steering Arm Adjuster-Black (See Models Used On For Details)
$53.24

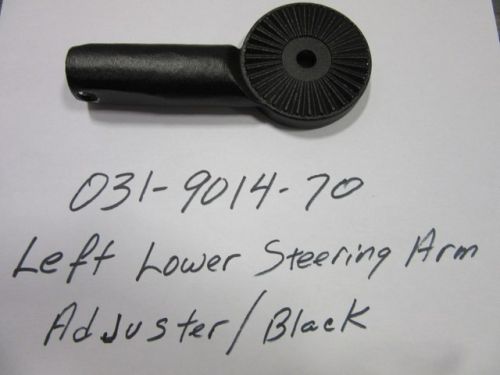

22 031-9014-70 031-9014-70 - Left Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
23 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99

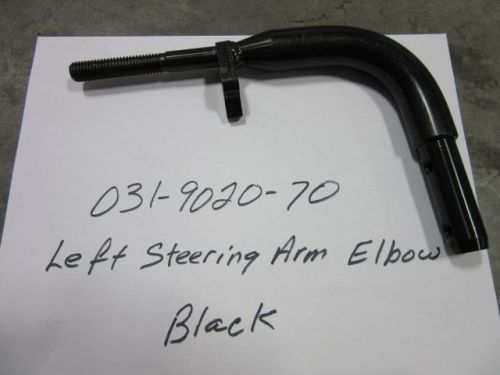

24 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
25 035-6060-00 035-6060-00 - Steering Push Rod (See Models Used On For Details)
$35.67
26 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
27 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
28 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
29 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
30 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
31 032-1010-00 032-1010-00 - Drive Arm Block Sleeve Short -
$5.82
32 032-1020-00 032-1020-00 - Drive Arm Block Sleeve - Long (See Models Used On For Details)
$6.56
33 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
34 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
35 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
