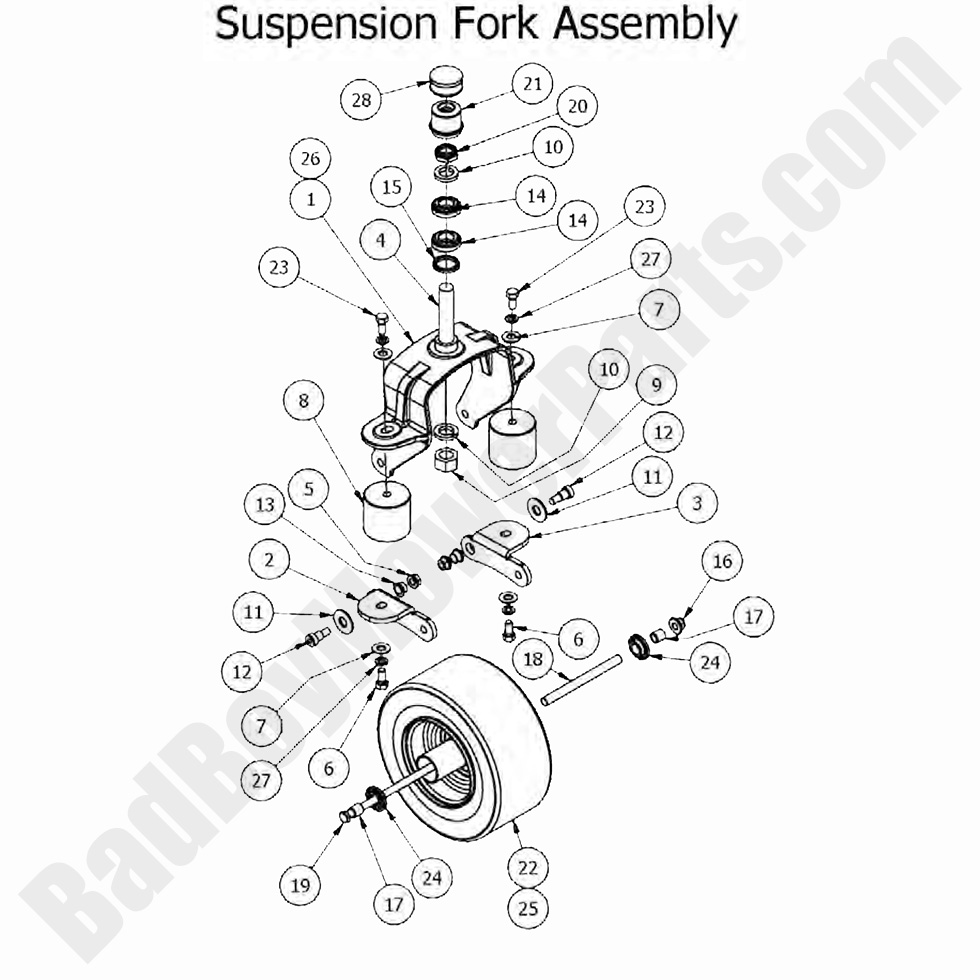

2017 Diesel - 1100cc - Front Suspension Fork Assembly

2017 Diesel - 1100cc - Front Suspension Fork Assembly

The 2017 Diesel - 1100cc Front Suspension Fork Assembly plays a vital role in maintaining smooth maneuverability and stability. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including front fork assemblies, caster wheels, bearings, and suspension components for enhanced performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for durability and smooth handling. With our Bad Boy Mower Part diagrams, you can quickly locate and order the correct front fork assembly components for simple installation. Routine maintenance prevents steering issues, reduces vibrations, and enhances overall mower control. We provide Bad Boy Parts Online, allowing you to order essential components anytime, anywhere. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Diesel - 1100cc Front Suspension Fork Assembly is now more budget-friendly. Order today to enjoy smoother steering, enhanced stability, and long-lasting durability for effortless mowing.

Bad Boy Mower Parts Lookup

2017 Diesel - 1100cc - Front Suspension Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2020 Diesel Suspension Fork Top/Side Combo
$263.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
8 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
9 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
10 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
11 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
12 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
13 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
14A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
14 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
15A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
15 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
18 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
19 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
20 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
21 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
23 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
24 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
25 022-1050-00 022-1050-00 - 13 x 6.50-6 No-Flat Tire and Wheel Assembly
$177.99
26 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
27 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
28 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
