2017 Diesel - 1100cc - Pump Plate Assembly

2017 Diesel - 1100cc - Pump Plate Assembly

The 2017 Diesel - 1100cc Pump Plate Assembly is a crucial part of the hydraulic system, ensuring smooth power transfer to keep your mower operating at peak performance. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including pump plates, seals, hydraulic fittings, and mounting hardware for reliability and durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for efficient hydraulic power distribution. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct pump plate assembly components for easy installation. Routine maintenance of the hydraulic system prevents pressure loss, reduces component wear, and ensures smooth operation. We also stock Bad Boy Parts Online, making it simple to order essential replacement parts when needed. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Diesel - 1100cc Pump Plate Assembly is now more cost-effective. Order today for seamless hydraulic performance and long-term reliability.

Bad Boy Mower Parts Lookup

2017 Diesel - 1100cc - Pump Plate Assembly
  Position Number SKU Product Title Price
1 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$109.99
2 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
3 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22

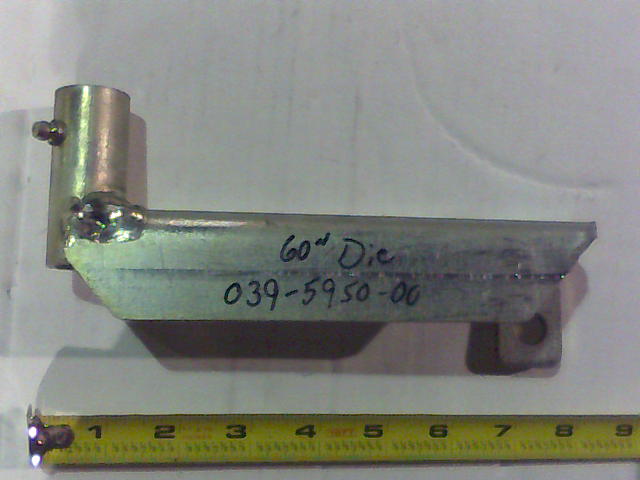

5 039-5950-00 039-5950-00 - Pump Idler Bracket 60 Diesel
$32.65
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
8 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
9 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48

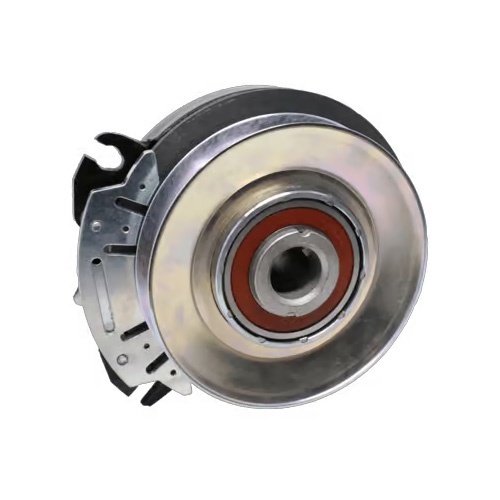

10 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch
$399.00
11 032-4000-00 032-4000-00 - Rubber for Rear Diesel Motor Mount
$76.53
13 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
14 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
15 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
16 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
19 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
20 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
21 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
23 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94

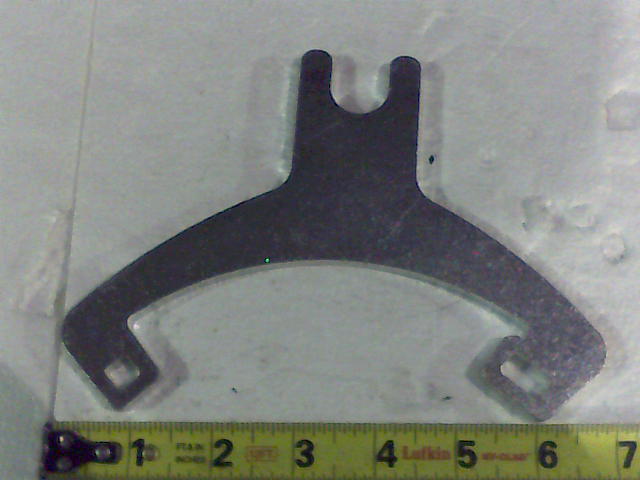

24 057-5910-10 057-5910-10 - 2010-2020 Diesel PTO Engager Holder
$22.71
25 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
26 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59

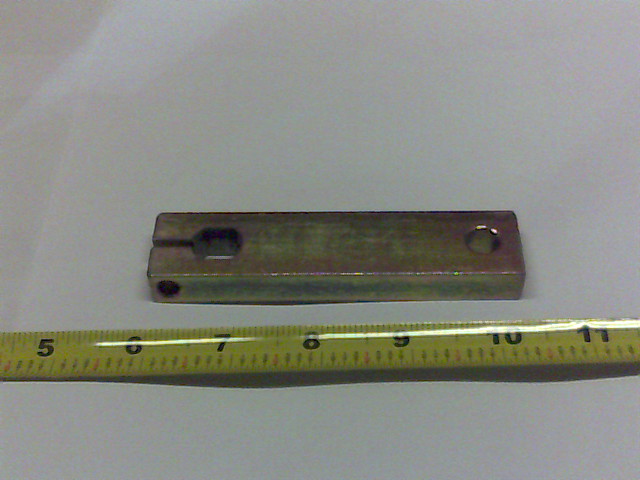

27 031-5923-00 031-5923-00 - Pump Arm
$30.07
28 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
29 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 Hex Bolt
$2.99
30 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
31 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
32 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
33 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
35 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
36 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
37 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
38 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
39 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
40 018-7055-00 018-7055-00 - 3/8-16 x 5 Hex Bolt -
$2.99
41 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
42 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
43 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
47 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$150.99
48 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
49 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
50 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
51 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
52 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
53 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
54 039-5946-98 039-5946-98 - Pump Idler Bracket Assy Diesel
$56.77

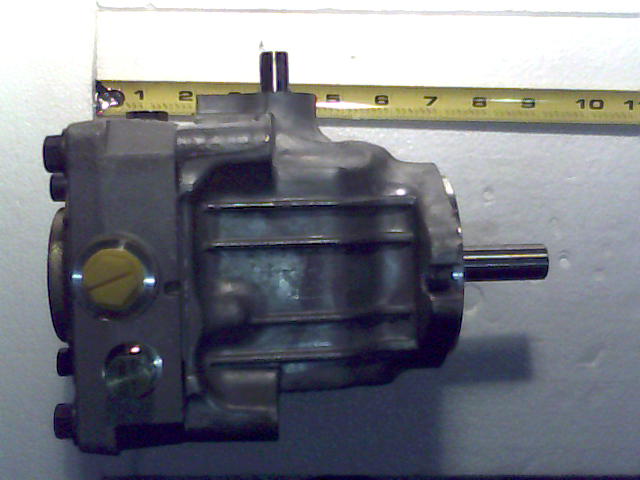

55 050-5308-00 050-5308-00 - Left Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99

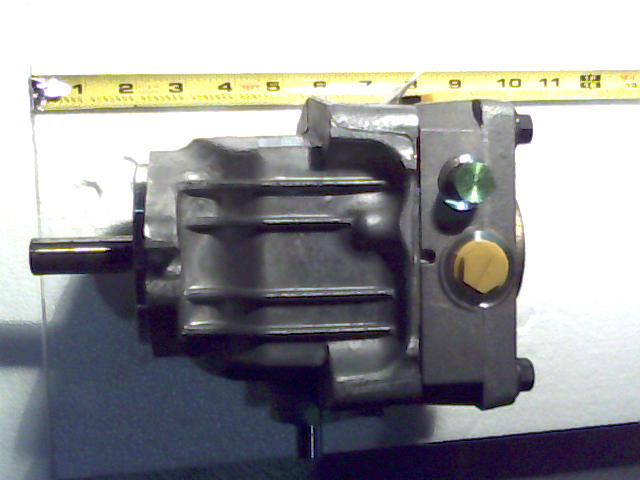

56 050-5407-00 050-5407-00 - Right Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99

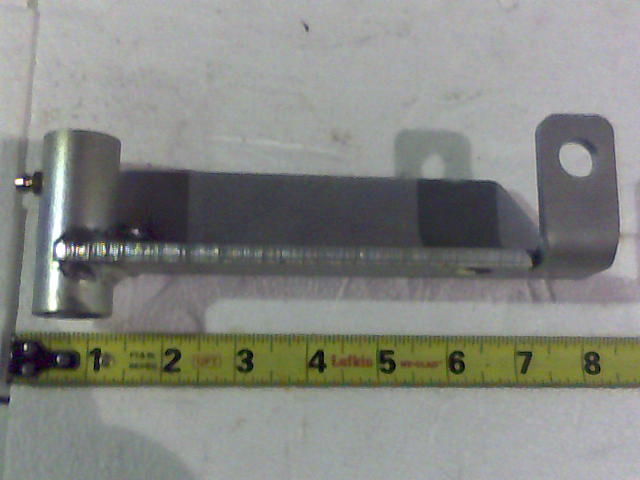

58 039-5945-00 039-5945-00 - Diesel Pump Idler 72 (35HP)
$32.65
59 039-5945-98 039-5945-98 - Pump Idler 72" (35HP) Assy (See Models Used On For Details)
$56.77
60 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
61 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
62 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
63 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
64 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99

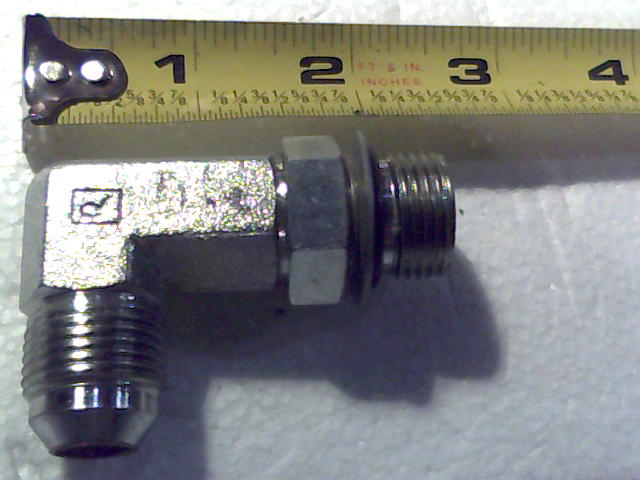

344 024-2080-00 024-2080-00 - 90 Degree Adaptor-Diesel Models (See Models Used On For Details)
$9.67
