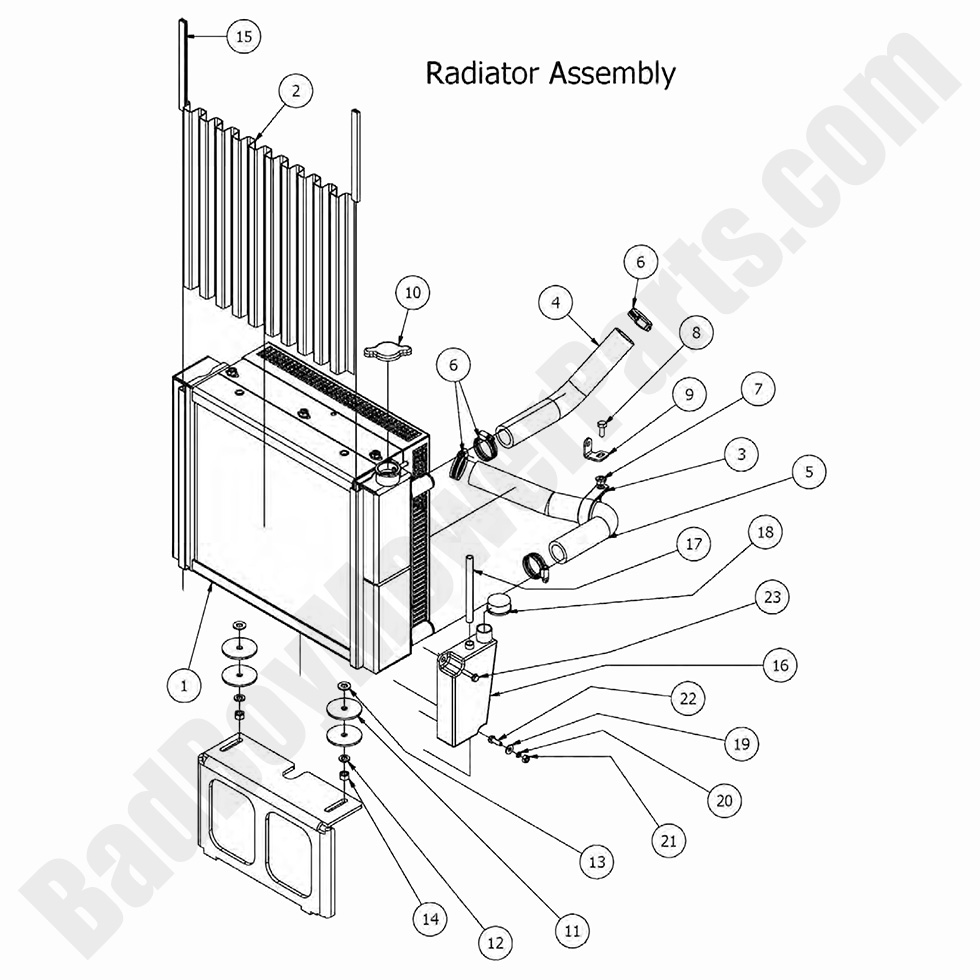

2017 Diesel - 1100cc - Radiator Assembly

2017 Diesel - 1100cc - Radiator Assembly

The 2017 Diesel - 1100cc Radiator Assembly is responsible for cooling the diesel engine and preventing overheating during extended mowing sessions. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including radiators, cooling fans, hoses, and coolant reservoirs for efficient heat dissipation. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for durability and long-term performance. With our Bad Boy Mower Part diagrams, you can quickly locate and order the correct radiator components for simple installation. Routine radiator maintenance helps prevent overheating, improves engine efficiency, and extends the mower’s lifespan. We provide Bad Boy Parts Online, making ordering the necessary parts fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Diesel - 1100cc Radiator Assembly is now more affordable. Order today to ensure optimal cooling, efficient engine performance, and long-lasting durability for high-demand mowing applications.

Bad Boy Mower Parts Lookup

2017 Diesel - 1100cc - Radiator Assembly
  Position Number SKU Product Title Price
1 061-5000-00 061-5000-00 - Radiator - Diesel Models (See Models Used On For Details)
$999.99
2 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
3 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
4 051-3000-00 051-3000-00 - 2010-2020 Top Radiator Hose - Diesel
$22.03
5 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
6 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
10 015-0104-00 015-0104-00 - CAT Diesel Radiator Cap
$31.22
11 019-5050-00 019-5050-00 - 3/8 X 2-1/4 OD Fibre Washer
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 084-4015-00 084-4015-00 - Rubber Trim
$10.99
16 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89
17 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99
18 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
19 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
20 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
21 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
22 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
23 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
