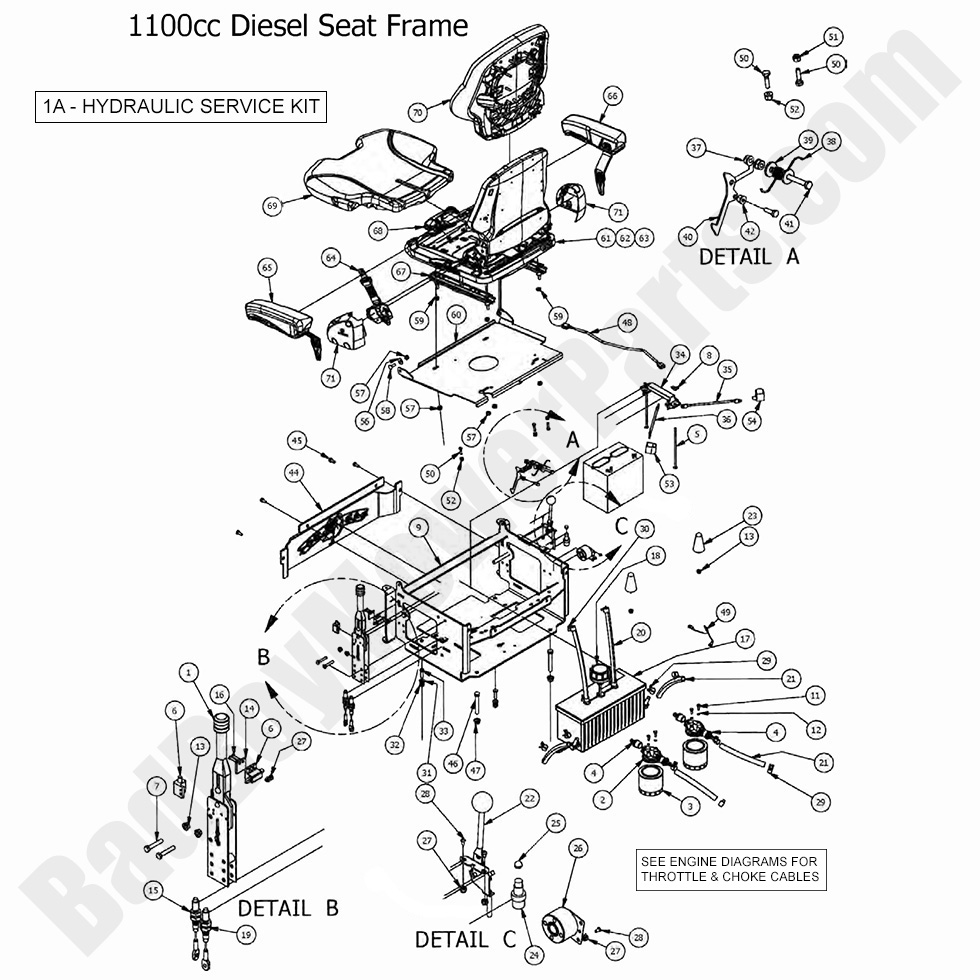

2017 Diesel - 1100cc - Seat Frame

2017 Diesel - 1100cc - Seat Frame

The 2017 Diesel - 1100cc Seat Frame provides a sturdy base for the operator’s seat, ensuring comfort and stability during long mowing sessions. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including reinforced seat frames, ergonomic cushions, shock absorbers, and mounting hardware for superior durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for comfort and long-term use. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct seat frame components for seamless installation. Routine maintenance helps prevent frame wear, enhances seating stability, and ensures smooth operation. We offer Bad Boy Parts Online, making it easy to find and order replacement parts anytime. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Diesel - 1100cc Seat Frame is now more cost-effective. Order today for improved operator comfort, enhanced durability, and long-lasting performance.

Bad Boy Mower Parts Lookup

2017 Diesel - 1100cc - Seat Frame
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 069-8054-00 069-8054-00 - Brake Handle Kit
$119.41
2 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
3 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
4 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
5 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
6 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
8 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
9 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
13 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
14 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
15 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
16 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
18 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
19 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
20 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
21 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
23 034-1000-00 034-1000-00 - Spring Cushion (See Models Used On For Detail)
$28.39
24 077-6000-00 077-6000-00 - Momentary Start Switch Preheat Button for Diesel
$21.39
25 014-6000-00 014-6000-00 - Start Switch Boot - Diesel
$6.59
26 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
27 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
28 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
29 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
30 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
31 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
32 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
33 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
34 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
35 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
36 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
37 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
38 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
39 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
40 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
41 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
42 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
44 014-2009-00 014-2009-00 - Cooler Cover (See Models Used On For Details)
$117.94
45 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
46 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
47 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
48 070-2005-00 070-2005-00 - Pigtail for a Grammer Seat (See Models Used On For Details)
$42.58
49 064-8081-00 064-8081-00 - Seat Cable
$15.60
50 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
51 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
53 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
54 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
58 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
60 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
61 071-4055-00 071-4055-00 - Grammer Seat w/Seatbelt Use w/seat with ROPS (obsolete)
use part #071-4055-17
$959.99
62 071-4050-00 071-4050-00 - Grammer Suspension Seat Use w/o ROPS - Obsolete - USE PART #071-4050-17 (obsolete)
use part #071-4050-17
$759.99
63 071-4060-00 071-4060-00 - Black/Orange Grammer Seat
$1060.21
64 071-4053-00 071-4053-00 - Seat Belt Kit-Grammer Seats (See Models Used On For Details)
$109.99
65 071-4051-00 071-4051-00 - Left Armrest Kit-Grammer Seat
$116.70
66 071-4052-00 071-4052-00 - Right Armrest Kit-Grammer Seat
$96.29
67 071-4054-00 071-4054-00 - Seat Rails for Grammer Seat(2)
$109.46
68 071-4059-00 071-4059-00 - Grey Handle for Grammer Seat
$60.98
70 071-7000-00 071-7000-00 - Back Cushion for 071-4050-00
$145.99
71 014-4050-00 014-4050-00 - Black Plastic Cover Kit forGrammer Seat (Both Sides)
$35.30
