2017 Diesel - 1500cc - Back Pump Cover

2017 Diesel - 1500cc - Back Pump Cover

The 2017 Diesel - 1500cc Back Pump Cover protects vital hydraulic system components, ensuring long-lasting durability and efficiency. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including pump covers, hydraulic seals, mounting brackets, and fluid reservoirs to keep your mower’s hydraulic system protected. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for maximum durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct back pump cover components for simple installation. Routine maintenance prevents leaks, reduces wear, and keeps your mower operating at peak efficiency. We offer Bad Boy Parts Online, making ordering replacement components fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Diesel - 1500cc Back Pump Cover is now more cost-effective. Order today to protect your mower’s hydraulic system and ensure long-lasting, reliable operation.

Bad Boy Mower Parts Lookup

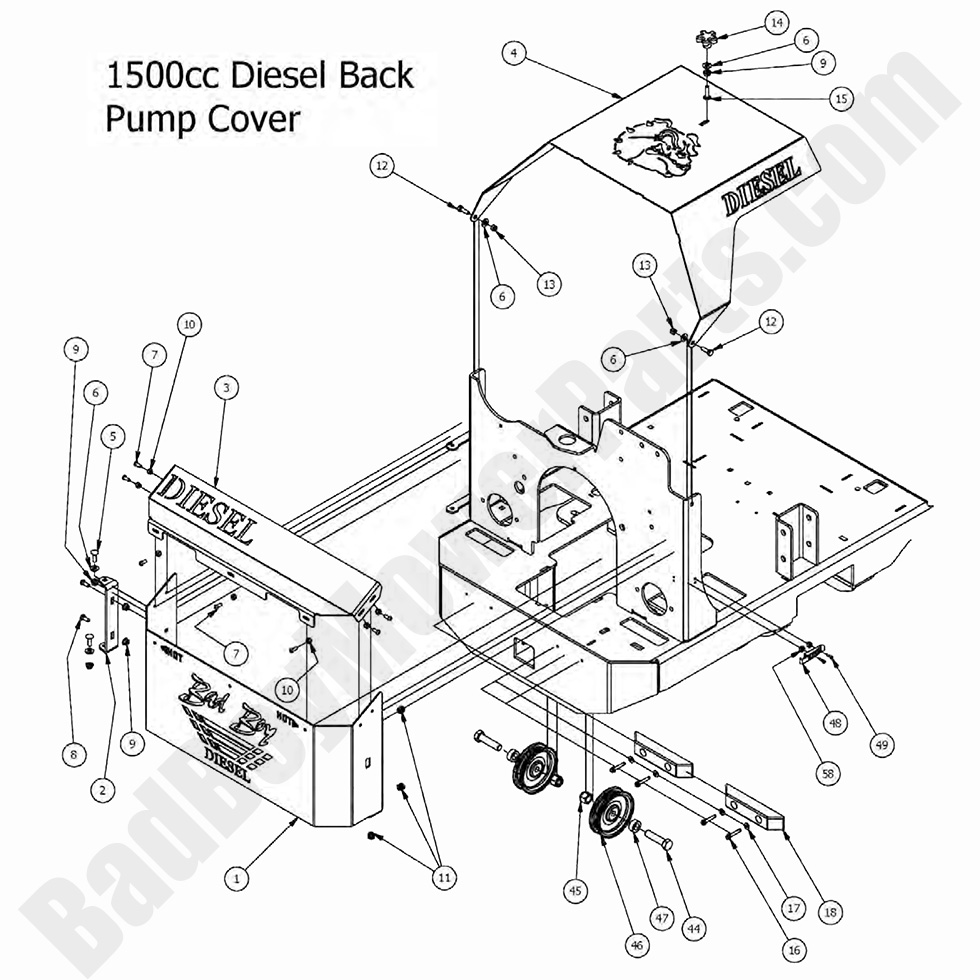

2017 Diesel - 1500cc - Back Pump Cover
  Position Number SKU Product Title Price
1 014-5920-00 014-5920-00 - Diesel Back Pump Cover 2008
$42.79
2 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
3 014-5921-00 014-5921-00 - Diesel Back Pump Cover - Top
$26.75
4 059-8010-00 059-8010-00 - 2008-2020 Diesel Hood 4cyl
$159.99
5 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
8 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
9 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
10 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
11 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
14 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
15 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
16 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
17 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
18 029-7038-00 029-7038-00 - 8 Bumper
$28.32
44 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
45 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
46 033-7025-00 033-7025-00 - 5 V Idler Pulley - BCVI-81 Frame Mounted AOS/Diesel
$28.39
47 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
48 052-3000-00 052-3000-00 - Steel Pump Cover Latch-Diesel 97-60-120-15
$29.95
49 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
58 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
