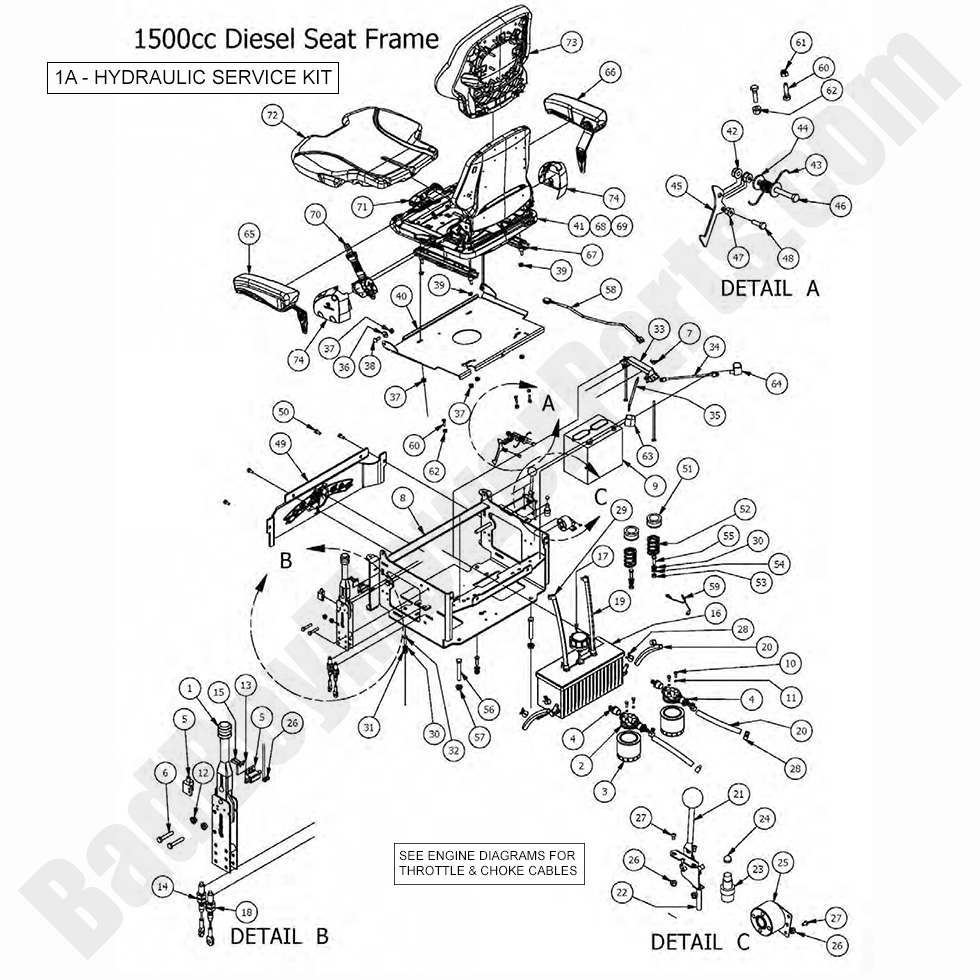

2017 Diesel - 1500cc - Seat Frame

2017 Diesel - 1500cc - Seat Frame

The 2017 Diesel - 1500cc Seat Frame ensures operator comfort and stability, reducing fatigue during long mowing sessions. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including seat frames, cushions, shock absorbers, and mounting hardware to maintain durability and support. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for long-term reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct seat frame components for easy installation. Routine maintenance prevents frame wear, enhances seating stability, and ensures a smooth mowing experience. We stock Bad Boy Parts Online, making it easy to find and order essential parts anytime. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Diesel - 1500cc Seat Frame is now more cost-effective. Order today to enhance operator comfort, ensure durability, and maintain peak mowing efficiency.

Bad Boy Mower Parts Lookup

2017 Diesel - 1500cc - Seat Frame
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 069-8054-00 069-8054-00 - Brake Handle Kit
$119.41
2 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
3 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
4 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
5 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
6 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
7 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
8 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
12 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
13 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
14 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
15 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
17 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
18 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
19 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
20 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
22 055-8018-75 055-8018-75 - Diesel Thottle Cable ONLY
$32.09
23 077-6000-00 077-6000-00 - Momentary Start Switch Preheat Button for Diesel
$21.39
24 014-6000-00 014-6000-00 - Start Switch Boot - Diesel
$6.59
25 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
26 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
27 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
28 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
29 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
30 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
31 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
32 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
33 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
34 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
35 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
36 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
37 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
38 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
40 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
41 071-4055-00 071-4055-00 - Grammer Seat w/Seatbelt Use w/seat with ROPS (obsolete)
use part #071-4055-17
$959.99
43 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
45 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
46 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
47 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
48 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
49 014-2009-00 014-2009-00 - Cooler Cover (See Models Used On For Details)
$117.94
50 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
51 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
52 034-8045-00 034-8045-00 - Seat Spring
$20.49
53 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
54 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
55 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
56 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
57 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
58 070-2005-00 070-2005-00 - Pigtail for a Grammer Seat (See Models Used On For Details)
$42.58
59 064-8081-00 064-8081-00 - Seat Cable
$15.60
60 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
61 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
63 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
64 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
65 071-4051-00 071-4051-00 - Left Armrest Kit-Grammer Seat
$116.70
66 071-4052-00 071-4052-00 - Right Armrest Kit-Grammer Seat
$96.29
67 071-4054-00 071-4054-00 - Seat Rails for Grammer Seat(2)
$109.46
68 071-4050-00 071-4050-00 - Grammer Suspension Seat Use w/o ROPS - Obsolete - USE PART #071-4050-17 (obsolete)
use part #071-4050-17
$759.99
69 071-4060-00 071-4060-00 - Black/Orange Grammer Seat
$1060.21
70 071-4053-00 071-4053-00 - Seat Belt Kit-Grammer Seats (See Models Used On For Details)
$109.99
71 071-4059-00 071-4059-00 - Grey Handle for Grammer Seat
$60.98
73 071-7000-00 071-7000-00 - Back Cushion for 071-4050-00
$145.99
