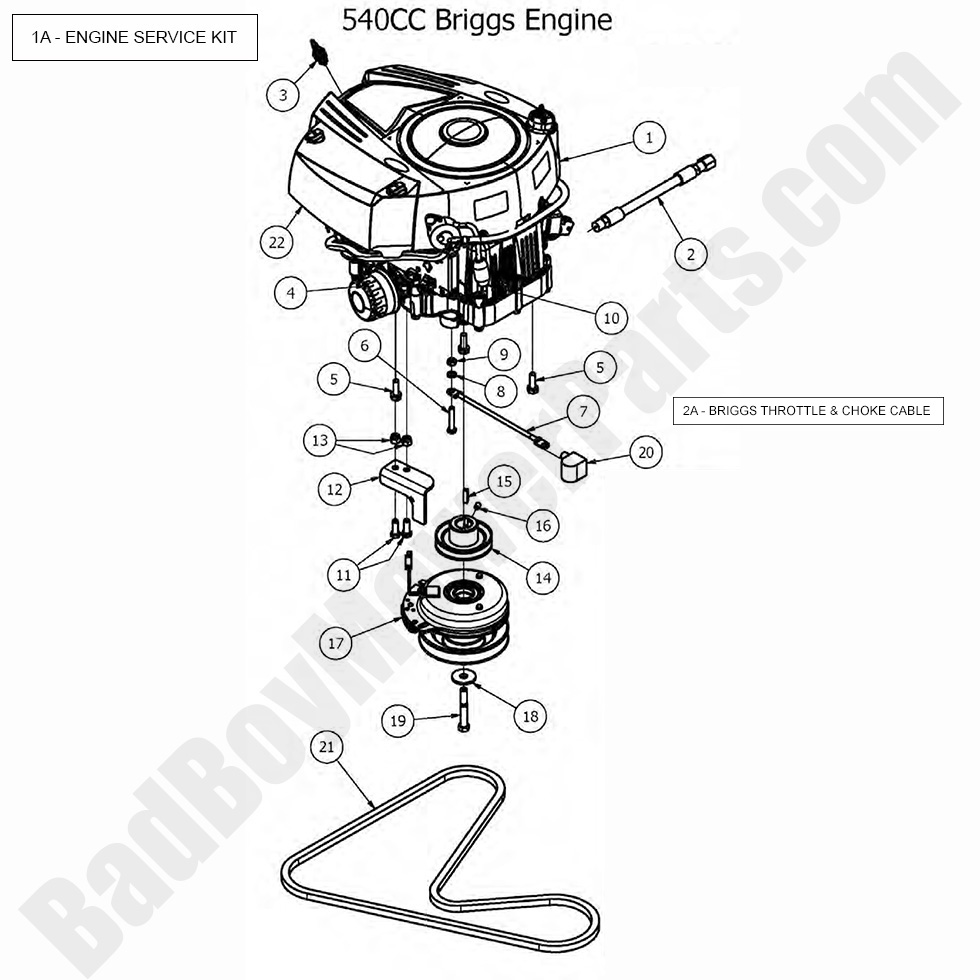

2017 MZ & MZ Magnum - Engine - Briggs 540

2017 MZ & MZ Magnum - Engine - Briggs 540

The 2017 MZ & MZ Magnum Engine - Briggs 540 is a powerful and reliable engine that delivers consistent performance for all your mowing needs. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including air filters, fuel pumps, carburetors, cooling fans, and ignition coils to keep your Briggs engine running smoothly. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct Briggs 540 engine components for simple installation. Routine maintenance prevents engine wear, enhances fuel efficiency, and extends the life of your mower. We also stock Bad Boy Parts Online, making ordering replacement parts fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 MZ & MZ Magnum Engine - Briggs 540 is now more affordable. Order today to keep your mower’s engine running at peak performance.

Bad Boy Mower Parts Lookup

2017 MZ & MZ Magnum - Engine - Briggs 540
  Position Number SKU Product Title Price
1A 063-2000-08 063-2000-08 - MZ Briggs Intek 21HP Engine Service Kit
$94.79
1 015-0021-00 015-0021-00 - 540cc Briggs Intek Engine-MZ
$1799.99
2A 055-3021-00 055-3021-00 - 25" Throttle Cable for Briggs Smart Choke Engines
$48.14
2 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
3 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
4 063-8018-00 063-8018-00 - Oil Filter
$21.39
5 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
6 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
7 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
10 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
11 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
12 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
13 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
14 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
15 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
16 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
17 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 018-0007-00 018-0007-00 - 7/16-20 x 3 Hex C/S GR 8
$2.99
20 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
21 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
22 063-4026-00 063-4026-00 - 21hp Briggs Air Filer and Pre-cleaner - MZ
$39.04
