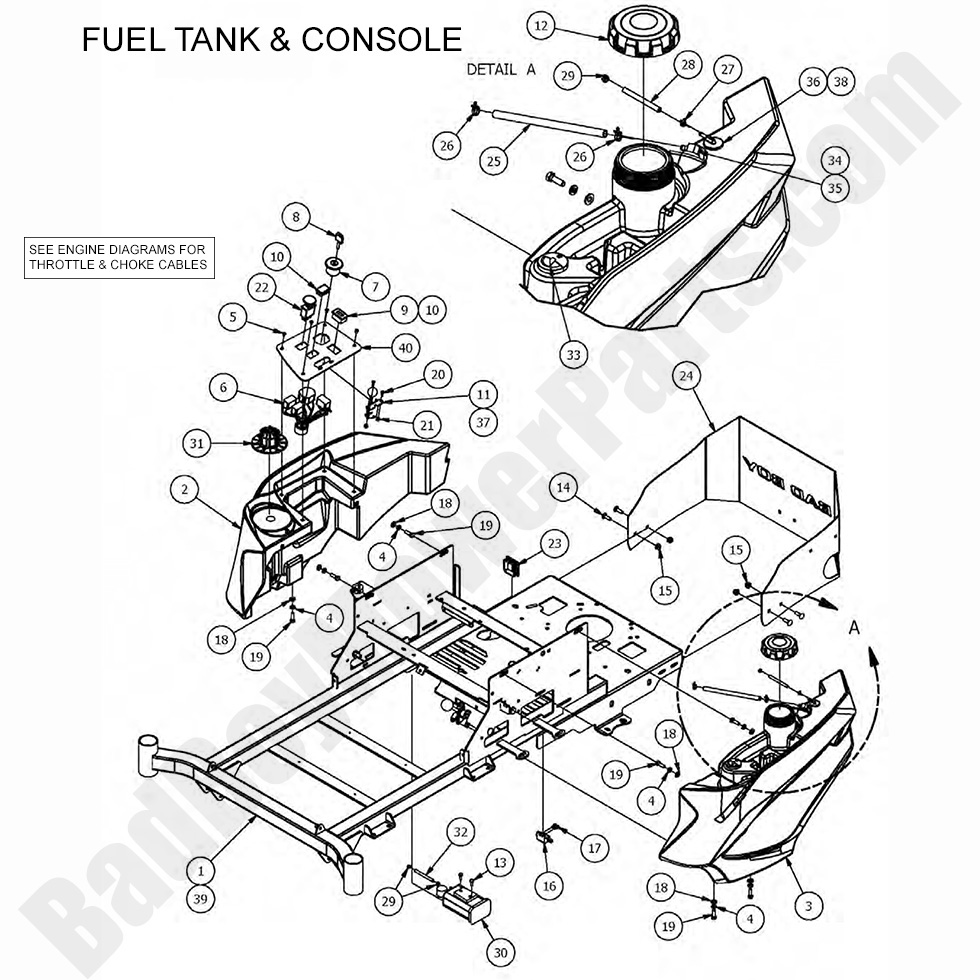

2017 MZ & MZ Magnum - Fuel Tank & Console

2017 MZ & MZ Magnum - Fuel Tank & Console

The 2017 MZ & MZ Magnum Fuel Tank & Console plays a critical role in fuel storage and overall mower operation. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including fuel tanks, fuel lines, gas caps, and control panel accessories for efficient fuel management. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements designed for durability and reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct fuel system components for simple installation. Routine maintenance ensures proper fuel flow, prevents leaks, and optimizes engine performance. We also offer Bad Boy Parts Online, making it easy to order replacement parts when needed. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 MZ & MZ Magnum Fuel Tank & Console is now more cost-effective. Order today to ensure smooth fuel delivery and optimal mower operation.

Bad Boy Mower Parts Lookup

2017 MZ & MZ Magnum - Fuel Tank & Console
  Position Number SKU Product Title Price
1A 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
1 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
2 067-2080-50 067-2080-50 - Right Side Console (See Models Used On For Details)
$228.99
3 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
4 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
5 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
6 086-3050-17 086-3050-17 - 2010-2018 CZT/ZT/Maverick/Comp. Outlaw & 2016-2018 MZ/MZ Magnum Complete Harness
$299.99
7 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
8 042-9000-00 042-9000-00 - Ignition Key
$4.06
9 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
10 018-1040-00 018-1040-00 - Light Plug
$2.99
12 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
13 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
14 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
16 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
17 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
18 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
18 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
20 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
22 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
23 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
24 026-0117-00 026-0117-00 - 2017-2021 MZ Rear Plate
$102.99
25 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
26 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
27 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
28 051-2027-00 051-2027-00 - Clear 3/16" EPA Air Line (Priced Per Foot)
$2.99
29 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
30 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
31 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
32 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
33 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
34 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
35 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
38 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
39 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
40 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
