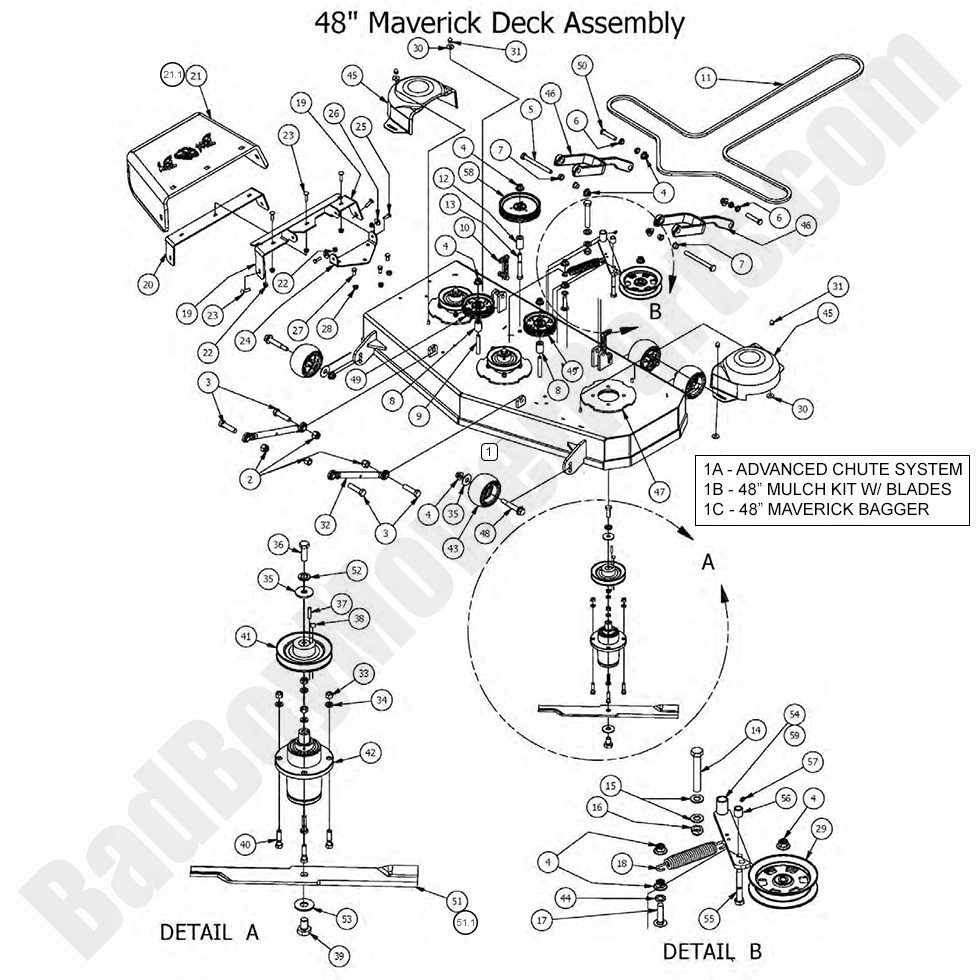

2017 Maverick - 48" Deck Assembly

2017 Maverick - 48" Deck Assembly

The 2017 Maverick 48" Deck Assembly ensures efficient cutting performance and durability for a precise mowing experience. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including deck spindles, cutting blades, pulleys, and deck belts to maintain superior operation. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for durability and smooth cutting performance. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct deck components for simple installation. Routine deck maintenance prevents belt wear, ensures even cutting, and enhances overall efficiency. We stock Bad Boy Parts Online, allowing for easy ordering and fast delivery. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Maverick 48" Deck Assembly is now more budget-friendly. Order today to keep your cutting deck in peak condition for high-performance mowing.

Bad Boy Mower Parts Lookup

2017 Maverick - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1 060-6048-00 060-6048-00 - 2013-2015 CZT, 2014-2016 ZT, 2016-2017 Maverick 48" Deck Shell
$1196.14
2 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
3 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
6 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
7 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
8 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
9 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
10 047-8000-00 047-8000-00 - 2016-2017 Maverick Deck Hanger Chain
$8.74
11 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
12 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
15 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
16 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
17 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
18 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
19 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
20 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
21.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
21 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
22 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
23 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
24 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
25 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
26 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
27 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
28 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
29 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
30 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
31 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
32 048-6060-00 048-6060-00 - CZT/ZT/Maverick/Stand-On Toplink/Turnbuckle (See Models Used On For Details)
$56.77
33 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
34 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
35 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
36 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
37 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
38 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
39 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
40 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
41 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
42 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
43A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
43 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
44 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
45 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
46 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
47 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
48 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
49 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
50 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
51.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
51 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
52 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
53 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
54 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
55 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
56 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
57 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
58 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
59 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
