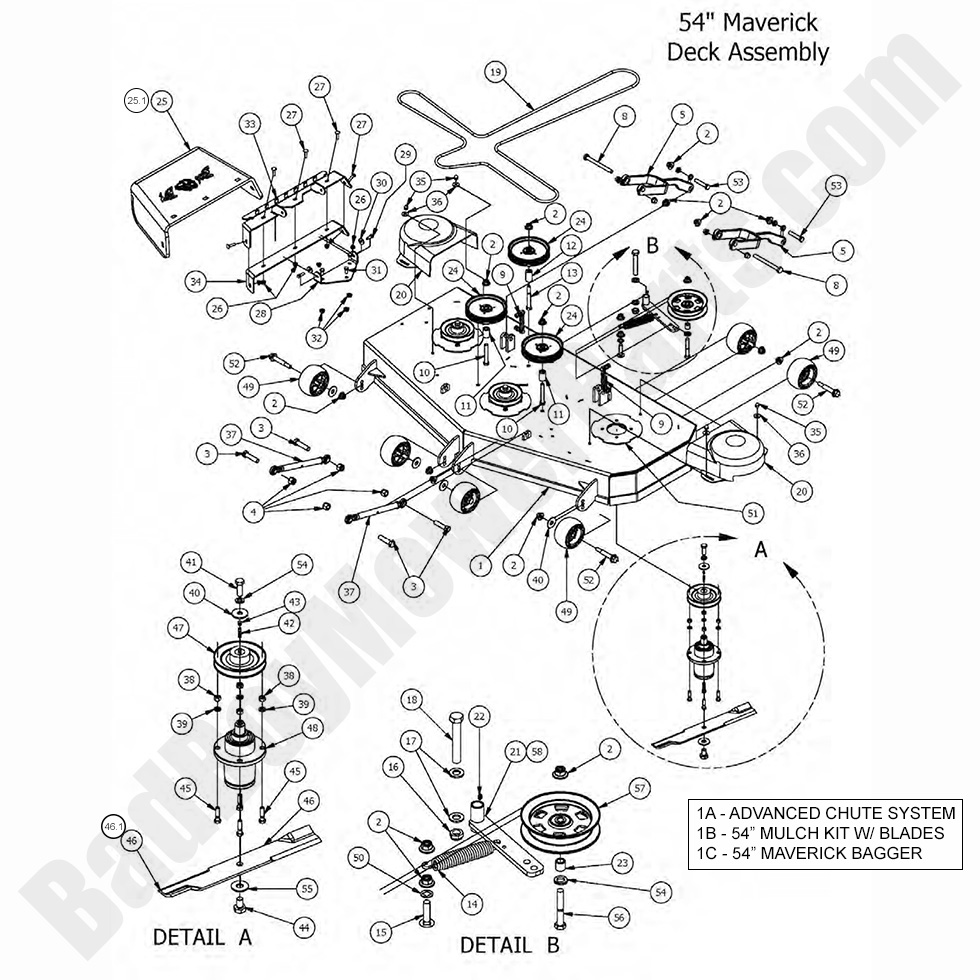

2017 Maverick 54" Deck Assembly

54" Deck Assembly

The Bad Boy Mower 54" Deck Assembly for the 2017 Maverick is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Maverick models as well. Find all of your Bad Boy mowers 2017 Maverick parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Maverick please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Maverick 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2024 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$266.99
1B 210-0354-00 210-0354-00 - 2019-2025 54" Mulch Kit w/Blades (Not for MZ or Avenger)
$340.74
1 060-6054-00 060-6054-00 - 2013-2015 CZT, 2014-2016 ZT, 2016-2017 Maverick 54" Deck Shell
$1279.87
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
5 031-6020-00 031-6020-00 - Deck Hanger-Black - (Replaces 031-5351-00 - 031-5352-00 - 031-6000-00 - 031-6010-00)
$141.97
8 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
9 047-8000-00 047-8000-00 - 2016-2017 Maverick Deck Hanger Chain
$8.74
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
12 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
14 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
15 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
16 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
17 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
18 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
19 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
20 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
21 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
22 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
23 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
24 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings
$35.48
25.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
25 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
26 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
27 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
28 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
29 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
30 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
31 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
32 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
33 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
34 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
35 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
36 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
37 048-6060-00 048-6060-00 - CZT/ZT/Maverick/Stand-On Toplink/Turnbuckle (See Models Used On For Details)
$42.52
38 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
39 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
40 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
41 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
42 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
43 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
44 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
45 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
46.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
46 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
47 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
48 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$213.99
49A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
49 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
50 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
51 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
52 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
53 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt Gr 5
$2.99
54 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
55 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
56 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
57 033-8050-00 033-8050-00 - 2017-2024 5" Split Idler Pulley-Tensioner Only
$35.48
58 039-6945-18 039-6945-18 - 2018-2022 Deck Idler Assembly (See Models Used On For Detail)
$70.97
