2017 Maverick - Adjustable Drive Arm Assembly

2017 Maverick - Adjustable Drive Arm Assembly

The 2017 Maverick Adjustable Drive Arm Assembly is a key component in providing smooth maneuverability and precision control. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including drive arms, bushings, hydraulic linkages, and mounting brackets to maintain responsiveness. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability and long-term reliability. With our Bad Boy Mower Part diagrams, you can quickly find and order the correct drive arm components for seamless installation. Regular maintenance prevents alignment issues, ensures smooth steering, and extends the lifespan of critical components. We offer Bad Boy Parts Online, making ordering fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Maverick Adjustable Drive Arm Assembly is now more affordable. Order today for improved stability, enhanced control, and long-lasting performance.

Bad Boy Mower Parts Lookup

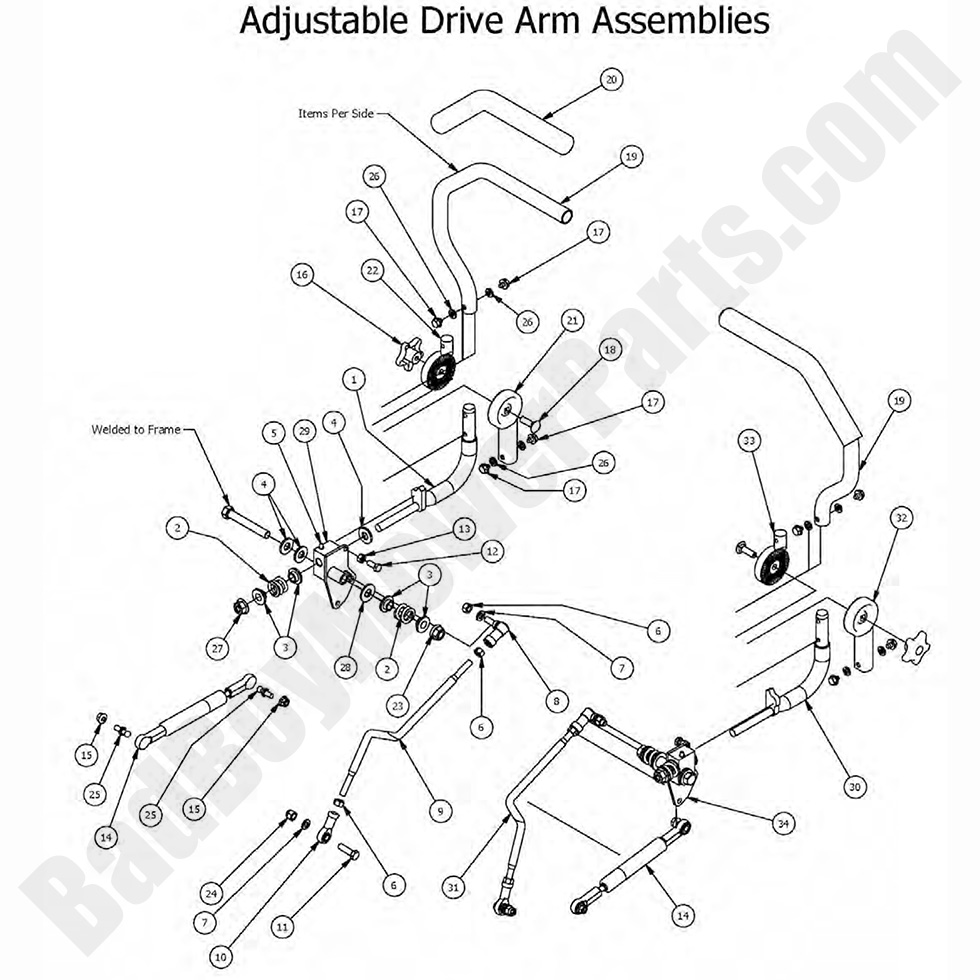

2017 Maverick - Adjustable Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
2 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
7 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
8 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
9 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
10 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
11 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
12 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
13 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
14 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
15 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
16 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
17 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
18 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99

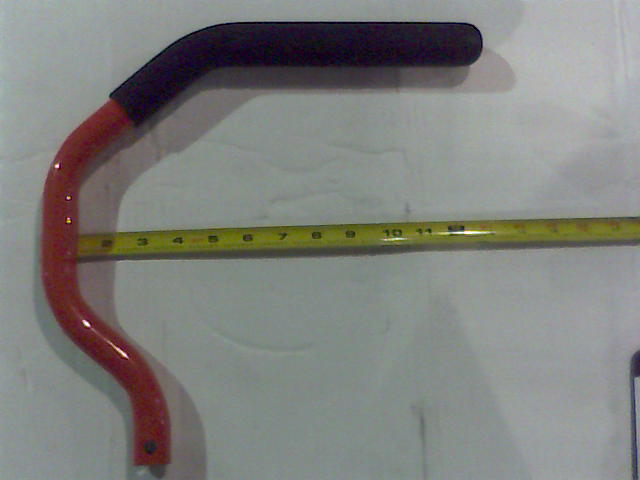

19 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
19a 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
19b 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
20 069-4010-00 069-4010-00 - Black Steering Grip
$8.12

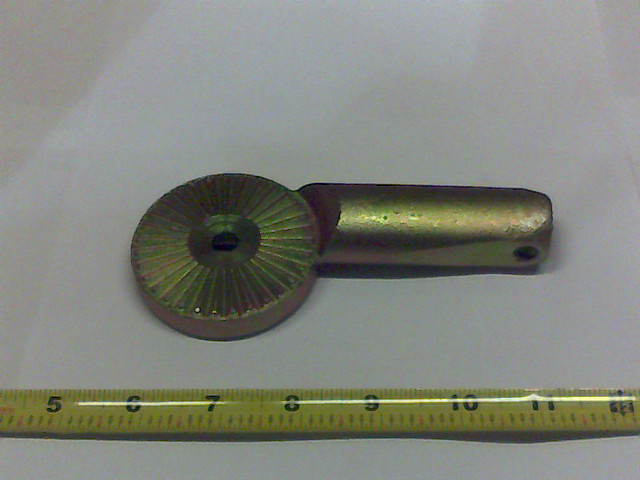

21 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
22 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24

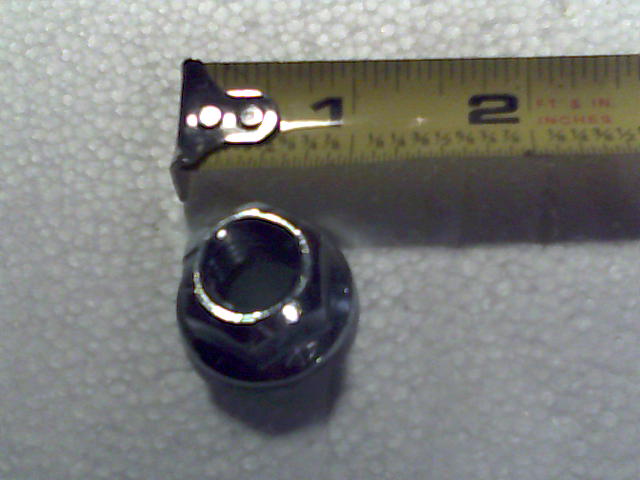

23 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
24 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
25 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
26 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
27 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
28 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
29 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
30 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
31 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95

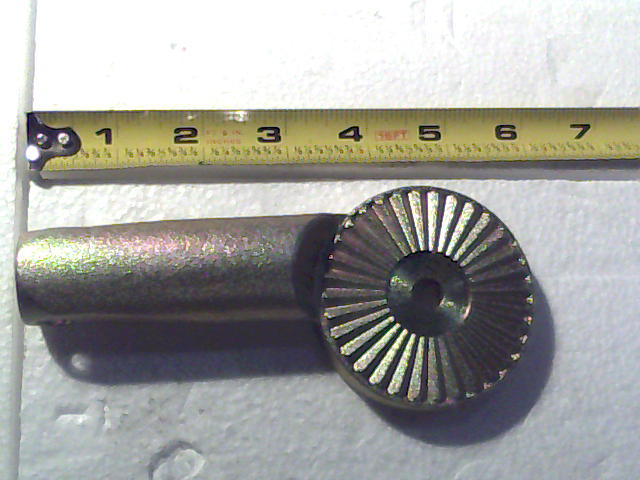

32 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24

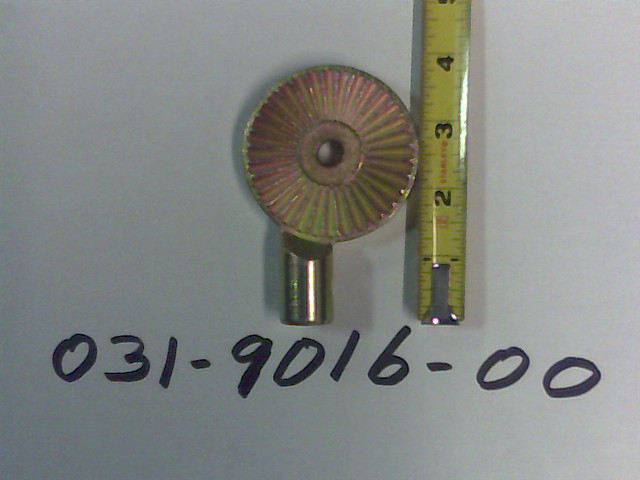

33 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
34 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
