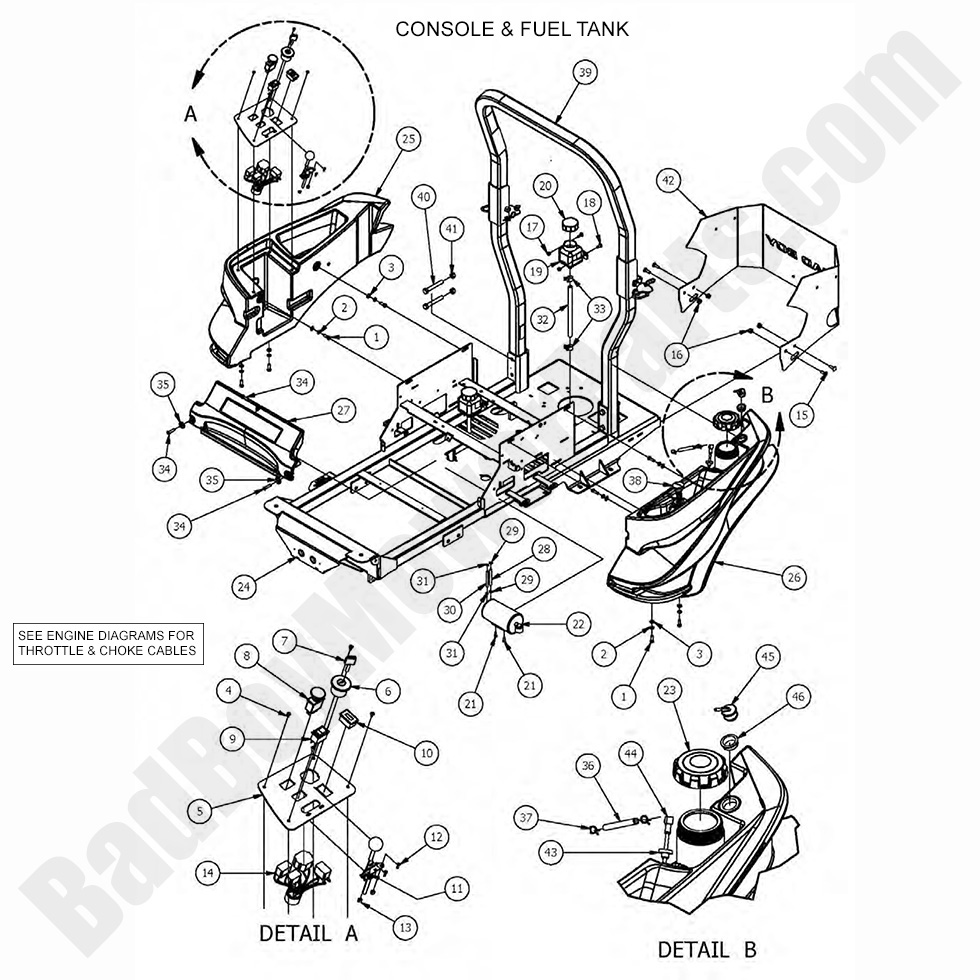

2017 Maverick - Console & Fuel Tank

2017 Maverick - Console & Fuel Tank

The 2017 Maverick Console & Fuel Tank is essential for fuel storage and smooth mower operation. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including fuel tanks, gas caps, fuel lines, and console panels to ensure efficiency. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements built for long-lasting performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct fuel system components for simple installation. Routine maintenance prevents leaks, ensures proper fuel delivery, and keeps control systems functioning efficiently. We also offer Bad Boy Parts Online, making it easy to order replacement parts when needed. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Maverick Console & Fuel Tank is now more cost-effective. Order today to ensure efficient fuel management and smooth mower operation.

Bad Boy Mower Parts Lookup

2017 Maverick - Console & Fuel Tank
  Position Number SKU Product Title Price
1 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
2 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
3 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
4 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
5 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
7 042-9000-00 042-9000-00 - Ignition Key
$4.06
8 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
9 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
10 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
12 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
13 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
14 086-3050-17 086-3050-17 - 2010-2018 CZT/ZT/Maverick/Comp. Outlaw & 2016-2018 MZ/MZ Magnum Complete Harness
$299.99
15 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
18 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
19A 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
19 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
20 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
21 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
22 067-0020-00 067-0020-00 - Carbon Canister
$62.40
23 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
24 070-5490-17 070-5490-17 - 2017 Maverick Frame
$1199.99
25 067-2050-50 067-2050-50 - 2016-2017 Maverick Right Console
$248.99
26 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
27 014-2070-50 014-2070-50 - Maverick Front Cover-Plastic
$58.80
28 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
29 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
29 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
30 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
32 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
33 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
34 018-0031-00 018-0031-00 - 5/16-18 x 1.5 Torx Cutter-Blk
$4.39
35 013-0013-00 013-0013-00 - 1/2 Flat Washer-Flat Black
$2.99
36 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
37 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
38 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
39 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
40 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
41 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
42 026-0090-00 026-0090-00 -Rear Plate (See Models Used On For Details)
$219.99
43 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
44 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
