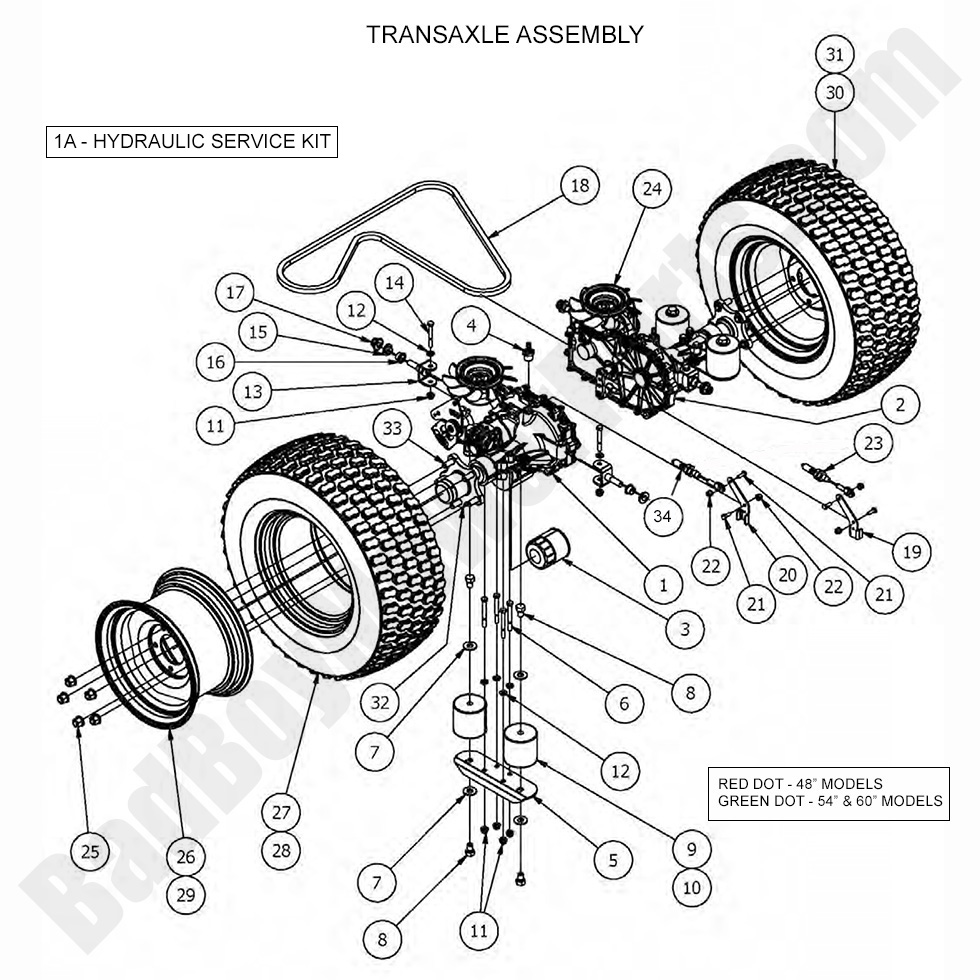

2017 Maverick - Transaxle Assembly

2017 Maverick - Transaxle Assembly

The 2017 Maverick Transaxle Assembly is vital for power transfer, smooth operation, and overall mower performance. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including transaxle housings, hydro pumps, wheel motors, and mounting hardware to ensure maximum efficiency. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for long-term durability. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the correct transaxle components for easy installation. Routine maintenance of the transaxle system prevents power loss, improves maneuverability, and extends the mower’s lifespan. We also provide Bad Boy Parts Online, making ordering necessary parts fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Maverick Transaxle Assembly is now more affordable. Order today to ensure smooth operation, improved efficiency, and long-lasting durability for high-performance mowing.

Bad Boy Mower Parts Lookup

2017 Maverick - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 050-0075-00 050-0075-00 - 3200 Transaxle-EZT - Left (obsolete)
use part #050-0075-02
$799.99
2 050-0080-00 050-0080-00 - 3200 Transaxle-EZT-Right (obsolete)
use part #050-0080-02
$999.99
3 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
4 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
5 039-1306-00 039-1306-00 - EZT Rear Susp Transaxle Mount
$15.60
6 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
7 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
8 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
9 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
10 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
13 039-0001-00 039-0001-00 - Rear Transaxle Pivot Bracket
$15.60
14 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
15 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
16 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
19 039-1321-00 039-1321-00 - Brake Arm Ext Bracket Right Side
$8.01
20 039-1320-00 039-1320-00 - Brake Arm Extension Bracket [Maverick LH]
$6.04
21 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
22 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
23 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
24 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
25 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
26 022-5466-00 022-5466-00 - 12" Black Wheel-2016 & Up Maverick
$136.99
27 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$182.99
28 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$236.99
29 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
30 022-5465-00 022-5465-00 - 23 x 10.50 -12 Black Assy
$319.99
31 022-3010-00 022-3010-00 - 23x8.50-12 Tire Assembly-Black
$247.99
32 050-2077-00 050-2077-00 - 5 Bolt Hub Kit (See Models Used On For Details)
$102.71
33 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
34 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
